Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Specifications
Brand Name :
THD
Model Number :
HD262
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T, Western Union, PayPal, Dragon Pay, L/C
Supply Ability :
5000pcs/month
Delivery Time :
3-7 workdays
Packaging Details :
Standard carton; Out carton size: 98*30*25cm; Inner carton size: 96*23*14cm.
Material :
Rare earth catalytic honeycomb ceramic plate
Fuel :
LPG, NG, Butane, Propane
Dimension :
930*130*175mm
Heat output :
10.9KW; 9360Kcal/h
Advantage :
20% gas saving than non-catalytic infrared gas burner
Technology :
covered with rare earth catalyst on combustion plate
Description

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing

Company profile

Established in 2005, Chongqing Haodong Technology Co., Ltd. is a manufacturer specializing in the research, development and production of infrared catalytic burners. We are in Chongqing city which is located in southwest of China with convenient transportation access.

We have established long term business relation with many customers all over the world due to good quality product, attractive price, timely shipment, perfect after – sale service.

Description

Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.

Specifications

MODEL
Dimension
Weight
Gas Type
Heat Output
Consumption
mm
kg
KW/h
Kcal/hr
NG(m3/h)
LPG(kg/h)
HD61
423*80*94
3.8
NG/LPG
2.4
2030
0.18
0.18
HD82
219*164*108
4.8
NG/LPG
3.1
2700
0.24
0.24
HD101
690*80*115
6.9
NG/LPG
3.9
3380
0.3
0.29
HD162
570*130*175
5.9
NG/LPG
6.3
5400
0.49
0.47
HD410
410*175*220
8
NG/LPG
6.3
5400
0.49
0.47
HD242
840*130*175
7.5
NG/LPG
9.4
8120
0.75
0.71
HD600
600*175*220
11.7
NG/LPG
9.4
8120
0.75
0.71
HD262
930*130*175
7.8
NG/LPG
10.9
9360
0.8
0.82

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing

Material

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing

Oven whole system

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing

Advantages

♦Wide operating range

♦Energy efficient, as high as 20% energy can be saved every year

♦ Conveyor rate: above 95%

♦Reliability, Silent, light and compact

♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm

♦Low maintenance

♦ Withstands high pressure washing

♦Flame-out protection device

♦Long useful time: ≥11000hr

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing

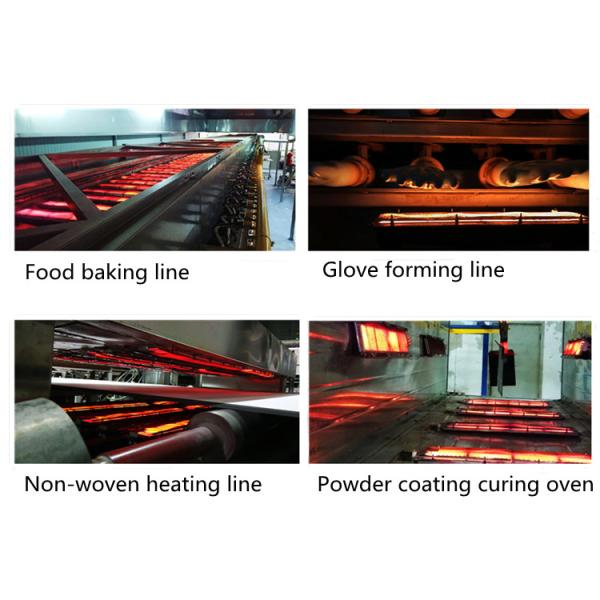

Application

1. Industrial oven: powder coating oven, glove thermoforming line, tunnel oven, curing oven, pre-heat process etc;

2. Food baking oven: Biscuit line, puff food oven, tea drying, vegetable dehydration etc;

3. Glove thermoforming oven: disposable glove(nitrile, latex gloves) process line etc;

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
