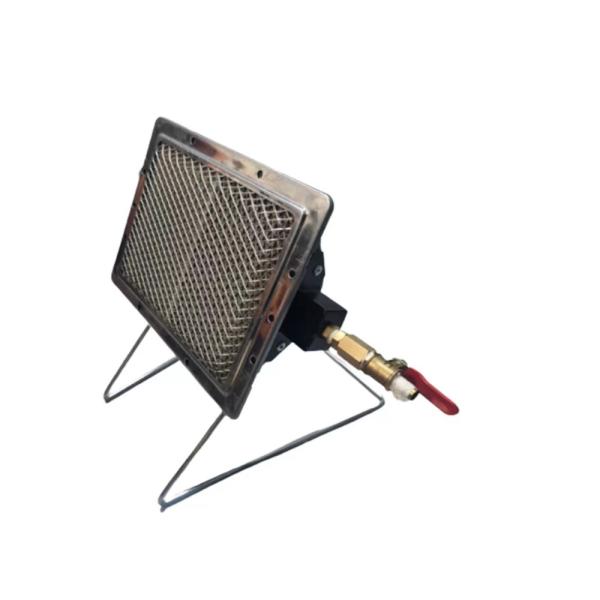

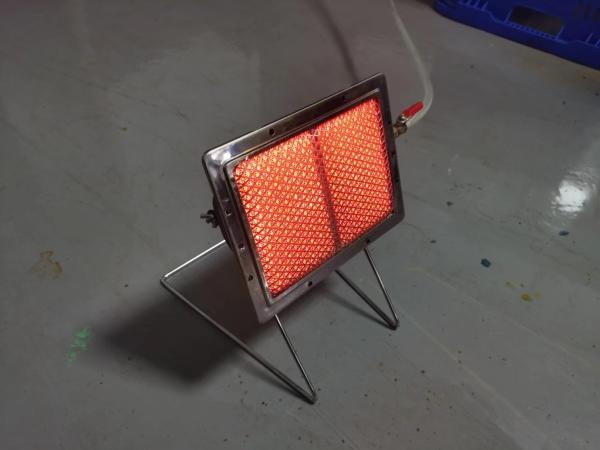

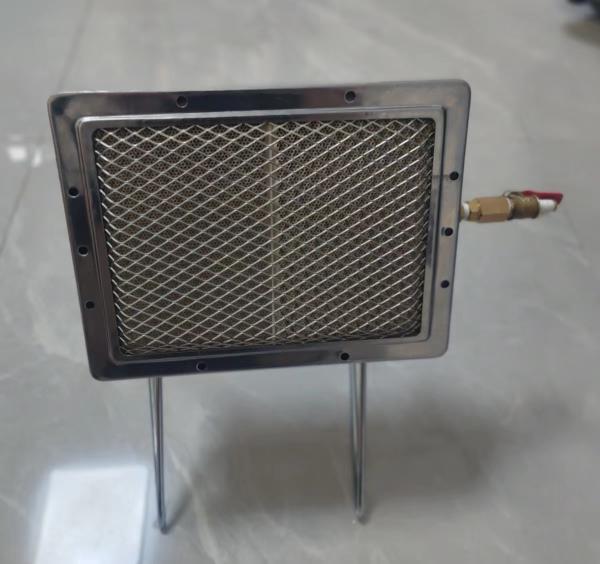

Portable Infrared Heating Natural Gas/LPG Room Heater Gas Heater Indoor THD166

Chongqing Haodong Infrared Gas Burners cover a process rare earth as catalyst, which make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than other common ceramic burner.

Gas Infrared Burner Technical Parameters

1. Kinds of Gas: NG/LPG/Oil Field Gas/Artificial Gas

2. Perfect Combustion Temperature: ≤380℃

3. Heat Source Temperature: 850℃

4. Heating-up Temperature Range: 35℃-500℃

5. Wavelength Range: 4 um -15 um

6. Working Pressure: 2000pa(NG)~~5000pa
2800pa(LPG)~~5000pa

7. Lifetime: more than 11000hrs

8. Waste Gas Emission: CO≤80ppm;NOx≤10ppm;CHx≤50ppm

9. Conversion Rate: > 90%

Gas Infrared Burner Main Material

1. Shell: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass

Gas Infrared Burner Main Specification

Details Images

Infrared Techlogy Feature

1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds.

Company Introduction

Chongqing Haodong Technology Co., Ltd which is found in 2005, is a professional manufacturer of Infrared Catalytic Gas Burner,BBQ Grill Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.

Packing Details

Carton Size: 575*420*470mm

Weight/Carton: 10.5kg

Qty/Carton: 8PCS
