Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V
Specifications
Model Number :
UH-5075-HA
Place of Origin :
China
MOQ :
100meter
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000m/month
Delivery Time :
5~15 workdays
Packaging Details :
Wooden box, size is as customer's qty.
Material :
Carbon steel, A3 steel
Charactor :
Heat resistant
Suspension Spacing :
150mm
Chain's catastrophic pull force :
5 TON
Chain's Weight :
4.58KG
Single-span weight :
45KG
Working temprature :
280 ℃
Chain's allowable pull force :
3000kgf
Application :
Material handling, powder coating line
Voltage :
220/380V
Structure :
Chain Conveyor
Power(w) :
0.9KW~5.5KW
Type :
Roller Chain, conveyor chain
Feature :
Simple Operation,Easy to maintenance,Anti-Corrosion, high efficient
Usage :
Conveying products,Workshops Continual Conveying,Material Transimission
Product Name :
Industrial Overhead Conveyor Chain System For Powder Coating Line
Description

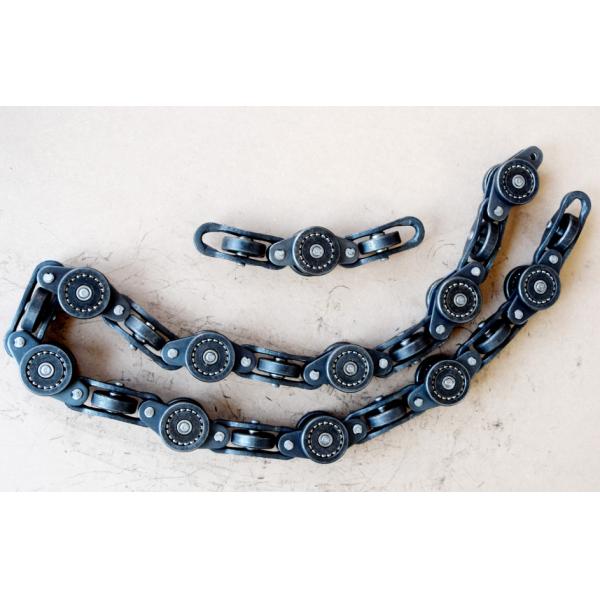

Industrial Overhead Conveyor Chain System For Powder Coating Line UH-5075-HA

UH-5075 overhead trolley conveyor chain which also called 5-Ton conveyor.

It's mainly used for powder coating line, spray painting system, garment/clothes drying, surface treatment system, and other material handling conveyor system.

We also have all spare parts for whole system, such as driver device, take-up deivc/tensioner, straight track, curve track, up-down track/vertical track, check track, flange, oil sprayer, electric cabinet.

According to customers' drawing, we can calculate all need parts for whole system.

Specification of Industrial Overhead Conveyor Chain System For Powder Coating Line H5075

MODEL

ITEM

UH-5075-HA

Heavy-duty chain

Suspension Spacing

(mm)

 150+(150 × N)

Chain's Weight

(kg/m)

5.3

Single-span Weight

(≤kg)

50

Chain's Allowed

Pull Force (≤kgf)

3000

Chain's Catastrophic

Pull Force (≥kgf)

5500

Working temperature

(≤°C)

400
Applicable Equipment

High temperature;

Heavy work piece;

Complicated route;
Material 16# Medium-carbon steel, Steel A3
Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.

Carbon Steel A3 Steel Overhead Conveyor Chain UH-5075-HA Heat Resistant 220V 380V

Other spare parts for Overhead chain conveyor system UH5075

The whole line has many spare parts, such as hanger, straight track, curve track, up-down track, check track, driver device, take-up device, oil sprayer, electric cabinet...

We can calculate all parts qty. according to your conveyor line.

Application of Overhead chain conveyor system UH5075:

Conveyor chain is close-loop continual conveying equipment widely applied for continual convey of various industrial work pieces,

such as surface treatment, powder coating line, paint spraying line, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory, food conveying, material handling.

Warmly welcome to contact us!

Name: Kathy Tang

Skype: tyc9744

Phone, Whatsapp, Wechat: +86 18423473470
