5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room
Specifications
Brand Name :
Brotex Acoustic
Model Number :
5/3mm
Certification :
FSC / ISO / SGS / Intertek
Place of Origin :
China
MOQ :
50㎡
Price :
$31.42 -$47.98 /㎡
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 ㎡/ month
Delivery Time :
2 weeks
Packaging Details :
Carton / Pallet
Pattern :
5/3mm
NRC :
0.85
Finish :
Real Veneer / Laminate / Melamine
Laminate :
Lamitak / Formica / TBC
Core :
Charcoal Board / MDF
Fireproof :
Class B
Fleece :
Soundtex / Standard
Standard panel size :
2440*128mm / 2440*197mm or TBC
Standard core thick :
15mm / 18mm / TBC
Edge option :
Tongue & Grooved
Woodgrain :
Along length / Along width
Application :
Auditorium / Conference hall / School / Office
Description

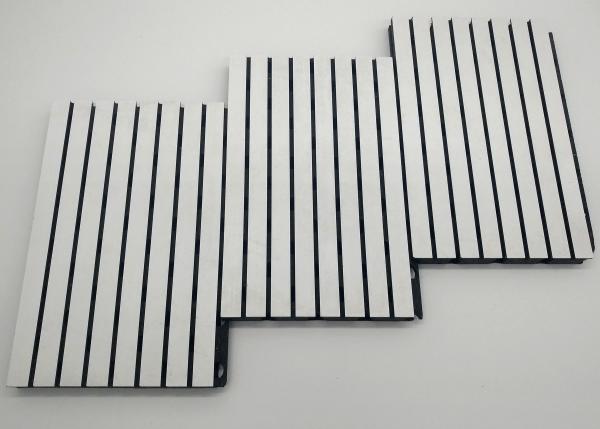

5/3mm High Sound Absorbing Office Meeting Room Timber Linear Acoustic Panel

Grooved acoustic panel in order to achieve a high acoustic absorption coefficient and a beautiful aesthetics .

At the technical level it has a high absorption cofeeicient .

Aesthetically it has a linear design , elegant and discreet , very suitable for acoustic conditionning that requires a high level

Grooved acoustic panel solutions , a clean , linear approach to acoustics .

Profiles are created with 2mm / 3mm / 4mm / 5mm grooves with different spacing options .

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Pattern ​​

5/3mm / 13/3mm / 14/2mm / 28/4mm / TBD

Finish

Real veneer / laminate / melamine

Core

Charcoal board / MDF

Fleece

Soundtex / Standard

Standard panel size

2440*128mm / 2440*197mm / TBD

Standard core thick

15mm / 18mm / TBD

Hole option

Standard

Edge option

Standard tongue & grooved

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .

Edges Tongue & Grooved :

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Sustainability :

FSC certified 70.8% pre-consumer recycled content

Grooved acoustic panel designed for easy assembly and durable use :

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Sound Absorption Data :

NRC = 0.8 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Fire performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Finish :

Avaliable in 16 pure colors & 32 woodgrain options

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room 5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Wall installation info :

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

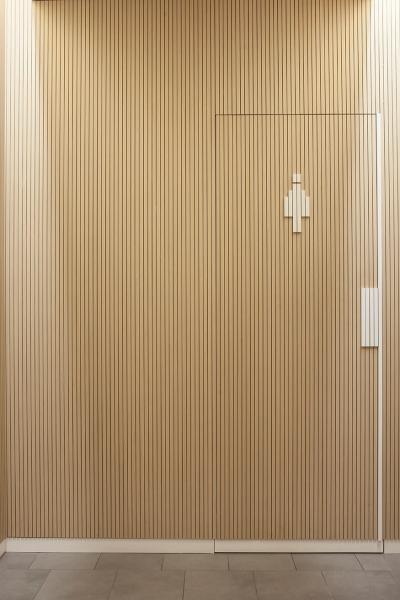

Wall job reference :

5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room 5/3mm High Sound Absorbing Timber Linear Grooved Acoustic Panel for Office Meeting Room

Please kindly contact us for more acoustic panel project inspire ideas .
