FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality
Specifications
Brand Name :
Brotex Acoustic
Model Number :
28/4mm
Certification :
FSC / ISO / SGS / Intertek
Place of Origin :
China
MOQ :
50㎡
Price :
$27.42 -$39.98 /㎡
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 ㎡/ month
Delivery Time :
2 weeks
Packaging Details :
Carton / Pallet
Pattern :
28/4mm
Finish :
Real Veneer / Laminate / Melamine
Laminate :
Lamitak / Formica / TBC
Core :
Charcoal Board / MDF
Fireproof :
Class B
Fleece :
Soundtex / Standard
Standard panel size :
2440*128mm / 2440*197mm or TBC
Standard core thick :
15mm / 18mm / TBC
Edge option :
Tongue & Grooved
Woodgrain :
Along length / Along width
Installation :
Wall / Ceiling
Application :
Auditorium / Conference hall / School / Office
Description

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Linear wood panel is a type of panel that changes the ceiling and wall appearance in a space in the most modern way .

One of the most important features of these panels is that they can be applied horizontally or vertically depending on the area to be used .

You can change all the properities of the panel according to the area to be used in linear wood panels and the need for use .

They are wooden panels that can be used both on walls and ceilings .

It can be assembled as a single whole or can be specially assembled separately .When applied separately , it creates a simple living space in the space as well as makes the volume in enviromental appear wider .

Pattern ​​

5/3mm / 9/2mm /14/2mm / 28/4mm TBD

Finish

Real veneer / laminate / melamine

Core

Charcoal board / MDF

Fleece

Soundtex / Standard

Standard panel size

2440*128mm / 2440*197mm / TBD

Standard core thick

15mm / 18mm / TBD

Hole option

Standard

Edge option

Standard tongue & grooved

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .

Edges Tongue & Grooved :

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Sustainability :

FSC certified 70.8% pre-consumer recycled content

Acoustic Performance :

NRC = 0.8 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

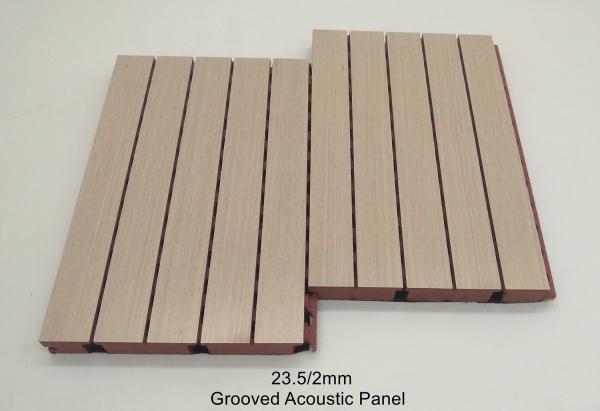

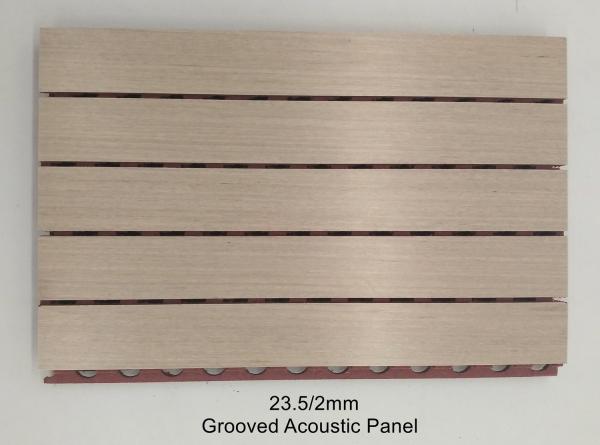

Grooved acoustic panel designed for easy assembly and durable use :

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Fire performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Finish :

Avaliable in 16 pure colors & 32 woodgrain options

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Wall installation info :

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

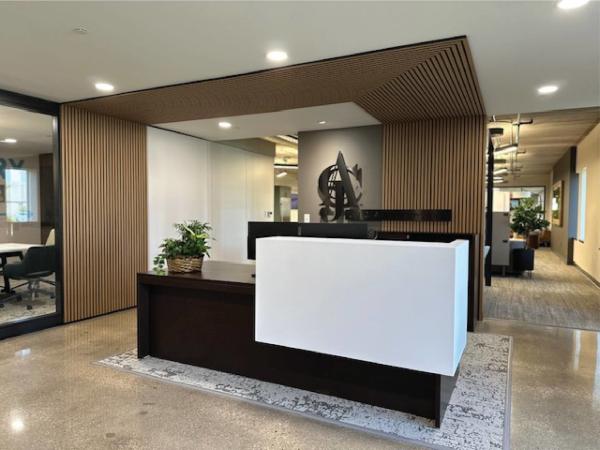

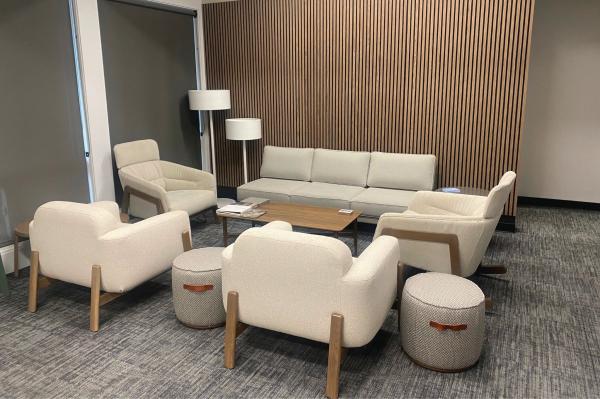

Wall job reference :

FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality FSC Eco-friendly Natural Oak Acoustic Wood Veneer Slat Wall Panels Luxury Quality

Please kindly contact us for more acoustic panel project inspire ideas .
