Perforated panels are the most economical way to get an acoustic treatment with a high defree of absorption .

With several variations of patterns and hole diameters , different levels of absorption and aesthetic can be achieved .

and it offer a high degree of sound absorption and a wide range of decorative finishes .

Micro perforated come in 3 standard patterns :

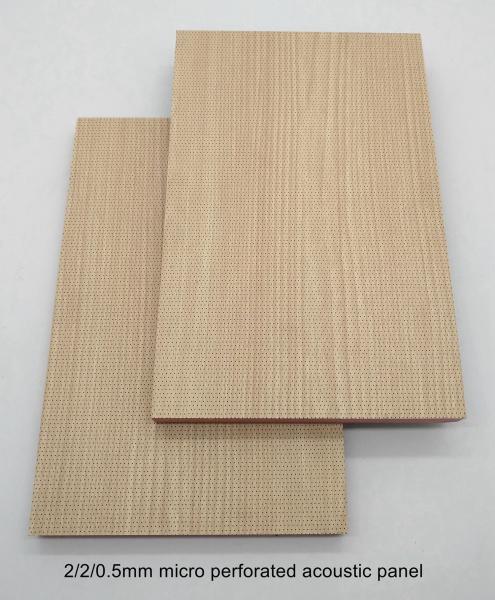

① 1.8/1.8/0.5mm ② 2/2/0.5mm ③ 3/3/0.5mm

Advantage of micro perforated acoustic panel :

• The absolutely top product in our range

• ideal for all materials and surfaces

• Almost invisible acoustic material with high absorption

• Very aesthetic and functional

• Up to 600'000 holes every m² possible

• Mildew and termite resistant

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized .

Sustainability :

FSC certified 70.8% pre-consumer recycled content

Acoustic Performance :

NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fire performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

Wood veneer :

The panel can be customized in a variety of wood veneers.

Brotex Acoustic lays up its own veneer in 12 units as the standard items .

More slip-matched , custom lay-up options and a control sample match all are avaliable .

Ceiling micro perforated acoustic panel job reference :

Please kindly contact us for more acoustic panel project inspire ideas .
