14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels
Specifications
Brand Name :
Brotex Acoustic
Model Number :
14/2mm
Certification :
FSC / ISO / SGS / Intertek
Place of Origin :
China
MOQ :
50㎡
Price :
$25.42 -$37.98 /㎡
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 ㎡/ month
Delivery Time :
2 weeks
Packaging Details :
Carton / Pallet
Pattern :
14/2mm
Finish :
Real Veneer / Laminate / Melamine
Laminate :
Lamitak / Formica / TBC
Core :
Charcoal Board / MDF
Fireproof :
Class B
Fleece :
Soundtex / Standard
Standard panel size :
2440*128mm / 2440*197mm or TBC
Standard core thick :
15mm / 18mm / TBC
Edge option :
Tongue & Grooved
Woodgrain :
Along length / Along width
Installation :
Wall / Ceiling
Application :
Auditorium / Conference hall / School / Office
Description

Acoustic wood grooved acoustic panels are high-performance acoustical products that offer both superior sound absorption and an exceptional visual apearance .

These wood grooved acoustic panels are meticulously engineered to enhance sound quality by reducing noise and echo in any space .

With the elegant grooved design , it not only provide excellent acoustical performance but also add a sophisticated and stylish touch to interiors . Ideal for use in offices , stuidos , conference rooms and public areas , wood grooved acoustic panels seamlessly blend functionality with aesthetic appeal , making it a perfect choice fro modern architectural design .

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

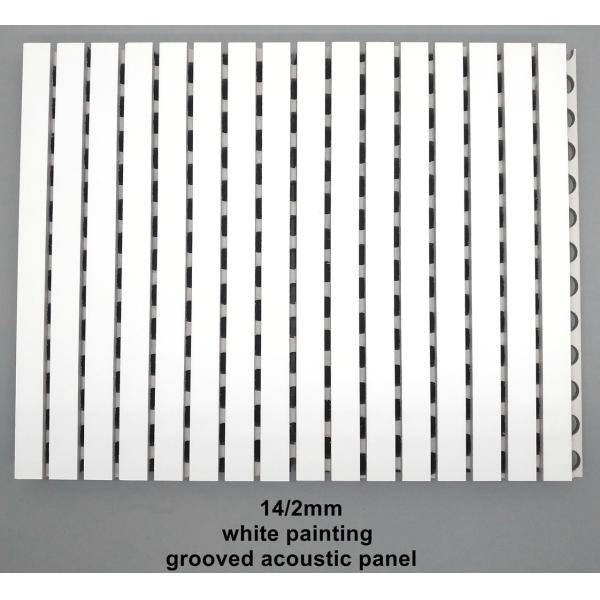

Pattern ​​

5/3mm / 9/2mm /14/2mm / 28/4mm TBD

Finish

Real veneer / laminate / melamine

Core

Charcoal board / MDF

Fleece

Soundtex / Standard

Standard panel size

2440*128mm / 2440*197mm / TBD

Standard core thick

15mm / 18mm / TBD

Hole option

Standard

Edge option

Standard tongue & grooved

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .

Edges Tongue & Grooved :

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Sustainability :

FSC certified 70.8% pre-consumer recycled content

Acoustic Performance :

NRC = 0.8 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Grooved acoustic panel designed for easy assembly and durable use :

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Fire performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Finish :

Avaliable laminate chosen from Formica brand or other brands .

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Wall installation info :

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels 14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

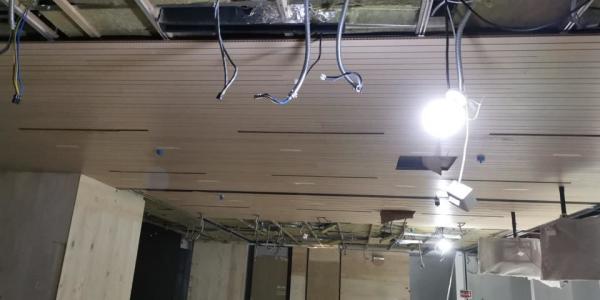

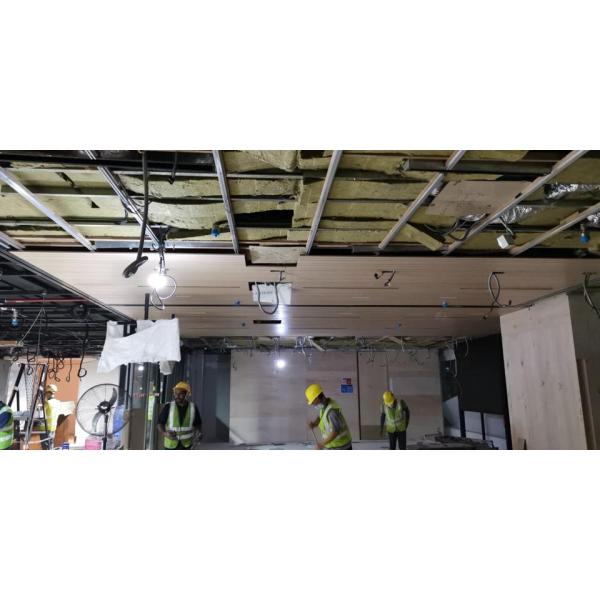

Ceiling job reference :

14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels 14/2mm Office Ceiling Tiles Hall Sound Absorbing Fireproof Grooved Acoustic Wall Panels

Please kindly contact us for more acoustic panel project inspire ideas .
