Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels
Specifications
Brand Name :
Brotex Acoustic
Model Number :
Aluminum Micro
Certification :
CE / ISO / SGS / Intertek
Place of Origin :
China
MOQ :
50㎡
Price :
$70.42 -$85.98 /㎡
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 ㎡/ month
Delivery Time :
2-3 weeks
Packaging Details :
Carton / Pallet
Pattern :
Aluminum micro hole
Finish :
PVDF Powder coating
Color :
RAL or Customized woodgrain
Core :
Aluminum
Fireproof :
Non-combustible
Fleece :
Soundtex / Standard
Standard panel size :
1200*600mm / 2400*1200mm / TBC
Standard core thick :
25mm / 50mm / TBC
Hole design :
Standard
Edge option :
For wall or ceiling
Woodgrain :
Along length / Along width
Application :
Auditorium / Conference hall / School / Office
Description

Aluminum perforated panel is a type of perforated metal panel that is made from high-quality aluminum sheets .

The aluminum sheets are punched with a series of small holes to create a pattern , allowing air and light to pass through ,

This creates a decorative metal panel that is a both functional and visually appealing .

The unique metal ceiling & wall panels are stage-of-the-art micro perforated aluminum sound absorber board that reduce echo and sound relections .

It have an elegantly smooth appearance ,with an excellent NRC rating of 1 which test by the reverberatiion room .

Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels

Product Aluminum micro perforated acoustic panel
Pattern Standard micro-hole
Finish RAL color / Woodgrain / Stone color / Brass / TBD
Coating PVDF
Coating brand PPG / AKZO / NIPPON / DNT / TBD
Core Non-combustible aluminum
Panel size Standard 1200*600mm / 2400*1200mm / TBD
Panel thickness 25mm / 50mm / TBD
Hole options Standard micro hole
Edge options For wall / ceiling
Woodgrain Along length / width
Border

Standard / non-perforated / TBD

Features :

Smooth surface finish
Excellent NRC rating 1 when used as a lay-in ceiling tile , no acoustical liner needed
Cost - effective Tegular of flat lay-in ceiling tiles easily installa standard grid
Tested and proven to achieve are avaliable after delivery
Woodgrain Available in anodized or custom printing finish

Sound Absorption Coefficient :

Based on ISO 354:2003 Acoustics - Measurement of Sound Absorption in a Reverberation Room the NRC = 1

Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels

Fireproof performance :

Available Test based on EN13501-1:2018

Fire classification of construction products and building elements -

Part 1 : Classification using data from reaction to fire tests result fire classification A1

Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels

Color finish options :

Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels

Ceiling installation info :

Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels

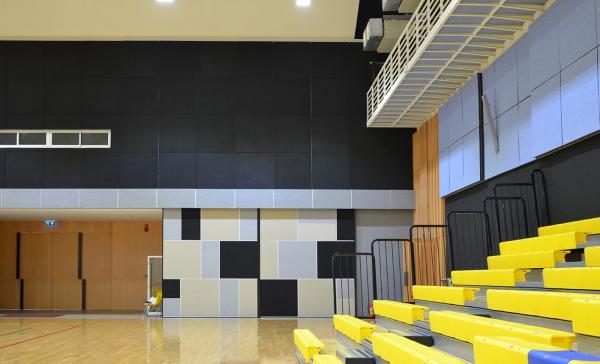

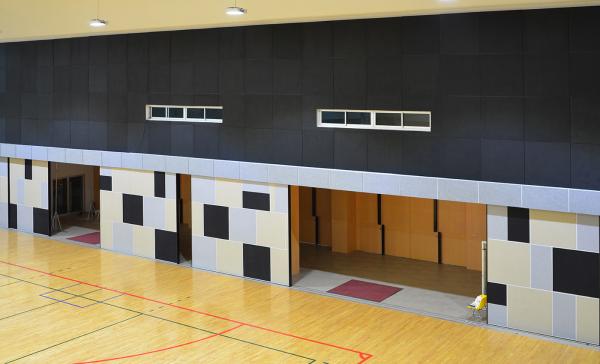

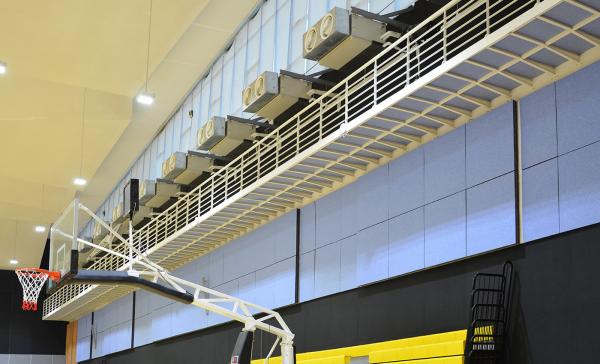

Aluminum micro perforated acoustic panel job reference :

Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels Ceiling Tile RAL7021 Black PVDF Microperforated Aluminium Composite Soundproofing Panels

FAQ :

Q: How do you clean aluminum perforated panels?

Cleaning aluminum perforated panels is a simple process. You can use a mild detergent solution and a soft-bristled brush or a soft cloth to remove dirt and stains. Avoid using abrasive cleaners or wire brushes as they can scratch the surface of the panel.

Q: Can aluminum perforated panels be recycled?

Yes, aluminum perforated panels are recyclable. Aluminum is a highly recyclable material, and it can be melted down and used to make new products.

More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
