For the acoustic panel there are no limits but your imagination .

Application for interiors require 1.beauty 2.durability 3.cost-effectiveness

The acoustic panel will help you to combine breathtakingly beautiful interiors together with high sound absorption .

With a wide array of styles and finishes to choose from ,

you can achieve the space you are envisioned for based on your project budget .

As an architect or designer , freshness of design can be a distinct competitive advantage .

About the grooved acoustic panel in order to achieve a high acoustic absorption coefficient and a beautiful aesthetics .

At the technical level it has a high absorption cofeeicient .

Aesthetically it has a linear design , elegant and discreet , very suitable for acoustic conditionning that requires a high level

Grooved acoustic panel solutions , a clean , linear approach to acoustics .

Profiles are created with 2mm , 3mm and 4mm grooves with different spacing options .

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .

Edges Tongue & Grooved :

Sustainability :

FSC certified 70.8% pre-consumer recycled content

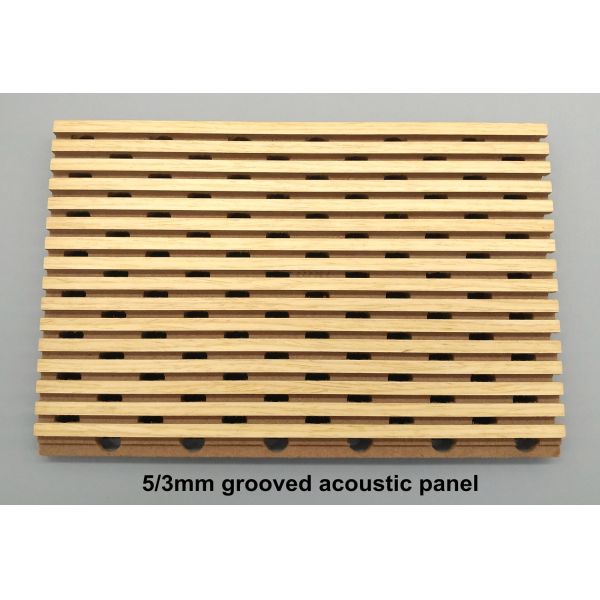

Acoustic Performance (5/3mm) :

NRC = 0.85 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

Grooved acoustic panel designed for easy assembly and durable use :

Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fire performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

Finish :

Avaliable in 16 pure colors & 32 woodgrain options

Wall installation info :

Wall job reference :

Please kindly contact us for more acoustic panel project inspire ideas .
