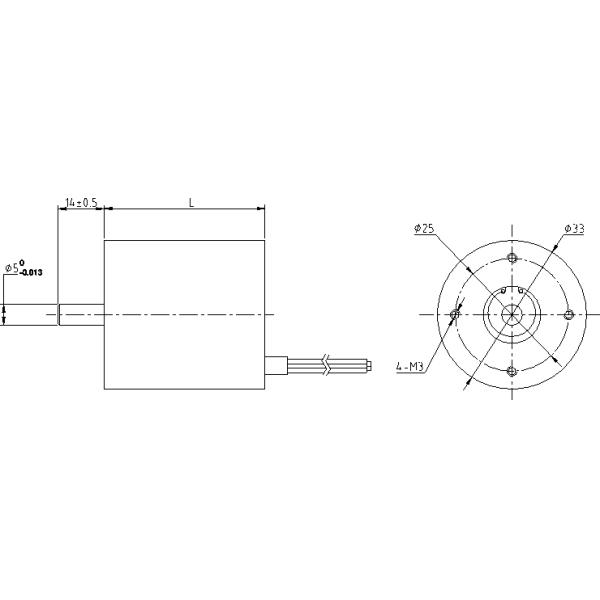

Length 36mm 11.8mN.m 0.1 Kg Brushless DC Electric Motor
Length 36mm 11.8mN.m 0.1 Kg Brushless DC Electric Motor
Specifications
Brand Name :
OEM
Certification :
CE/ISO/ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
25000pc/month
Delivery Time :
15-25days
Packaging Details :
with export carton
Winding type :
YWE
Hall effect angle :
120 Deg. Electrical angle
Radial play :
0.02mm @450g
End play :
0.08mm@450g
Max. radial force :
15N @ 10mm from the flange
Max. axial force :
10N
Insulation class :
B
Insulation resistance :
100MΩ min., 500VDC
Description

Length 36mm 11.8mN.m 0.1 Kg Brushless DC Electric Motor

General specification

Winding type

YWE

Hall effect angle

120 Deg. Electrical angle

Radial play

0.02mm @450g

End play

0.08mm@450g

Max. radial force

15N @ 10mm from the flange

Max. axial force

10N

Insulation class

B

Dielectric strength

500VDC for one minute

Insulation resistance

100MΩ min., 500VDC


Performance Data

Model

Units

33ZW3Y36A150

33ZW3Y36A200

33ZW3Y3612200

Number of poles

　

4

Number of phase

　

3

Rated voltage

VDC

24

24

12

Rated speed

RPM

15000

20000

20000

Continuous stall torque

mN.m

14.16

14.16

14.16

Rated torque

mN.m

11.8

11.8

11.8

Rated power

W

18.5

25

25

Peak torque

N.m

35.4

35.4

35.4

Peak current

A

3

4.05

8.1

Torque constant

Nm/A

11.8×10-3

9×10-3

4.5×10-3

Back E.M.F

V/KRPM

1.5

1.09

0.54

Rotor inertia

g.c㎡

2.33

2.33

2.33

Body length

mm

36

Voltage range

VDC

12~24

Speed Range

RPM

4000~22000

Weight

Kg

0.1

0.1

0.1



Description

Brushless DC Motors are widely used in such varied applications as office equipment, pumps, textile machines and much more.

Customization Options

Custom Shaft & Mounting Details:
All motors can be supplied on request with single or double ended shafts, shorter and longer shafts, as well as many other modifications.Custom Flanges and other mounting details can also be considered.

Encoders:
All motors can be supplied on request with a variety of encoder options and resolutions.

Brakes:
All motors can be supplied with electro-magnetic parking brake, with or without hand release.

Cable Harness:
All motors can be supplied on request with custom cable harness and/or special lead-wires with or without connectors


Length 36mm 11.8mN.m 0.1 Kg Brushless DC Electric Motor
