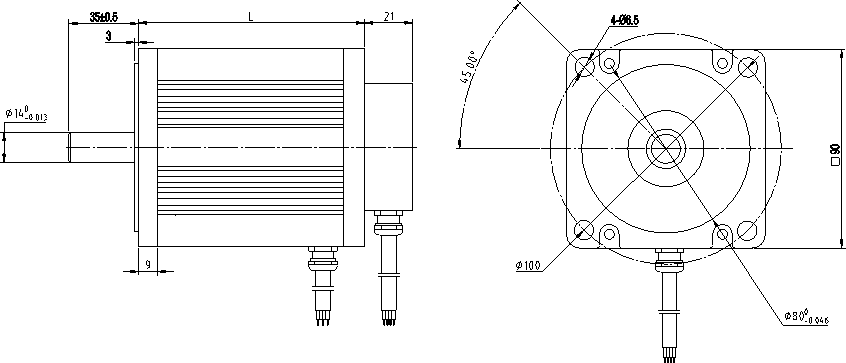

48VDC 3000 RPM Max Radial Force 220N Brushless E Motor
48VDC 3000 RPM Max Radial Force 220N Brushless E Motor
Specifications
Brand Name :
OEM
Certification :
CE/ISO/ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
25000pc/month
Delivery Time :
15-25days
Packaging Details :
with export carton
Winding type :
YWE
Hall effect angle :
120 Deg. Electrical angle
Radial play :
0.02mm/460g
End play :
0.08mm/450g
Max. radial force :
220N @ 20mm from the flange
Max. axial force :
60N
Insulation class :
B
Insulation resistance :
100MΩ min., 500VDC
Description

48VDC 3000 RPM Max Radial Force 220N Brushless E Motor

General specification

Winding type YWE
Hall effect angle 120 Deg. Electrical angle
Radial play 0.02mm/460g
End play 0.08mm/450g
Max. radial force 220N @ 20mm from the flange
Max. axial force 60N
Insulation class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ min., 500VDC

Performance Data

Model Units

90ZW3S

681230

90ZW3S

75A30

90ZW3S

88C10

90ZW3S

88C30

90ZW3S

108C10

90ZW3S

108C30

90ZW3S

136E10

90ZW3S

136E30
Number of poles 　 8
Number of phase 　 3
Rated voltage VDC 12 24 48 48 48 48 310
Rated speed RPM 3000 3000 1000 3000 1000 3000 1000 3000
Continuous stall torque N.m 0.6 0.8 1 1 1.9 1.9 3 3
Rated torque N.m 0.5 0.7 0.85 0.85 1.7 1.7 2.5 2.5
Rated power W 157 220 89 267 178 534 262 785
Peak torque N.m 1.5 2.1 2.55 2.55 5.1 5.1 7.5 7.5
Peak current A 50.4 70.5 7.9 21.4 16.9 42.8 4 9.7
Torque constant Nm/A 0.03 0.03 0.324 0.119 0.302 0.119 1.89 0.77
Back E.M.F V/KRPM 3.15 3.15 34.3 12.6 32 12.6 200 81.5
Rotor inertia Kg.c㎡ 0.6 0.8 1.2 1.2 1.8 1.8 2.65 2.65
Body length mm 68 75 88 88 108 108 136 136
Voltage range VDC 12~90 12~170 24～310 24～310 24～310 24～310 24～310 24～310
Speed Range RPM 1000～3000
Weight Kg 1.4 1.7 2.1 2.1 2.6 2.6 4.1 4.1

Description

Brushless DC Motors are widely used in such varied applications as office equipment, pumps, textile machines and much more.

Application:

  • solar project
  • automobile
  • communication
  • inkjet printer
  • pump
  • medical blower
  • security

48VDC 3000 RPM Max Radial Force 220N Brushless E Motor

Customization Options

Custom Shaft & Mounting Details:

All motors can be supplied on request with single or double ended shafts, shorter and longer shafts, as well as many other modifications. Custom Flanges and other mounting details can also be considered.

Encoders:

All motors can be supplied on request with a variety of encoder options and resolutions.

Brakes:

All motors can be supplied with electro-magnetic parking brake, with or without hand release.

Cable Harness:

All motors can be supplied on request with custom cable harness and/or special lead-wires with or without connectors
