24V Permanent Magnet Brushless DC Motor
24V Permanent Magnet Brushless DC Motor
Specifications
Brand Name :
OEM
Certification :
CE/ISO/ROHS
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
15-25days
Packaging Details :
with export carton
Price :
Negotiable
Supply Ability :
25000pc/month
Power Output Range :
250 to 600 watts
Speed Range :
up to 9,000rpm
Operational Temperature :
-20°C to +40°C
Insulation Class :
F(consult us for class B)
Bear Type :
High quality ball bearings
Housing Type :
110mm
Description

24V Permanent Magnet Brushless DC Motor

General specification

Voltage Range

24v dc (220v also available)

Power Output Range

250 to 600 watts

Speed Range

up to 9,000rpm

Operational Temperature

-20°C to +40°C

Insulation Class

F(consult us for class B)

Bear Type

High quality ball bearings

Housing Type

Closed(ventilated also available)

Performance Data

Part Number

Voltage

Rated Power

Rated Speed

Rated Torque

Rated Current

No load Current

No load Speed

Length

Units

V

W

rpm

Nm

A

A

rpm

mm

110ZYT200-12V

12

283

2700

1

34.6

4.9

3270

200

110ZYT200-24V

24

514

3070

1.6

26

2.6

3350

200

110ZYT200-48v

48

553

3300

1.6

14.3

2.5

3300

200

Description

Hybrid permanent magnet DC motor are widely used in rotary pumps, clay pigeon traps, electric vehicles, golf carts, hoists, winches and a multitude of other applications

Customization Options

Brake:

All permanent magnet DC motors can be supplied with a choice of 12 or 24V parking brake. An optional manual brake release is also available.

Encode:

permanent magnet motors can be supplied with a variety of encode types and resolutions.

Custom shaft:

All permanent magnet DC motors are available to order with a wide selection of custom shaft configurations.

Applications:
  • solar
  • automobile
  • communication
  • inkjet printer
  • pump
  • medical
  • blower
  • security

24V Permanent Magnet Brushless DC Motor

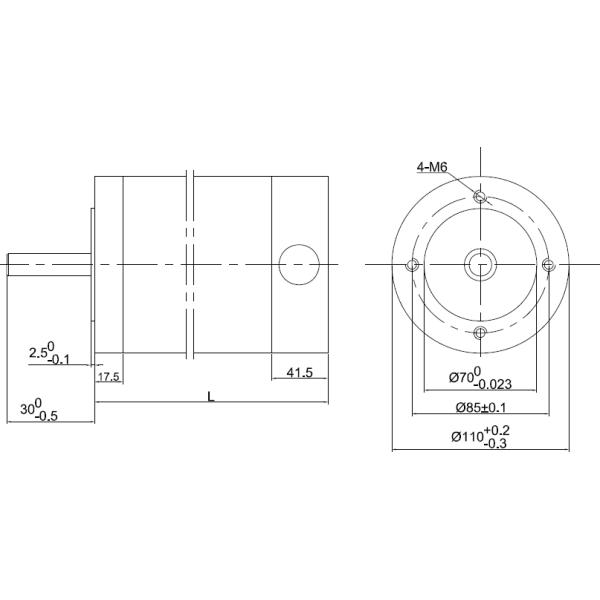

Dimensions in mm
