67Nm Permanent Magnet Brushless DC Motor
67Nm Permanent Magnet Brushless DC Motor
Specifications
Brand Name :
OEM
Certification :
CE/ISO/ROHS
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Delivery Time :
15-25days
Packaging Details :
with export carton
Price :
Negotiable
Supply Ability :
25000pc/month
Voltage Range :
12 & 24v dc (240v also available)
Power Output Range :
15 to 40 watts
Speed Range :
up to 10,000rpm
Operational Temperature :
-20°C to +40°C
Insulation Class :
F(consult us for class B)
Housing Type :
Closed(ventilated also available)
Description

67Nm Permanent Magnet Brushless DC Motor

General specification

Voltage Range

12 & 24v dc (240v also available)

Power Output Range

15 to 40 watts

Speed Range

up to 10,000rpm

Operational Temperature

-20°C to +40°C

Insulation Class

F(consult us for class B)

Bear Type

High quality ball bearings

Housing Type

Closed(ventilated also available)

Performance Data

Part Number

Voltage

Rated Power

Rated Speed

Rated Torque

Rated Current

No load Speed

Length

Units

V

W

rpm

Nm

A

rpm

mm

40ZYT56-12V

12

17

4950

33

1.8

6000

56

40ZYT61-12V

12

23

5100

43

2.39

6100

61

40ZYT78-12V

12

29

5000

67

2.92

5000

78

40ZYT56-24V

24

17

4950

33

0.89

6100

56

40ZYT61-24V

24

23

5100

43

1.17

6100

61

40ZYT78-24V

24

29

4200

67

1.46

5000

78

Description

Hybrid permanent magnet DC motor are widely used in rotary pumps, clay pigeon traps, electric vehicles, golf carts, hoists, winches and a multitude of other applications

Customization Options

Brake:

All permanent magnet DC motors can be supplied with a choice of 12 or 24V parking brake. An optional manual brake release is also available.

Encode:

permanent magnet motors can be supplied with a variety of encode types and resolutions.

Custom shaft:

All permanent magnet DC motors are available to order with a wide selection of custom shaft configurations.

Applications:

  • solar
  • automobile
  • communication
  • inkjet printer
  • pump
  • medical
  • blower
  • security

67Nm Permanent Magnet Brushless DC Motor

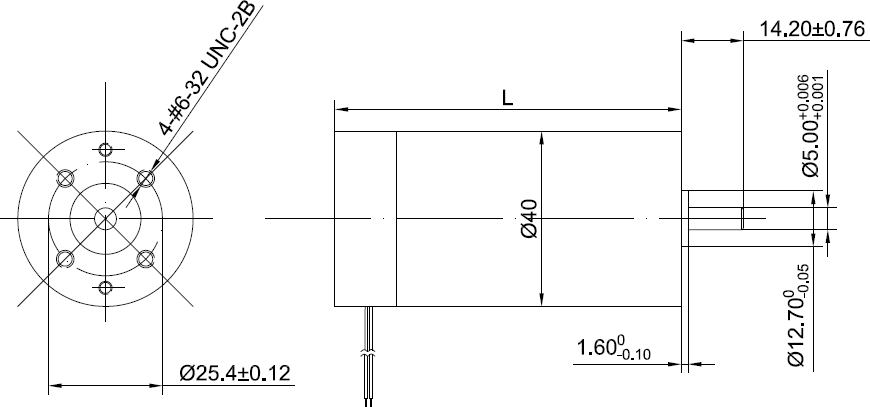

Dimensions in mm
