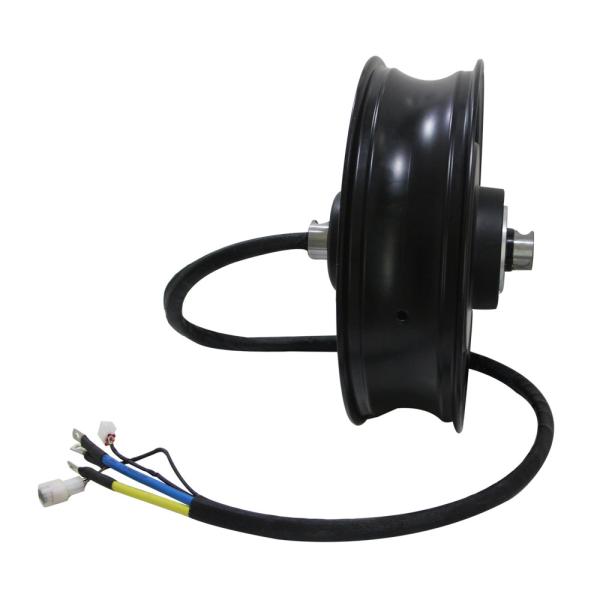

14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor
14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor
14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor
14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor
14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor
14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE/ISO/ROHS
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
with export carton
Delivery Time :
15-25days
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
25000pc/month
Warranty :
Provide
Voltage(V) :
48v-96v
Rated Power :
14000W
Usage :
electric scooter
Rim Size :
17inch
Efficiency :
85~92%
Speed :
140-170kph
Color :
Black
Description

14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor

Product Description

For 17inch E-Scooter wheel hub motor, it could be used for electric scooter, electric motorcycle.

Feature

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Specification

  • Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
  • Motor Design: Double axle with 17inch moped rim (integrated)
  • Rim size:17x4.5inch
  • Magnet Height: 70mm, 16 pole pairs
  • Stator: Aluminum Core
  • Rated Power: 14000W
  • Speed(customizable): 140-170KM/H(Optional)
  • Kv:14.5(Optional)
  • Max Torque approx 350N.m
  • Thermic Probe: KTY83-122 (as default, optional)
  • Max Efficiency approx 88%
  • Drop-outs: 280mm
  • Dual Halls with waterproof connectos(One for spare, in case of damage)
  • Waterproof Grade: IP54
  • Color: Silver & Black

14000W E Scooter Wheel Hub 17 Inch Water Cooled BLDC Motor

How to Recommend you suitable motors?

Firstly, To customize a suitable electric hub motor for your vehicle, could you please inform the points in below?

1. E-bike, E-scooter, E-tricycle or E-car?

2. Weight of vehicle with battery, loading weight (weight with load only)?

3. Tire model/diameter?

4. Rated voltage and wattage of motor, nominal speed/top speed, and climb angle or torque @ what speed?

5. Battery nominal voltage, peak voltage, capacity and vehicle range?

6. What's the drop-outs/rear fork width of your frame?

Within your details information, we could make assessment and calculation accordingly for your project
