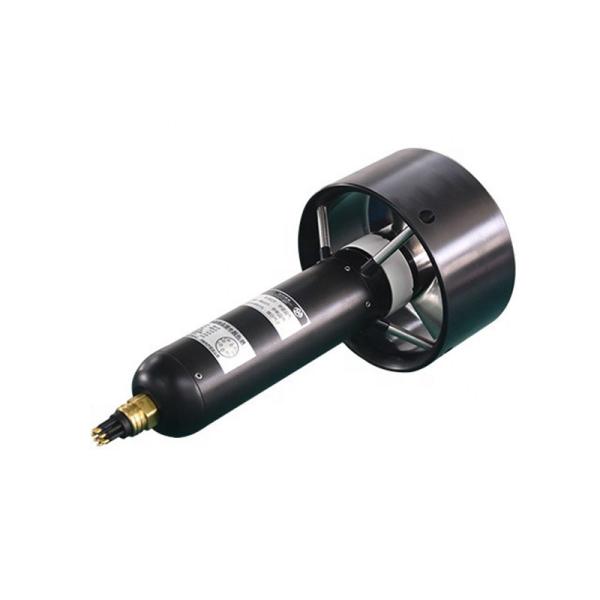

Leakless 1KW 2500 RPM Underwater Brushless DC Motor
Leakless 1KW 2500 RPM Underwater Brushless DC Motor
Leakless 1KW 2500 RPM Underwater Brushless DC Motor
Leakless 1KW 2500 RPM Underwater Brushless DC Motor
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE/ISO/ROHS
Supply Ability :
25000pc/month
Packaging Details :
with export carton
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
15-25days
Payment Terms :
L/C, T/T, Western Union, Paypal
Type :
Micro Motor
Construction :
Permanent Magnet
Commutation :
Brushless
Protect Feature :
Totally Enclosed
Speed(RPM) :
2500r/m
Signal power :
supply voltage 12VDC (±5%), ≤250mA
Control mode :
analog voltage control/CAN
Material of propeller :
SS
Housing :
Aluminum alloy & Titanium alloy
Max depth :
full ocean depth
Description
Leakless 1KW 2500 RPM Underwater Brushless DC Motor
Product Description
Working life
1,000+ Hours
Voltage
48VDC 60VDC 75VDC 90VDC 120VDC 150VDC 200VDC 240VDC 300VDC
Power
1KW
Application
ROV/ AUV/ Submersible
Max RPM
2500
Thrust
15kg forward; 15kg reverse
Nozzle
black
Propeller handing
left &right
Material of propeller
SS
Housing
Aluminum alloy & Titanium alloy
Seal
Leakless, magnetically coupled
Depth rating
0-850/1500/3000/6000m/full ocean depth
Signal power
Supply voltage is 12VDC(±5%), ≤ 250mA
Control made
analog voltage control(0V~+5V forward,0V~-5V reverse); CAN

Our updates

1. Our thruster adopt magnetically coupled drive technology, is the one that magnet array fitted inside the propeller hub is driven by the one attached inside the housing of the thruster, so as to realize non-contact and leak-free transmission of torque. Compared to traditional rigid coupling, magnetically coupling technology can solve principally the problem of leak-easy by eliminating rotary shaft and shaft seal.

2. We have installed power isolation, over current protection and over temperature protection for the built-in drivers. A ramp linear processing is performed on the control signal. These two upgrades allow the thruster to switch directions frequently and quickly. And voltage fluctuations +-15% will not cause any harm to the thruster. Makes the thruster has long-life.

3. Not only we have capacity from R&D to produce, but also we have professional test pool, which simulate real marine environment, adding sand and shells, one-time charging for thrusters, uninterruptible power supply, running at full power for more than 1,000 hours, success rate reaches 100%.

Leakless 1KW 2500 RPM Underwater Brushless DC Motor
Our Service

1. Warranty time is one year
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. Supporting factory visiting and production inspection

5. Before delivery, we will testing products to ensure its stable performance
