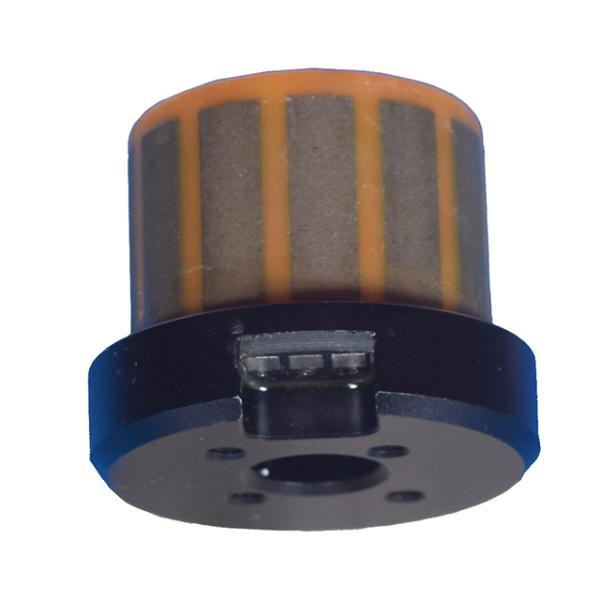

15A Underwater Brushless DC Motor
15A Underwater Brushless DC Motor
15A Underwater Brushless DC Motor
15A Underwater Brushless DC Motor
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE/ISO/ROHS
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
with export carton
Delivery Time :
15-25days
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
25000pc/month
Usage :
ROV/underwater drone/robot
Protect Feature :
Waterproof
KV value :
350
Slot & Pole :
12N14P
Shaft Diameter :
3 mm
Bearing :
EZO Stainless Steel
External Size :
35.5 mm x 49 mm
Weight :
138 g
Description

15A Underwater Brushless DC Motor

Product Description

The Underwater motor is new designed brushless motor with features specifically for Underwater Robot/ Remote Operated Vehicle (ROV).

Underwater motors, as core components, have strict requirements on water-proof, anti-corrosion, water resistance, etc. As one of earliest manufacturers developing underwater motor in China, we have ripe experience on designing and producing underwater products(we provide OEM service), and reliable experimental data. We haven’t received any complaints about the quality of our underwater motors from our customers yet.

Features:

  • Weight:By using Aluminium Alloy 6061-T651 on bell, its weight becomes lighter with higher tensile strenth.
  • Bearing:There are there different Japanese bearings for you to choose.(EZO/NSK/NMB)
  • Shaft:Hollow SUS420 Stainless Steel brings higher tensile strength with lighter weight.
  • Potting:Using unique technique of pottiing to provide outstanding waterproof performance. We have obtained National utility model patent certificate.
  • Durability:Enough to handle pressure under 200 m of water.

Specification:

KV Value 350 Voltage 24 - 36 V
Max Current(A) 15 Motor Core Japanese Kawasaki Silicone Steel (Thicknes0.2mm)
Max Power(W) 400 Magnet NdFeB N48H
Weight(g) 138g Slot & Pole Distribution 12N14P
Shaft Diameter(mm) 3 Bearing EZO Stainless Steel
External Size(mm) 35.5*49 Appearance Craft

Hard Anodizing

Technical Features

24V

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
Sumax2820 24~36 24 7080 0.3 542 3540 13.5 201 1079 25A

36V

Model Voltage(V) No Load Rated Load Stall
Operating Range Rated Speed (rpm) Current (A) Torque (mNm) Speed (rpm) Current (A) Output P. (W) Torque (mNm) Current (A)
Sumax2820 24~36 36 10560 1 724 4631 16 400W 1650 35A

15A Underwater Brushless DC Motor

Product show:

15A Underwater Brushless DC Motor

15A Underwater Brushless DC Motor
