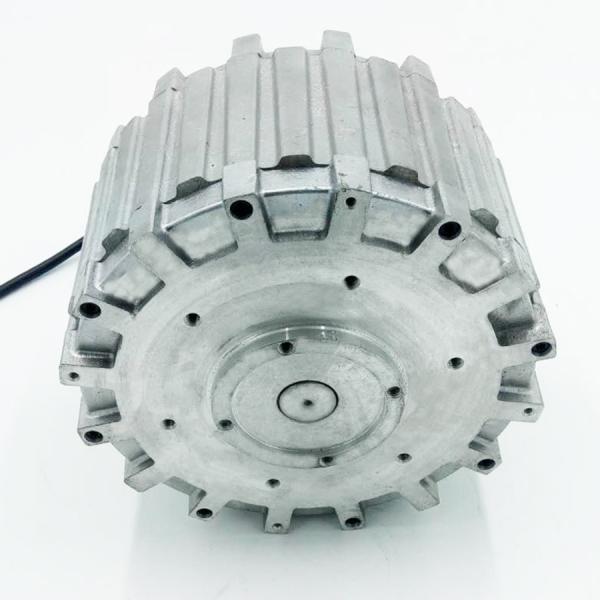

F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
Specifications
Place of Origin :
China
Brand Name :
OEM
Certification :
CE/ISO/ROHS
Supply Ability :
25000pc/month
Packaging Details :
with export carton
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
15-25days
Payment Terms :
L/C, T/T, Western Union, Paypal
Voltage(V) :
220V
Output Power :
1.5 KW
Torque :
140 N.m
Protect Feature :
Totally Enclosed
Speed(RPM) :
150 rpm
Continuous Current(A) :
6 A
Application :
Big ceiling fan
Rated Voltage :
3
Description
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor

The motor parameters:

The Rated Voltage:
DC315V
The rated torque:
140 N.m
The rated power:
1500 W
The noise:
60 dB
Rated speed:
150 rpm
The highest speed:
300 rpm
Pretection grade:
IP56
Operation mode:
S1
Insulation grade:
F
Vibration:
1.0 mm/s
Net weight:
25.2 kg
Grosss weight:
31.6 kg

The Big ceiling fan Data sheet as below:
Model Number
Voltage(V)
Power(W)
Speed
(RPM)
Blade
Diameter
(meter)
Air Volume(m³/min)
Noise
Blade Quantity(Piece)
Weight
(Kg)
PMSM330-735
220/380
1560
50
7.35
13185
40
6
158.15
PMSM330-675
220/380
1152
55
6.75
12862
40
6
152.75
PMSM330-625
220/380
1000
60
6.25
12261
40
6
148.25
PMSM330-550
220/380
800
65
5.5
11963
40
6
141.5
PMSM330-520
220/380
750
70
5.2
11175
40
6
138.8
PMSM255-470
220
700
75
4.7
7075
40
6
103.4
PMSM255-420
220
530
80
4.2
5213
40
6
99.8
PMSM255-360
220
410
95
3.6
3326
40
6
93.8
PMSM255-220
220
330
115
2.2
1669
40
6
81.8

Application:

Animal husbandry: large farms, livestock farms, breeding industry.
Sports industry: gymnasium, gymnasium, sports training hall, training room.
Recreation: large playground, animal botanical garden, children's playground.
Transportation hub: airport, high-speed railway station, bus station, subway station, pier.
Business places: exhibition center, 4S shop, large professional products market, large shopping malls and supermarkets.
Other types: front office, villa, canteen, museum, large outdoor commercial activity lease.
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor

Features and advantages:

1. Brushless motor has no spark.
2. The service life is over 50,000 hours
3. High efficiency, large power, small volume, light weight.
4. Good starting and speed adjustment.
5. Energy saving: 35%- 50%.
6. The explosion-proof type
7. Low noise, Just 60 decibels
8. Without reduction gearbox,No oil leakage, no maintenance costs
F Insulation Grade 220V 1.5 KW Outer Rotor Brushless DC Motor
