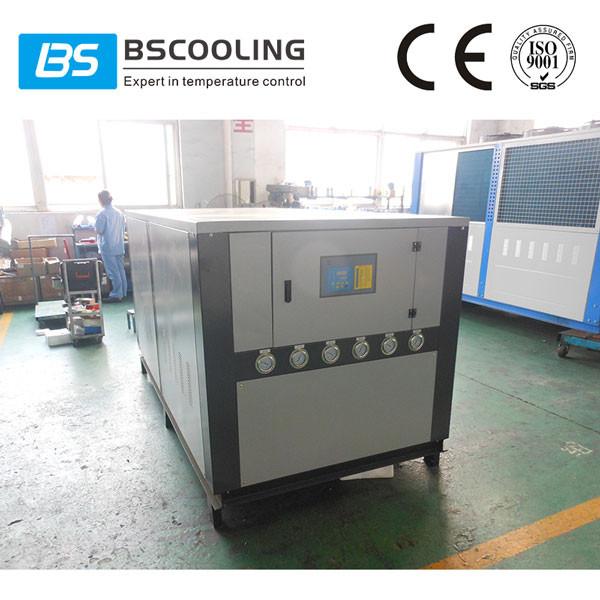

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor
CE cerfificated packaged water cooled chiller units with Copeland scroll compressor
Specifications
Place of Origin :
China
Brand Name :
Bscooling
Certification :
CE Certification
Model Number :
BS - WS/WD/WT/WF
MOQ :
1 set
Packaging Details :
Plywood case
Delivery Time :
20 days after receive advance payment
Payment Terms :
T/T, Western Union
Supply Ability :
200 Sets / Month
Condenser type :
Water cooled
Cooling Capability(kw) :
9.2~132 kw
Voltage :
3PH 380V/50HZ (Customized voltage for option)
Tempreature :
5℃ ~ Room temperature
Refrigeration :
R22/ R407C
Description

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Product Details

Model : BS-WS/WD/WT/WF

Cooling capacity: 9.2 ~132 KW

Compressor power: 3 ~ 40HP

Temperature Range: 5℃ ~ Room temperature

Application: Laser,Plastic machine,Print,Metal,Packing,Food,pharmaceuticals industry,Chemical reaction etc

Working Principle

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Feature

  • Compressor: Adopt the COPELAND compressors
  • Condenser: Adopt shell and tube type seamless thread bronze tube
  • Evaporator: Adopt snake-and-tube type (or shell and tube) of seamless bronze tube.
  • High performance of evaporate completely the refrigerant for chilling water.
  • Pump: High-flow pump in smooth operation with minimum noise and no leakage.
  • Control system : Schneider or other famous brand Electric part.
  • Adopt the micro computer control system which can be remote controlled and support to output the alarm message.
  • Outlook designing: Novel designed, Rigid construction, low gravity, no leakage to keep manufacturing plant dry and clean.
  • Feature of thermostatic chiller: High precision ±1°C controlled.

Safety device and protection

  • ON/OFF- Main power switch
  • Non—fuse circuit breaker
  • H/L switch
  • Power reverse phase protection switch
  • Anti-freezing protection
  • Compressor overload protection
  • Chilling water pump overload protection
  • Failure indicator system
  • Failure alarm system
  • Chilling water by-pass circuit
  • Multi-unit delay start control

Specification

Type [BS- ***] 03WS 05WS 08WS 10WS 12WS 15WD 20WD 25WD 30WT 40WF
Refrigeration Capacity KW 9.2 15.3 24.6 32.5 37.6 48.5 65.0 75.2 97.0 132.6
×103kcal/hr 7.9 13.2 21.2 28.0 32.3 41.7 55.9 64.7 83.4 114
Consumed Power KW 2.6 3.8 5.7 7.2 8.2 11.6 14.4 17.1 22.5 30.6
Running Amp A 4.9 8.0 11.4 14.7 16.7 25.9 29.5 35.1 50.0 56.3
Compressor Non 1 1 1 1 1 2 2 2 3 4
Power(KW) 2.06 3.23 4.92 6.46 7.47 10.13 12.90 14.90 20.30 27.60
Current(A) 3.76 6.89 9.85 13.17 15.23 22.70 26.30 30.50 45.40 50.30
Refrigerating Fluid Type R22(Environmental friendly refrigerant R407C can be choosed)
Control Mode External equalizer thermostaice expansion valve
Pump Type High efficiency low noise centrifugal pumps
Power(KW) 0.55 0.55 0.75 0.75 0.75 1.5 1.5 2.2 2.2 3
Current(A) 1.1 1.1 1.5 1.5 1.5 3.2 3.2 4.6 4.6 6
Head(mH2O) 22 21 23 20 18 23 21 25 24 24
Condenser Water Pipe Connection DN25 DN40 DN50 DN65
Water Flow
(M3/h)		 2 3.2 5.1 6.7 7.8 10 13.4 15.5 20.2 27.1
Evaporator Water Pipe Connection DN25 DN40 DN50 DN65
Water Flow
(M3/h)		 1.6 2.6 4.2 5.6 6.5 8.3 11.2 12.9 16.7 22.8
Tank Volume (L) 52 52 120 120 120 120 Option Option Option Option
Out Dimension Length (mm) 1080 1080 1400 1400 1400 1400 1600 2000 2325 2370
Width (mm) 600 600 995 995 995 995 1080 1200 1350 1350
Height (mm) 1000 1000 1000 1000 1000 1000 1100 1200 1300 1300
Total Weight kg 150 220 310 360 450 650 850 1050 1250 1350

Remark:

  • The table cooling conditions: chilled water inlet temperature 12 ℃, the outlet temperature 7 ℃,Cooling water inlet temperature 30 ℃, the outlet temperature 35 ℃;
  • Power Supply: 3P-380V-50Hz, allowing voltage fluctuation ± 10%, Allow the voltage difference and ± 2%;
  • Specification parameters and dimensions are subject to change due to product improvement without notice.

Packing & Shipment

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Case Show

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Certification

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Contact Us

Nanjing Bosheng Refrigeration Equipment Co., Ltd
Add: Ankang road,Guli industry park, Jiangning, Nanjing,China
Zip: 211164
Tel: +86-25-52766411 Fax: +86-25-68905249
Mobile: 13770952787
E-mail: sales@bscooling.com
Skype: cole_huo
Web: www.bscooling.com

Company Profile

Nanjing Bosheng Refrigeration Equipment Co.,Ltd specializing in industrial temperature control equipment, industrial and commercial refrigeration equipment, which relying on Nanjing university of technology’s advanced technology.

The products are widely used in injection molding, a circuit board, chemical, electroplating, printing and dyeing, roller, reactor, plastic and rubber, food, textile, edible fungus, packaging and pharmaceutical industries.

Workshop

The large NC equipments

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Welding,Electrical installation,Assembly,Machine test

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

The production inventory pending for delivery

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

The Exhibition

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Our Valued Customer

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor

Company Activities

CE cerfificated packaged water cooled chiller units with Copeland scroll compressor
