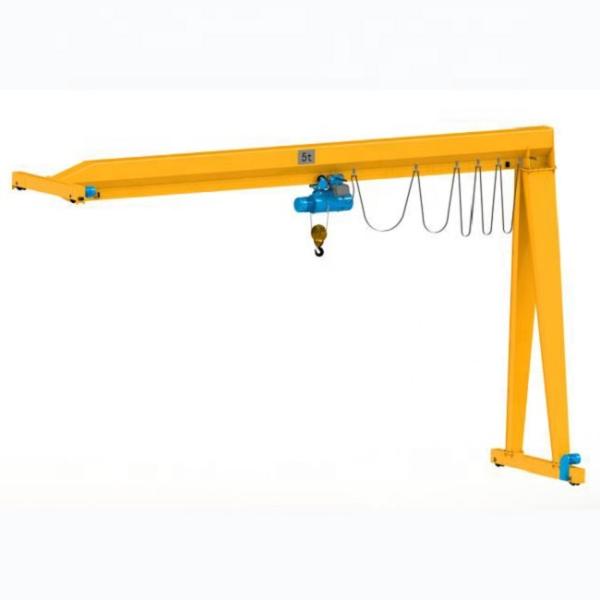

5ton BMH Model electric hoist semi-gantry crane
5ton BMH Model electric hoist semi-gantry crane
5ton BMH Model electric hoist semi-gantry crane
5ton BMH Model electric hoist semi-gantry crane
Specifications
Brand Name :
Bestaro
Model Number :
BMH
Certification :
CE ISO
Place of Origin :
China
MOQ :
1SET
Price :
usd 20000-100000
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000set/month
Delivery Time :
15days
Packaging Details :
main beam and ground beam packed by high quality plastic paper,electric and hoist packed by wooden box.
product name :
semi-gantry crane
feature :
gantry crane
application :
warehouse
working duty :
A3-A5
Control model :
pendant control remote control
power source :
380v 50HZ
Color :
yellow,red or customized
place of origin :
henan,China
certification :
CE ISO
Description

5ton BMH Model electric hoist semi-gantry crane

A brief introduction of semi-gantry crane

BMH model single beam semi-gantry crane is developed from MH model gantry crane and LDA model overhead crane, it is a kind of track traveling mid-duty type gantry crane, the one beam end traveling on wall mounted track, another beam end traveling on ground track, the capacity for 2t to 10t, span from 7.5m to 20m, working temperature within -20--+40 centigrade.

This gantry crane is commonly used gantry crane, it is used in outside/inside the warehouse for loading/unloading and lifting material.

The control models are pendant pushbutton control or wireless remote control.

5ton BMH Model electric hoist semi-gantry crane

Technical data of semi-gantry crane

Span 10m~20m or others
Lifting height 6m, 9m or customized
Capacity 2t 5t 10t
Lifting speed(m/min) 8, 8/0.8 8, 8/0.8 7/0.7
Cross traveling speed(m/min) 10 or 20 10 or 20 10 or 20
Long traveling speed(m/min) 20, 30 20, 30 20, 30
Power source 380V, 50HZ, 3 phase
Working temperature -20~40°C
Control model Pendant control or wireless remote control

Advantage of semi-gantry crane

1. Optimized structure design, make full use of various types of workshop space.

2.Compact design

3. Lowest headroom height

4. Increasing the existing plant effective workspace, Optimization of space utilization

5. Perfect extrinsic feature

Packaging and delivery

5ton BMH Model electric hoist semi-gantry crane

Exhibition show

5ton BMH Model electric hoist semi-gantry crane

Certification

5ton BMH Model electric hoist semi-gantry crane
