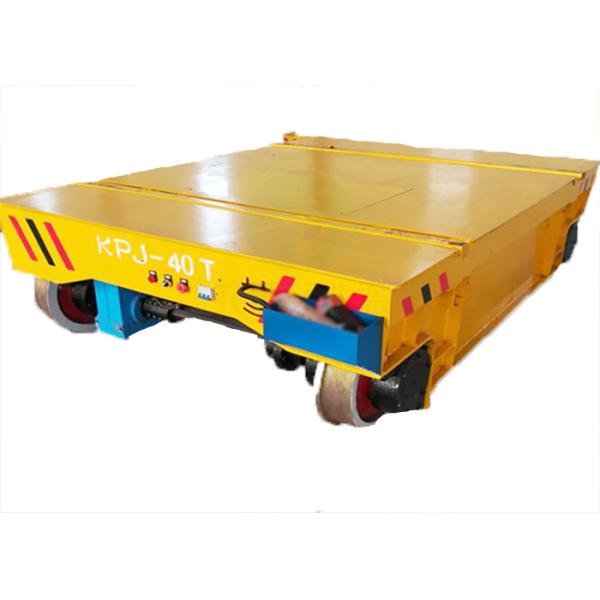

Heavy load industrial motorized battery -driven railway transfer cart
Heavy load industrial motorized battery -driven railway transfer cart
Specifications
Brand Name :
Bestaro
Model Number :
KPJ
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
usd 20000-100000set
Payment Terms :
T/T, D/P, D/A, L/C
Supply Ability :
1000set/month
Delivery Time :
20 work days
Packaging Details :
Main parts packed by high quality plastic paper, electrical and hoists packed by wooden box
Product name :
Motorized rail transfer cart
Capacity :
1-150ton
Flat size :
Customized
Working duty :
A3-A6
Application :
Metallurgy workshop
Power source :
3 Phase 380V 50hz
Description

Heavy load industrial motorized battery-driven railway transfer cart

A brief introduction

Heavy load industrial motorized battery-driven railway transfer cart .literally, speak, it is an electric battery power trolley with rails, which is the traditional and mature type of railway transfer trolley. More importantly, it has been a new favorite in the industry transport field all over the world with a hot market. Especially for workshop transportation.

It has widely applied in the industrial transportation field all over the world. Our automated guided transfer vehicles are available in a number of configurations specifically designed to suit the needs of our customers.

Heavy load industrial motorized battery -driven railway transfer cart

The advantage of transfer cart

  • High temperature and explosion-proof;
  • The Dragged cable powered flatbed trailer for material transfer With simple structure and low price;
  • The hydraulic can be installed on the flat carts;
  • The Dragged cable powered flatbed trailer's using time is not limited;
  • The flatbed trailer for material transfer has no strict requirement on the rail’s construction;
  • Running on the straight railways or on the ‘S’ and arc-shaped railways.

Some main data of transfer cart

KPJ Cable drum supply electric rail transfer cart
Type KPJ KPJ-6 KPJ-10 KPJ-16 KPJ-25 KPJ-40 KPJ-63 KDJ-100 KPJ-160 KDJ-200
Capacity(t) 6 10 16 25 40 63 100 160 200
Flat cart size(mm) L 3600 3600 4000 4500 5000 5600 6300 8000 8200
B 2000 2000 2200 2200 2500 2500 2800 2800 2800
H 550 550 600 650 700 850 900 1150 1250
Traveling speed(m/min) 30 30 30 30 25 25 20 20 20
Wheel distance A(mm) 2000 2000 2200 2500 2800 3200 3600 4500 4500
Gauge C(mm) 1435 1435 1435 1435 1635 1735 1850 2000 2000
Wheel Dia (mm) 300 300 400 400 500 600 700 700 700
Bottom clearance(mm) 50 50 50 60 60 60 60 70 70
Small turning radius 30 35 50 55 60 80 100 100
Motor type/Power(KW) YZ132M1-6 YZ132M2-6 YZ160M1-6 YZ160M2-6 YZ160L-6 YZ160M2-6 YZ160L-6
2.2 3.7 5.5 7.5 11 2X7.5 2X11
Power supply type Cable drum AC380V 3X2.5+1X1.5 AC380V AC380V
3X4+1X2.5 3X6+1X4
Recommend rail type P24 P38 P43 QU80 QU100
Number of wheels 4 4 4 4 8 8
Wheel pressure(t) 1.91 3.21 4.87 7.5 11.5 16.9 27.6 22.8 28.5
Reference weight(t) 3.4 3.72 4.2 6 8.5 11.4 15.2 25.5 31.5
Mark:1)Gauge, flat cart size and capacity could be customized according to the requirement
2)Optional wireless remote control
3)Optional frequency converter speed control, two-speed control
4)When the running distance is less than 20m, the cable reel can be used according to the customer's request, instead of the cable-type (KTP) transfer cart.
5) Rail car back and forth setting system
6)When the transfer cart meets people 2 meters, it will be stopping and alarm.

Crane workshop

Heavy load industrial motorized battery -driven railway transfer cart

Our company

Heavy load industrial motorized battery -driven railway transfer cart

Some certificates

Heavy load industrial motorized battery -driven railway transfer cart
