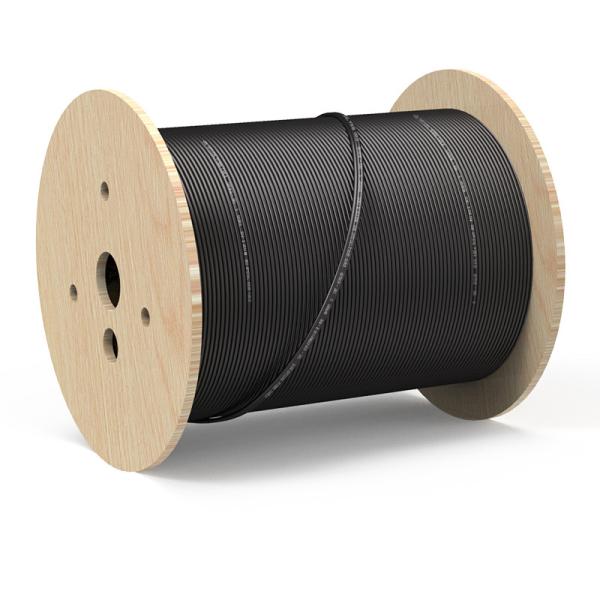

Direct Buried 6 Core Single Mode Outdoor Fiber Optic Cable
Direct Buried 6 Core Single Mode Outdoor Fiber Optic Cable
Direct Buried 6 Core Single Mode Outdoor Fiber Optic Cable
Direct Buried 6 Core Single Mode Outdoor Fiber Optic Cable
Direct Buried 6 Core Single Mode Outdoor Fiber Optic Cable
Direct Buried 6 Core Single Mode Outdoor Fiber Optic Cable
Specifications
Brand Name :
BT-PON
Model Number :
Fiber Optic Cable
Certification :
CE
Place of Origin :
China
MOQ :
10km
Supply Ability :
10000 Unit/Units per Month
Type :
FTTx Solutions
Application :
Fiber Fusion Splicer
No. of Fiber :
1.2.4.8.12.24
Fiber Type :
Single mode or multimode
Jacket Color :
black /customize accept
Length :
2000m per roll or customized
Jacket Material :
PVC or PE
Price :
Negotiation
Description

OUTDOOR FIBER OPTIC CABLE DIRECT BURIED 6 CORE SINGLE MODE CABLE OPTIC FIBER

Product Description:

The structure of GYTS is to sheath 250um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforced core. For some fiber optic cables, a layer of polyethylene needs to be squeezed outside the metal reinforced core. The loose tube and the filling rope are twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking fillers. T

Features:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Crush resistance and flexibility
  • PSP enhancing moisture-proof
  • Two parallel steel wires ensure tensile strength
  • Small diameter, light weight and friendly installation
  • Storage / Operating Temperature: -40℃~+70℃

Product Parameter:

Cable Performance Parameter
Span meter 200 300 400
Related Strength Tension(RTS) 17.5 kn 20.6 kn 28 kn
Max Allowable Tension(MAT) 6.9 kn 8.2 kn 11.5 kn
Allowable Crush Resistance Long Term: 1100 n/100mm Long Term: 1100 n/100mm Long Term: 1100 n/100mm
Short Term: 2200 n/100mm Short Term: 2200 n/100mm Short Term: 2200 n/100mm
Minimum Bending Radius Operating: 220 mm Operating: 220 mm Operating: 220 mm
Installlation: 360 mm Installlation: 360 mm Installlation: 360 mm
Temperature Range Operating: -40 /+70℃ Operating: -40 /+70℃ Operating: -40 / +70℃
Installlation: -15 / +60℃ Installlation: -15 / +60℃ Installlation: -15 / +60℃
Out Sheath Material Electrical Resistance AT (Borealis material 6081) Sheath
Note ice accretion 5MM,weed speed:30M/S

Fiber Parameter

No.

Items

Unit

Specification

G.652D

1

Mode Field Diameter

1310nm

μm

9.2±0.4

1550nm

μm

10.4±0.5

2

Cladding Diameter

μm

124.8±0.7

3

Cladding Non-Circularity

%

≤0.7

4

Core-Cladding Concentricity Error

μm

≤0.5

5

Coating Diameter

μm

245±5

6

Coating Non-Circularity

%

≤6.0

7

Cladding-Coating Concentricity Error

μm

≤12.0

8

Cable Cutoff Wavelength

nm

λcc≤1260

9

Attenuation (max.)

1310nm

dB/km

≤0.36

1550nm

dB/km

≤0.24

Direct Buried 6 Core Single Mode Outdoor Fiber Optic CableDirect Buried 6 Core Single Mode Outdoor Fiber Optic CableDirect Buried 6 Core Single Mode Outdoor Fiber Optic Cable
