Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods
Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods
Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods
Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods
Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods
Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods
Specifications
Brand Name :
Chang Hong
Model Number :
WQCH17
Certification :
ISO
Place of Origin :
Hengshui,Hebei
MOQ :
1piece
Price :
US $ 5000 - $10000 Per Piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1 piece per 30days
Delivery Time :
30 work days
Packaging Details :
USES the box packaging, according to the size of the object design case, the size of the box can't more than the size of the container.
Name :
Z Type Bucket Elevator
Structure :
Chain Conveyor
Type :
Bucket Conveyor
Techinical Feature :
Easy to install and maintain
Color :
as per your request
Machine Frame :
304 Stainless steel/Carbon Steel
Bucket Material :
White PP (Food grade)/ABS/Stainless Steel
Material feature :
Heat Resistant,Oil Resistant,Rust-proof
Application :
Conveying Goods
Advantage :
Multi point feeding and unloading
After-sales service provided :
Video technical support,Field installation,Online support
Description

Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods

Product Name

Z type Bucket Elevators

Structure

chain conveyor

Machine structure

304 stainless steel or carbon steel

Bucket Materail

Food Grade White Plastic/Stainless Steel

Function

Conveying bulk goods

Feature

Horizontal--Vertical--Horizontal

Advantage

zero damage for material/no dust/low energy consumption/simple operation

Bucket Volume

3L-80L

Condition

New

After-sales service provided

Video technical support,Field installation,Online support

Customize

support

Condition

New

Brand Name

ChangHong

Product Introduction

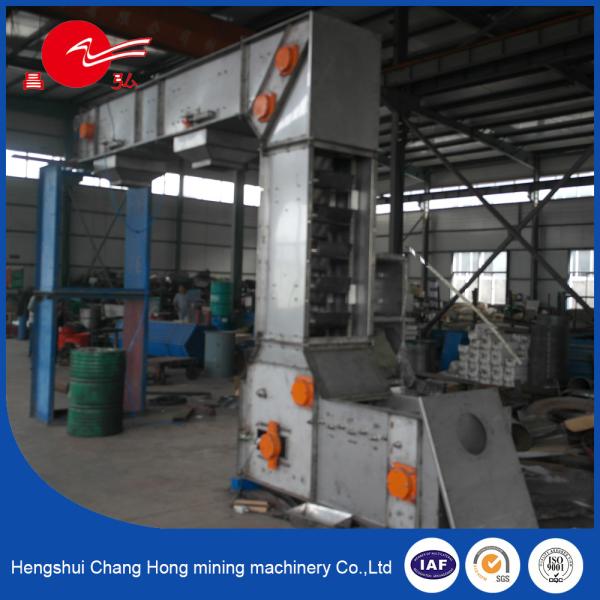

Z bucket elevator can achieve horizontal and vertical conveying, replacing the traditional horizontal conveyor + lifting + horizontal conveyor equipment.The machine housing is made of a combination of segmented horizontal length and lifting height optionally.

Product Feature

1. 304 stainless steel sanitary construction and food grade plastic

2. Labor saving conveyor that allow for large volumes of materials movement

3. Reliable and dependable with low energy requirements

4. Resistant to corrosion and abrasion

5. Custom design available

6. Receive materials and deliver them to weigher

7. Require low maintenance

8. Easy clean-up

9. With automatic wahsing device

10. Easy removal

Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods

Continuous Vertical Plate Chain Bucket Elevator For Conveying GoodsContinuous Vertical Plate Chain Bucket Elevator For Conveying Goods

Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods

Application

The conveyor is applicable for vertical lifting of granule material such as corn,jerry, snack, candy , nuts, plastic and chemical product, small hardware ,vegetable ,fruit and so on. For this machine, the bucket is driven by the chains to lift.

Customer Site Cases

Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods

Sizing Table

CHZD-3

CHZD-6

CHZD-10

CHZD-15

CHZD-20

CHZD-25

CHZD-30

CHZD-35

Transmit Mass

100%

m3/h

6

15

22

30

45

56

68

80

75%

4.5

11

16.5

22.5

33.5

42

51

60

Bucket

Volume

L

3

6

10

15

20

25

30

35

Width

mm

370

470

870

500

560

690

815

940

Distance

mm

228.6

330

Chain

QTY

--

2

Pitch

mm

38.1

66

Single chain break loading(KN)

minimum

37.6

90

Chain Wheel

Teeth QTY

--

26

22

Pitch cercle

diameter

mm

316.09

463.76

Bucket

running speed

m/s

≤0.3

≤0.25

Transmission shaft revolution

r/min

≤0.3

Max elevating height

m

≤45

Max horizontal transport distance

m

≤100

Total Power

KW

0.75-22

1.1-22

2.2-22

5.5-22

5.5-30

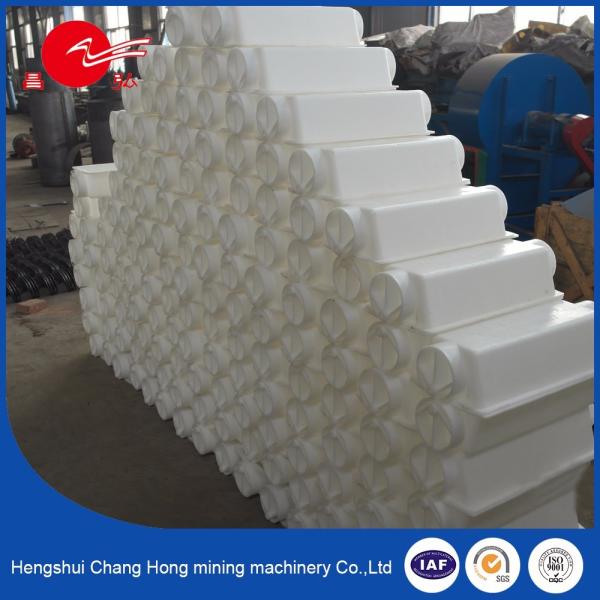

Bucket Specification Size

Item

Width(mm)

Volume(L)

Size

CH3-10 Drawing

a

h

d(H12)

j

CH3

370

3

235

120

Φ13

20

CH6

470

6

CH10

870

10

CH15-35 Drawing

CH15

500

15

340

195

Φ12

45

CH20

560

20

CH25

690

25

CH30

815

30

CH35

940

35

For the quantity of feed or discharge can customize as per your need

Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods

About US

We are a professional manufacturer of conveyor equipment , such as bucket elevator and many kinds of customized conveyors .

We have a professional technical team including drawing design according to customer requirement , production department , and R&D deparment to satisfy customer 's special requirements We are able to offer our clients turnkey solutions including transporting , packaging and weighing related machines .

Our mission is to provide intelligentizied automatic conveyor system for our clintes and get their satisfaction . We always focus on our clients' requirements and treat our clients as the experts in their products and together with our technical and engineering team they can develop the best packaging solution.

Free design for customers

Continuous Vertical Plate Chain Bucket Elevator For Conveying Goods

Our Services

· We will provide the best service in the sale.

· We will ensure high quality to meet all your requirements.

· Professional engineers can offer various special packaging solutions to you.

· All the machines have one year guarantee time, and we will provide life-long maintenance services.

If you have any interest or question for bucket elevator,please dont hesitate to contact me at anytime.

I will be wiling to service for you:)
