Sand Washer Auger Blade
Sand Washer Auger Blade
Sand Washer Auger Blade
Sand Washer Auger Blade
Specifications
Brand Name :
Changhong
Certification :
ISO,SGS,SONCAP
Place of Origin :
Hebei,China
MOQ :
20pieces
Price :
USD17-180/piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pieces/week
Delivery Time :
10-15 work days
Packaging Details :
We use wooden cases or container packing to ensure safe transportation
Structure :
Conveyor System
Structure:Conveyor System Material :
Carbon Steel
Application :
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Transport Package :
Steel Frame Packing
Name :
Sand Washer Auger Blade
Description

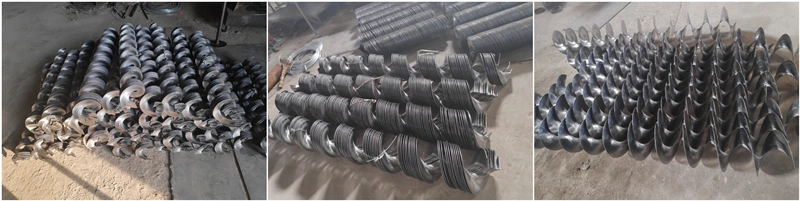

Sectional Screw Flight

Commonly Used Material: Carbon steel, Alloy steel, Manganese Steel, Stainless Steel, Wear-resistant Steel.

Specification: Customized according to customer demand, the maximum diameter of 1800mm, the maximum thickness of 30mm.

Production process: mold cold forming.

Advantages: Produced by cold forming technology, ensure from the physical properties of raw material. effectively guarantee its inner diameter, pitch, helical surface in prime line perpendicular angle;
Large diameter, large thickness, high pitch; spiral smoothing,
perfect spiral opening angle, plain helical surface and in line completely vertical.


Usage: suitable for mining, chemical industry, agriculture, environmental protection and construction of pile foundation engineering and other industries.

Product function: Segmentation and other thick spiral blades on the screw conveyor, mixers, hammers, drilling machinery and other equipment, material handling and screw driving beneficial, can effectively improve the efficiency of the device.

Pitch (mm)

Min ID(mm)

Max OD(mm)

Coefficient ID/OD

MIN OD (mm)

Thickness (mm)

60~100

20

480

0.25


MIN OD=ID/ coefficient

3~16

100~150

30

480

0.25

3~18

150~200

50

520

0.33

3~20

200~250

60

630

0.3

3~25

250~300

65

670

0.25

3~25

300~350

90

900

0.3

3~30

350~400

90

950

0.25

3~30

400~450

95

950

0.25

3~30

450~500

135

1150

0.33

3~35

500~550

150

1200

0.3

3~40

550~650

150

1200

0.3

3~40

650~750

200

1200

0.3

3~40

750~850

200

1250

0.28

3~40

850~900

250

1250

0.3

3~40


Spiral blade thickness 20mm~25mm, width no more than 400mm.
Spiral blade thickness 25mm~30mm, width no more than 350mm.
Spiral blade thickness 30mm~40mm, width no more than 280mm.
