Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel
Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel
Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel
Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel
Specifications
Brand Name :
Changhong
Certification :
ISO,SGS,SONCAP
Place of Origin :
Hebei,China
MOQ :
1 set
Price :
USD980-2500/set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100sets/month
Delivery Time :
15-20 work days
Packaging Details :
We use wooden cases or container packing to ensure safe transportation
Material :
Stainless Steel,Carbon steel,PP bucket and ss304 frame or carbon steel frame
Material feature :
Heat Resistant,Oil Resistant,Rust-proof
Power(w) :
As the model you choose
Condition :
New
Voltage :
220/380V
After-sales service provided :
Video technical support,Online support
Description

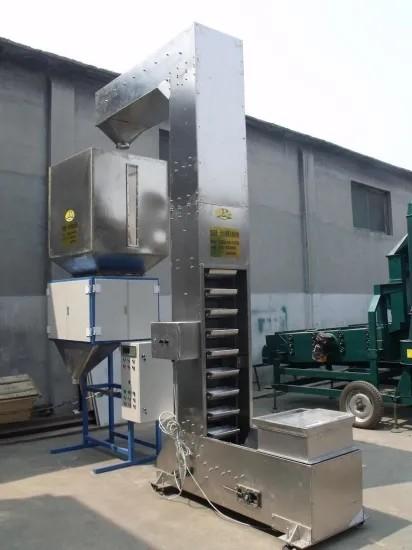

Solid Food Grains Z Type Bucket Elevator Conveyor 304 Stainless Steel

Solid Food Grains Z Type Bucket Elevator for Food China

Product Introduction:

Z bucket elevator can be widely applied in horizontal and vertical convey for solid food, such as rice, chip potato, candy feedstuff, and so on. It composes the automatic quantitative packing system combined with the weight and packing machine, which is applying widely.


Advantage:


1. All elevators are equipped with an automatic chain tension device and built-in overload protection.
2. Material of structure: Stainless steel 304 or carbon steel or others as required.
3. The buckets are made of PP, ABS, stainless steel 304 or others as required.
4. Strong sprocket(Nickle coating carbon steel, Stainless steel, Nylon, or others as required), running stably, and less noise.
5. Conveying speed could be controlled by frequency converter or fixed (10m/min)
6. Fully enclosed, keeping clean and sanitary. With inspection window.
7. Stainless steel chain which is easy to maintain and long lifespan.

Technical Parameter:

Bucket volume 1.0L 1.8L 3.8L 6.5L

Output
2-3.5m3/h
4-6m3/h		 6.5-8m3/h 8.5-12m3/h
Bucket material PP, ABS, SS304, or other
Body material mild steel, stainless steel 304 or other
No. of the discharge port Single or Muti discharge port
Speed Adjustable or fixed
Voltage(v) 220V/50Hz, single phase
380V/50Hz, three phases
Or as required




How to get Z Bucket Conveyor Machine? Please send us the listed questions for getting quotation.
1. What's the material you are going to deal with
2. What are the physical characteristics of the material
Such as the size, temperature, density, moisture content etc
3. What's the producing capacity you are going to achieve
4. What is the lifting height of the elevator (distance between inlet and outlet)
