380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant
380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant
380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant
380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant
380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant
380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant
Specifications
Brand Name :
Changhong
Model Number :
CHEV
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
$9000.00 /Unit, 1 Unit (Min. Order)
Price :
1-99 Units:$9000
Payment Terms :
T/T, Western Union
Supply Ability :
1-1 :30 days
Delivery Time :
30days
Packaging Details :
USES the box packaging, according to the size of the object design case, the size of the box can't more than the size of the container.
Power(W) :
0.75-22kw
Bucket volume :
3-80L
Bucket material :
stainless steel,PP,ABS,carbon steel
Material Feature :
Heat Resistant
Voltage :
380v/220v, 440v
Name :
chain bucket conveyor
Description

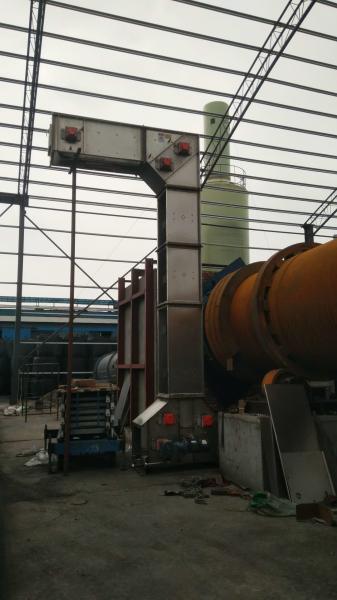

380v Chain Bucket Conveyor Stainless Steel Bucket Elevator In Cement Plant

Z shape bucket elevator is the universally lifting conveying equipment. It is mainly made up of Movement part (bucket and traction belt or chain), Upper part with Transmission Drum, Down parts with Tension Drum, Middle Cabinet, Drive Device and so on.

Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator, C type bucket elevator etc. Selection of the proper type of bucket elevator depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.

Advantages

· Easy installation and operate

· Energy saving

· The material is zero broken

· Heavy duty motor mount

· Adjustable chain

· Multipoint feeding and multipoiint unloading

· no raise dust,no leak

· Smooth running&quiet

Sizing Table

CHZD-3

CHZD-6

CHZD-10

CHZD-15

CHZD-20

CHZD-25

CHZD-30

CHZD-35

Transmit Mass

100%

m3/h

6

15

22

30

45

56

68

80

75%

4.5

11

16.5

22.5

33.5

42

51

60

Bucket

Volume

L

3

6

10

15

20

25

30

35

Width

mm

370

470

870

500

560

690

815

940

Distance

mm

228.6

330

Chain

QTY

--

2

Pitch

mm

38.1

66

Single chain break loading(KN)

minimum

37.6

90

Chain Wheel

Teeth QTY

--

26

22

Pitch cercle

diameter

mm

316.09

463.76

Bucket

running speed

m/s

≤0.3

≤0.25

Transmission shaft revolution

r/min

≤0.3

Max elevating height

m

≤45

Max horizontal transport distance

m

≤100

Total Power

KW

0.75-22

1.1-22

2.2-22

5.5-22

5.5-30

Bucket Specification Size

Item

Width(mm)

Volume(L)

Size

CH3-10 Drawing

a

h

d(H12)

j

CH3

370

3

235

120

Φ13

20

CH6

470

6

CH10

870

10

CH15-35 Drawing

CH15

500

15

340

195

Φ12

45

CH20

560

20

CH25

690

25

CH30

815

30

CH35

940

35

Can be used in any form (according to customer requirements)

Free design for customers
