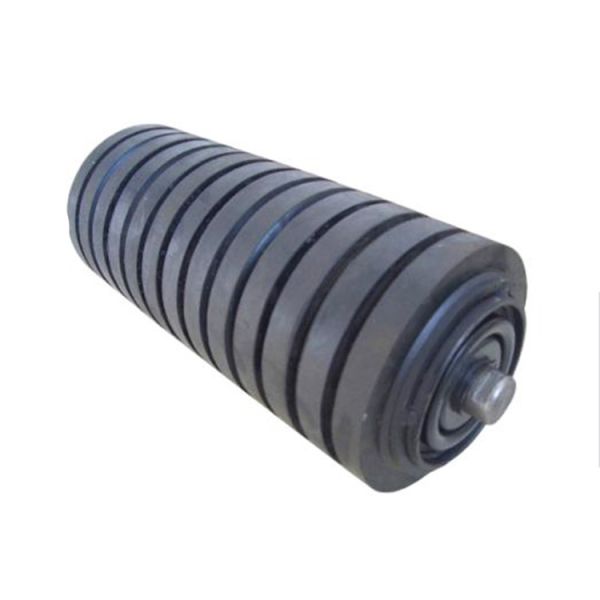

Material Handing Equipment Parts Conveyor Flat Return Idler Impact Roller

Impact IdlerBuffer RollerCarrying Idler For Belt Conveyor Idler Conveyor Rollers

Roller is an important component of belt conveyor.It has many kinds and large quantity,can support conveyor belt and material weight.

Product Specification
Item	rubber buffer conveyor roller
Diameter	89-159mm,can customize
Length	190-1500mm,can customize
Material	Carbon steel
Seal	Multiple labyrinth seal
Bearing type	Deep Grove ball bearing
Gurantee	12 months
Color	Customized
Certificate	ISO,CE
Advantages	waterproof,dustproof,smooth running,no noise,rotational resistance, axial float, shaft radial play

Features:

A) Bearing: deep groove ball and double sealing bearing 2RZ and 2Z with C3 clearance;

B) Sealing: multi-stage labyrinth seals achieve waterproof and dust proof

C) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors, grease is permanent lubricant.

D) Color: roller surface could be painted any color as per customer request.

E) Each roller would be through strict inspection and test to ensure every out coming roller is of true high quality;

Quality design and build

Our focus on quality starts with sourcing only the best raw materials, rejecting anything that falls outside our strict tolerances.During manufacture your order is checked at each stage before passing through to the next process. This also contributes to our ability to meet orders on time.

Function

The role of idler is to support the weight of conveyor belt and material. The operation of idler must be flexible and reliable. Reducing the friction between conveyor belt and idler plays a key role in the service life of conveyor belt which accounts for more than 25% of the total cost of conveyor. Although the idler is a small part in the belt conveyor and its structure is not complex, it is not easy to make high quality idler.
There are several criteria to judge whether the idler is good or bad: the radial runout of the idler; the flexibility of the idler; the axial displacement

Application

Application: Belt Conveyor(Bulk Material Handling)
Application Environment: Quarry, Wharf, Coal mine,Batching plants,Steel plant........
Conveying Material: Coal, Stone, Mineral….

As the power of belt transport aircraft and lifting equipment, Steel rollers are widely used in mines, metallurgy, chemicals, coal, building materials, electricity, grain, and transportation.

1. Large conveying capacity and longer conveying distance, up to 20km or longer.
2. Transport various kinds of bulk material for mining company, grain company, power plant, chemical factory, food company, etc.
