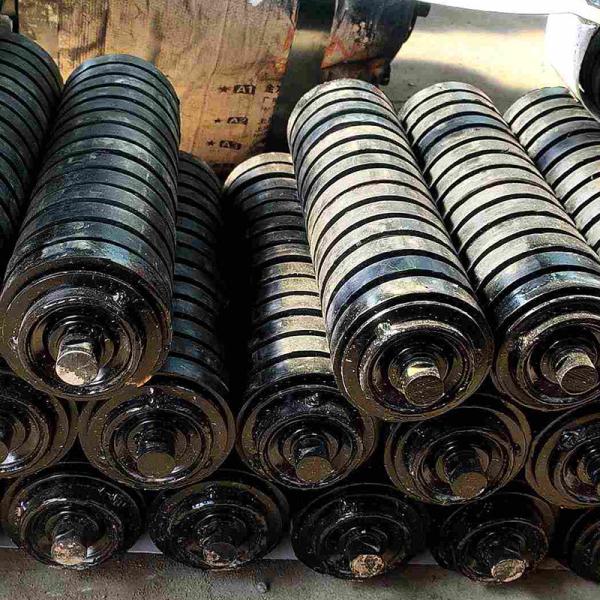

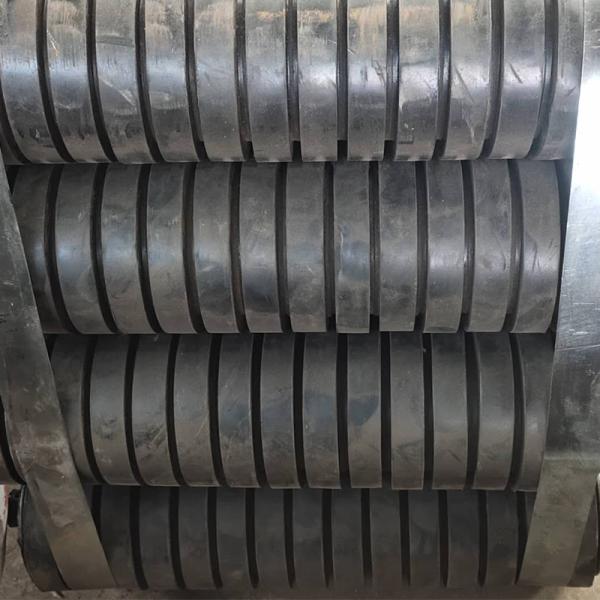

Waterproof Conveyor Impact Idler Roller / Impact Rubber Roller 127X310X25

Buffer Roller OEM ODM High Quality Rubber Buffer Roller Impact Idler Roller For Belt Conveyor

Roller is an important component of belt conveyor.It has many kinds and large quantity,can support conveyor belt and material weight.

Product Specification
Item	rubber buffer conveyor roller
Diameter	89-159mm,can customize
Length	190-1500mm,can customize
Material	Carbon steel
Seal	Multiple labyrinth seal
Bearing type	Deep Grove ball bearing
Gurantee	12 months
Color	Customized
Certificate	ISO,CE
Advantages	waterproof,dustproof,smooth running,no noise,rotational resistance, axial float, shaft radial play

Features:

A) Bearing: deep groove ball and double sealing bearing 2RZ and 2Z with C3 clearance;

B) Sealing: multi-stage labyrinth seals achieve waterproof and dust proof

C) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors, grease is permanent lubricant.

D) Color: roller surface could be painted any color as per customer request.

E) Each roller would be through strict inspection and test to ensure every out coming roller is of true high quality;

Quality design and build

Our focus on quality starts with sourcing only the best raw materials, rejecting anything that falls outside our strict tolerances.During manufacture your order is checked at each stage before passing through to the next process. This also contributes to our ability to meet orders on time.

Function

The role of idler is to support the weight of conveyor belt and material. The operation of idler must be flexible and reliable. Reducing the friction between conveyor belt and idler plays a key role in the service life of conveyor belt which accounts for more than 25% of the total cost of conveyor. Although the idler is a small part in the belt conveyor and its structure is not complex, it is not easy to make high quality idler.
There are several criteria to judge whether the idler is good or bad: the radial runout of the idler; the flexibility of the idler; the axial displacement

Application Scope

Flate/Carrier/Carrying Rollers: Used to handle bulk&unit material.

Impact Rollers: Installed at the loading point to absorb the shocks and to help protect against belt damage.

Return Rollers:used to sustain and support the belt during its return section and performs a cleaning action.

Return rollers with spaced rings(comb rollers/rubber disc roller)

Return roller with helical rubber rings(spiral rollers)

Self-aligning/Training Rollers:

Used to adjust the belt deviation preventing hunting and ensuring stable operation of conveyor belt.

we also have other material:

About Conveyor roller Applications

Why Us:

1 We are a professional manufacturer , provide you the competitive factory price.

2 Various style of roller products for you choose, like trough roller, impact roller, taper roller etc.

3 We ensure the deliver time and the high quality for you, and the best after-sale service.

4 Any problem, no matter big or small, we will do our best to solve it with you, made you satisfied.

5 We have the international leading full automatic flexible roller assembly production line, the annual production capacity is more than 700,000 pieces.
