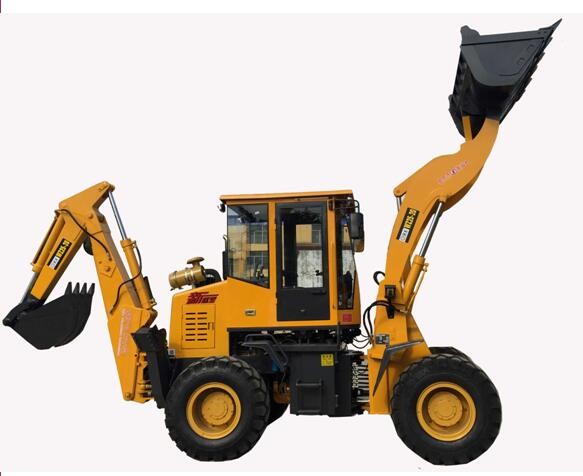

2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
Specifications
Brand Name :
BESTA
Model Number :
WZ40-16
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
usd14,000-15,000 per unit
Supply Ability :
20 unit per month
Packaging Details :
nude 750*210*270cm
Weight :
6500kg
Power :
47kw/64HP
Digging Bucket :
0.40cbm
Loading Capacity :
1600kg
driving type :
2WD
Shift :
CVT
Description

Features:

1, Larger cab, safety glass, Luxury shock absorber seat.
2, Articulated frame for small turning radius, CVT system, hydraulic steering system for easy and convenient operation.
3, Digging part of the pilot operation for easy operation and accurate positioning.
4, Digging device in the middle and wing-shape opening outriggers, for stable and deep than other forms.
5, with multi-function pipe, can be equipped with a variety of options to meet the needs of different users.

Specification:

Model WZ25-16 WZ25-20 WZ30-18 WZ30-25 WZ40-16
Operating weight 3800kg 6500kg 5680kg 7000kg 6500kg
Capacity of excavator 0.25m3 0.25m3 0.3m3 0.3m3 0.4m3
System working pressure 20mpa 20mpa 20mpa 21.5mpa 20mpa
Engine FAWXICHAI WEICHAI4102T WEICHAI4102 WEICHAI4108T WEICHAI4102
Rated power 38kw/51HP 60kw/80HP 51kw/69HP 80kw/110HP 47kw/64HP
Rated speed 2400r/min 2400r/min 2400r/min 2400r/min 2200r/min
Max. digging height 4000mm 5000mm 5000mm 5000mm 6000mm
Max. digging depth 2700mm 3650mm 3600mm 4000mm 3200mm
Max. digging width 550mm 500mm 550mm 550mm 720mm
Capacity of Loading 0.9 m3 1.2 m3 1.0 m3 1.2 m3 0.9m3
Rated load 1600kg 2000kg 1800kg 2500kg 1600kg
Dumping height 3400mm 3600mm 3500mm 3600mm 3400mm
Dumping reach 950mm 880mm 950mm 950mm 950mm
Min. turning radius 4500mm 4190mm 4300mm 4190mm 4500mm
Max. flux 50/min/r 50/min/r 50/min/r 50/min/r 63min/r
Max. Tractive force 38KN 38KN 38KN 38KN 30KN
Max. breakout force 49KN 49KN 49KN 49KN 49KN
Max. digging force 44KN 44KN 44KN 44KN 44KN
Grade ability 45% 45% 45% 45% 45%
Traveling speed(F/R) ≤27km/h/25km/h ≤27km/h/25km/h ≤27km/h/25km/h ≤27km/h/26km/h ≤38km/h/25km/h
Ground clearance 220mm 220mm 220mm 220mm 220mm
Wheel base 2180 2290mm 2290mm 2290mm 2800mm
Tread 1100mm 1500mm 1500mm 1500mm 1550mm
Drive type 4WD 4WD 4WD 4WD 2WD
Tyre 20.5/70-16 20.5/70-16 20.5/70-16 16/70-20 825-16
Size(L*W*H) 605*208*285cm 735*218*298cm 710*210*290cm 735*218*300cm 750*210*270cm

2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader 2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader

2WD economic Small Wheel Loader with backhoe 6500kg , Mini Bucket Loader
