High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
Specifications
Brand Name :
NTS
Model Number :
NTS191
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
5000 pcs
Price :
as discussed
Supply Ability :
50000per month
Delivery Time :
35 days
Packaging Details :
boxes ,100pcs/box with a plastic bag
Material :
Q235
Surface :
self color
Size :
1/2 5/8 3/4
strut diameter :
5.8mm
Process :
butt weld
Length :
CT100 150 175 200 250 300 350 400mm
Description

high carbon steel precast coil rod formwork coil rod for building construction

Product Information

  • Item: Tie Rod, Coil Rod, Threaded Rod (for construction)
  • Description: Tie rod is the most commonly used metal building material in concrete form system.
  • Tie rod is used as concrete form fasteners.
  • Tie rod is usually used as one of components of tie rod system which consists tie rod, cone, nut, and washer.
  • Material: C1045, Q235, 40Cr and so on.
  • Diameter:1/2", 3/4" and 1" 1 1/4"
  • Length:12 feet

Steel Thread COIL ROD

  • Material : Low carbon steel ,stainless steel
  • Surface treatment : hot zinc , cold galvanizing
  • All thread Coil rod is used for fastening formwork when cast concrete wall or girder in construction. It can reduce construction formwork remarkably.
  • Our products have been adopted by many large hydropower stations, all of the nuclear power stations, and Beijing Olympic venues.
  • Technical Specifications:Outside Diameter: 8-110mmLength: maximum: 8mSafety load: 50-440KNFinish: black or galvanized
  • Material: cast ironFull Range of Products:We are the market leader company in this industry in China.
  • Our factory can produce full range of coil rod/thread rod with different strength, thread and shapes: ordinary strength, high strength, trapezoidal thread, U thread, ASTM (UNC standard) thread, waterstop coil rod, hollow and bent coil rod
  • .Quality Control:We have obtained quality management certification ISO 9001:2000, and have strict quality control system.
  • R & D Department:Our research & development department has well experienced staff.
  • They are always focusing on designing new products, solving problems, and improving current products and technologies.

Formwork material Coil Rod Sizes:

Technical specifications:

Code Bolt Dia Thread / Inch Pitch Root Dia Diag Root Dia Major Dia Break Load
Max Min Max Min Max Min
TP-U-001 3/8" 6 0.1667 0.297 0.292 0.300 0.295 0.375 0.320 34KN
TP-U-002 1/2" 6 0.1667 0.425 0.420 0.435 0.425 0.500 0.486 70KN
TP-U-003 5/8" 5 0.2000 0.525 0.520 0.532 0.527 0.615 0.595 112KN
TP-U-004 3/4" 4.5 0.2222 0.635 0.625 0.641 0.631 0.750 0.740 165KN
TP-U-005 7/8" 4.5 0.2222 0.765 0.755 0.711 0.761 0.845 0.835 232KN
TP-U-006 1" 4.5 0.2222 0.885 0.875 0.891 0.881 0.985 0.965 303KN
TP-U-007 1" 3.5 0.2857 0.840 0.830 0.848 0.838 0.985 0.965 280KN
TP-U-008 1-1/8" 3.5 0.2857 0.965 0.955 0.972 0.962 1.045 1.035 361KN
TP-U-009 1-1/4" 3.5 0.2857 1.085 1.075 1.092 1.082 1.225 1.215 470KN
TP-U-010 1-3/8" 3.5 0.2857 1.215 1.205 1.221 1.211 1.325 1.315 533KN
TP-U-011 1-1/2" 3.5 0.2857 1.340 1.330 1.346 1.336 1.475 1.460 650KN
TP-U-012 1-1/2" 4.5 0.2222 1.386 1.380 1.390 1.384 1.500 1.480 700KN

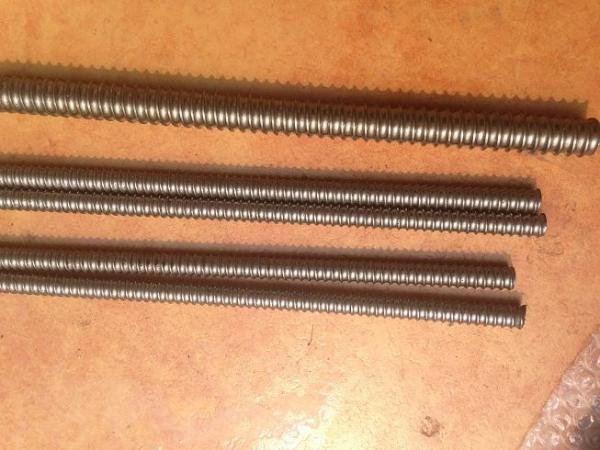

DETAILED PICTURS OF FORMWORK COIL ROD

High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction

PACKING OF FORMING COIL ROD :

High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction

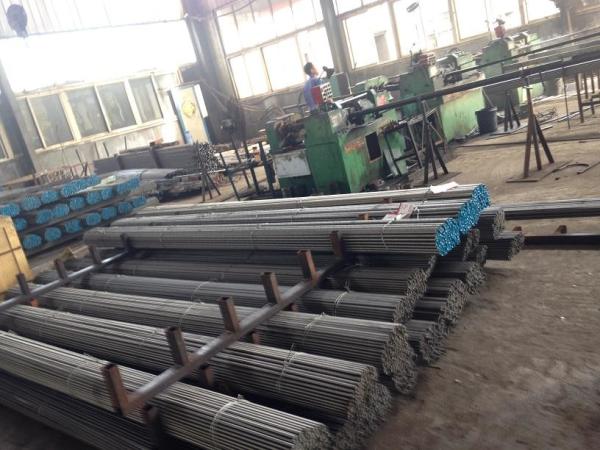

PRODUCTION FLOW OF THE THREADED COIL ROD TIE ROD

High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction

Our Testing Room:

High Carbon Steel Precast Tie Rod Formwork Coil Rod For Building Construction
