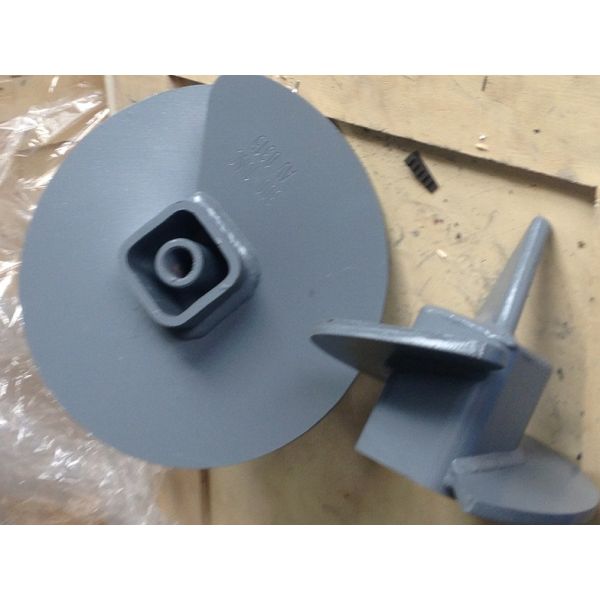

Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Specifications
Brand Name :
NTS
Model Number :
NTS65
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1000pcs
Price :
as discussed
Supply Ability :
5000 per month
Delivery Time :
35 days
Packaging Details :
boxes ,100pcs/box with a plastic bag
Material :
Q345B 16Mn
Surface :
grey painted
Thread Size :
M24 1"
Helix diameter :
250mm 300mm 350mm 450mm
Helix thickness :
6mm 8mm 10mm 12mm
Process :
Forged and Welded
Description

painted welded hulk earth anchoring system power hub screw anchors for foundation system

Product Description:

hulk earth anchoring system power hub screw anchors screw anchor is also called socket screw anchor which is mainly used for agricultural and mining ,power line ,industrial foundation construction
The screw anchor is made of helix, tube socket and tip spigot which can help the helix dig into ground easily
The helix size are mainly 200mm 250mm 300mm and 450mm to suit different soil class
For small helix ,it is mainly for hard ground soil and bigger helix size is suit for soft soil ground
The thread of the spigot is M24 and 1"
The helix and tube material is Q345 alloy steel
The helix screw anchor work together with stay rod ,eye nut to pull the cable wire
Surface of the earth screw anchor is painting grey or painting black
Here show the details picturesSOCKET DRIVE POWER INSTALLED ANCHOR
1. Name: Screw anchor (Socket type 10")
2. Rate:10000 ft.-lb
3. Material: carbon steel
4. Coating:Painting
5. Thread: M20 / M24 thread
5/8" 3/4" 1" thread

Product Specification hulk earth anchoring system power hub screw anchors

Galvanized Ground Anchors / Helical Earth Anchors For Foundation System

SOCKET ANCHOR
THREAD DIA SOCKET HELIX LOAD STRENGTH
5/8" 2 1/4" 8" 8000LBS
5/8" 2 1/4" 10" 8000LBS
5/8" 2 1/4" 12" 10000LBS
5/8" 2 1/4" 14" 10000LBS
3/4 & 1" 2 1/4" 8" 8000LBS
3/4 & 1" 2 1/4" 10" 8000LBS
3/4 & 1" 2 1/4" 12" 10000LBS
3/4 & 1" 2 1/4" 14" 10000LBS
5/8" 2 1/2" 8" 8000LBS
5/8" 2 1/2" 10" 8000LBS
5/8" 2 1/2" 12" 10000LBS
5/8" 2 1/2" 14" 10000LBS
3/4 & 1" 2 1/2" 8" 8000LBS
3/4 & 1" 2 1/2" 10" 8000LBS
3/4 & 1" 2 1/2" 12" 10000LBS
3/4 & 1" 2 1/2" 14" 10000LBS


Electrical tower anchors consist of four galvanized components: Lead section, single helix , extension shaft and the guy adapter.

Name: power hub socket drive anchor

Material: Forged Carbon steel

Finish: Hot Dip Galvanized per ASTM A153

Size: M24 or 1"

Helix size:200mm 250mm 300mm 350mm 450mm

Feature: Thimble Eye, Twin Eye, Triple Eye and Oval Eye Anchor Rods are used for guying with expanding and cross plate anchros. Hot dip galvanized to meet ASTM A153 specification.

Customizing is welcome!

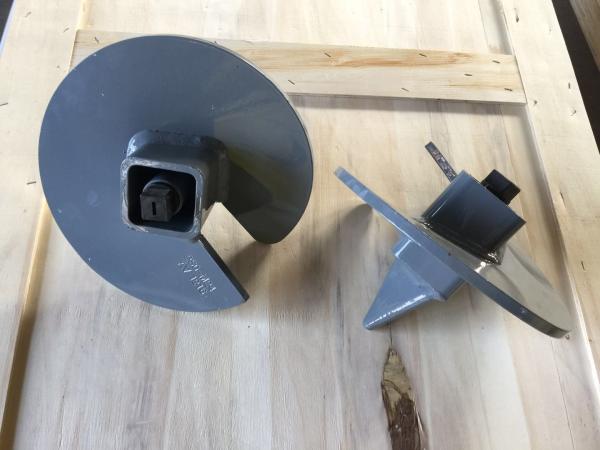

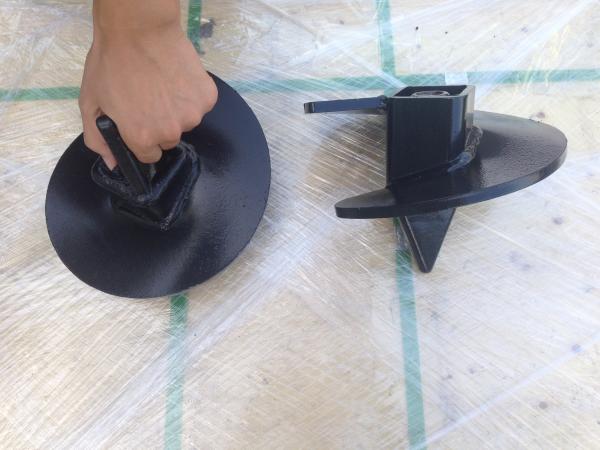

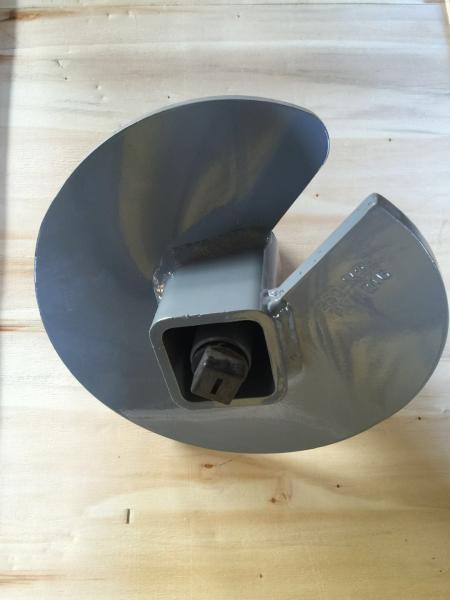

Here are the pictures of the socket screw anchor

bottom: top:

Galvanized Ground Anchors / Helical Earth Anchors For Foundation SystemGalvanized Ground Anchors / Helical Earth Anchors For Foundation System

Quality Inspection:

Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
Other types of helix anchor:


Galvanized Ground Anchors / Helical Earth Anchors For Foundation System

PACKING OF THE SOCKET ANCHOR ,EARTH ANCHOR

Galvanized Ground Anchors / Helical Earth Anchors For Foundation System
