Q235 Material Construction Formwork Accessories Full Strut Coil Ties
Q235 Material Construction Formwork Accessories Full Strut Coil Ties
Q235 Material Construction Formwork Accessories Full Strut Coil Ties
Q235 Material Construction Formwork Accessories Full Strut Coil Ties
Specifications
Brand Name :
NTS
Model Number :
NTS46
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
5000 pcs
Price :
as discussed
Supply Ability :
50000per month
Delivery Time :
35 days
Packaging Details :
boxes ,100pcs/box with a plastic bag
Material :
Q235
Surface :
self color
Size :
1/2 5/8 3/4
strut diameter :
5.8mm
Process :
butt weld
Length :
CT100 150 175 200 250 300 350 400mm
Description

Full Strut Coil Ties 1/2" for building construction formwork accessories

Product Information

  • Full Strut Coil Ties are one of the most economical and versatile form tie systems available. They are commonly used with self cleaning Coil Rod or Coil Bolts.
  • Coil Ties are strong, resistance welded ties designed for medium and heavy forming applications .
  • Coil tie products are available in two or four struts, with screw-on plastic cones and water – resistant versions.
  • 1/2”, 3/4”, 1” and 1-1/4” diameters are available.
  • Batter Washer

Features

  • Economical and versatile form tie system
  • Can be provided with different capacities and almost any length
  • Can be provided as plain or mechanically galvanized
  • Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formwork

  • They can be made by electricity welded or hand weld ,for small sizes like 1/2 5/8 3/4" we can make by butt weld or resistant weld ,buy for bigger size like 1' 1 1/4" we have to do weld by hand.

OCM Part No. Tie Length Box Qty Weight / pcs lbs Safe Working Load lbs
CT5004 4 100 0.32 4,500 lbs.
CT5006 6 100 0.32 4,500 lbs.
CT5008 8 100 0.32 4,500 lbs.
CT50010 10 100 0.36 4,500 lbs.
CT50012 12 100 0.42 4,500 lbs.
CT50014 14 100 0.466 4,500 lbs.
CT50016 16 100 0.512 4,500 lbs.
CT50018 18 100 0.558 4,500 lbs.
CT50020 20 100 0.604 4,500 lbs.
CT50024 24 100 0.696 4,500 lbs.
CT50030 30 100 0.834 4,500 lbs.
CT50036 36 100 1 4,500 lbs.
CT50042 42 100 1.1 4,500 lbs.
Comments: **1/2" Heavy Duty (6,750 SWL) available upon request - 4 Strut Available. **Additional lengths available upon request. **Waterseal available upon request. -SWL provides a safety factor of apporoximately 2 to 1.
  • OTHER ITEMS ARE AVAILABLE
  • Batter Washer
  • Coil Bolts Coil Coupler
  • Coil Loop Insert Coil Nuts
  • Coil Rods Coil Ties
  • Flat Ties
  • Flat Washer Jahn "A" Bracket
  • Jahn Tie Extenders
  • Long Wedge Bolts
  • Loop Ferrule Insert
  • Loop Ties
  • Omni Wedge
  • Plylag Pres Steel Half Hanger
  • Rock Anchor
  • Rod Clamps
  • Rod Tightening Wrench
  • Scaffold Bracket
  • Screw On Plastic Cones
  • Setback Plugs
  • Single FLR Insert
  • Snap Ties
  • Strongback Ties
  • Taper Ties
  • Turnbuckle Brace
  • Waler Ties
  • Wedge Bolts
  • Z Tie Holders

Customizing is welcome!

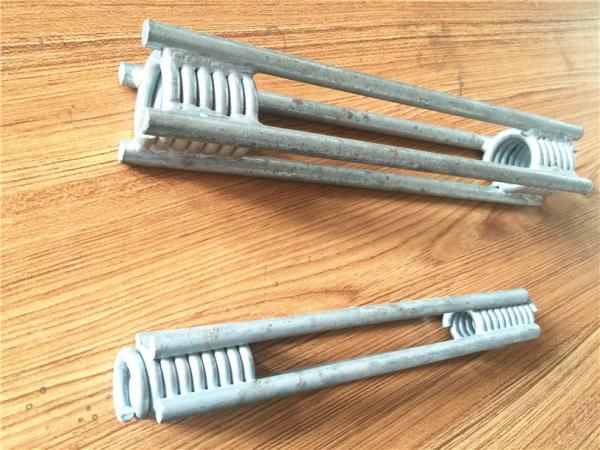

Here are the pictures of formwork coil tie two strut coil ties for concrete forming tie

Q235 Material Construction Formwork Accessories Full Strut Coil Ties


Other concrete accessories,forming hardware,formwork accessories coil insert ,loop insert ,ferrule insert , coil loop insert wingnut insert coil bolt ,coil cone are vailable

Q235 Material Construction Formwork Accessories Full Strut Coil Ties

How to use the two strut coil tie :

the coil ties will fix with two coil cone plastic cone made by pvc material,the coil cone size is 1/2*35mm

the coil bolt and plate washer will also fix to them on the formwork plywood panel in concrete

see the assembly pictures:

Q235 Material Construction Formwork Accessories Full Strut Coil Ties
