F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
Specifications
Brand Name :
NTS
Model Number :
NTS126
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
500pcs
Price :
as discussed
Supply Ability :
50000pcs per month
Delivery Time :
30 days
Packaging Details :
jute bag
Material :
carbon steel
Size :
1/2 5/8 3/4 1"
Surface Finish :
blank
Strut Number :
Four
Load strength :
18000lbs
Description

Four Strut Coil Ties Or Coil Insert Spring Coil Ties Welded Concrete Wall Ties F63 Coil Insert

Description Of Coil Tie:

  • Four strut coil tie and coil insert welded for concrete and formwork use
  • The Four Strut Coil Tie is similar in form and use to the Two Strut Coil Tie,
  • but has two additional struts to develop higher load capacities. Four Strut Coil
  • Ties are available in 1" diameter standard, 1-1/4" standard and heavy configurations.
  • Safe working load is based on an approximate 2:1 safety factor.
  • Note: If electron-plating of coil ties is required, special procedures may be necessary
  • to prevent hydrogen embrittlement effects

Sizes:

Bolt Dlameter SWL Tension Height (c) Coil Length (B) Wire Diameter(D) Length(A) Min Edge Distance
In Ib In In In In In
3/4 9000 1-5/8 1-3/4 .375 6 8
1 18000 2-1/4 2-1/16 .440 6 8
1-1/4 36000 2-1/2 2-1/16 .440 8 10

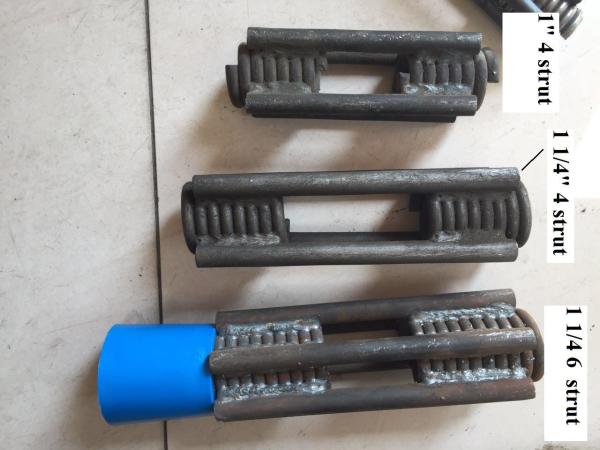

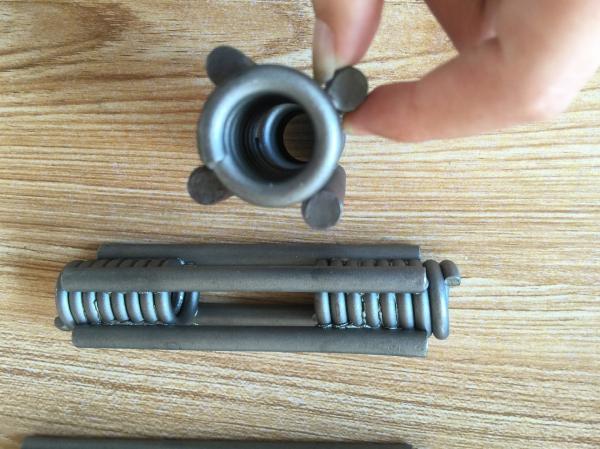

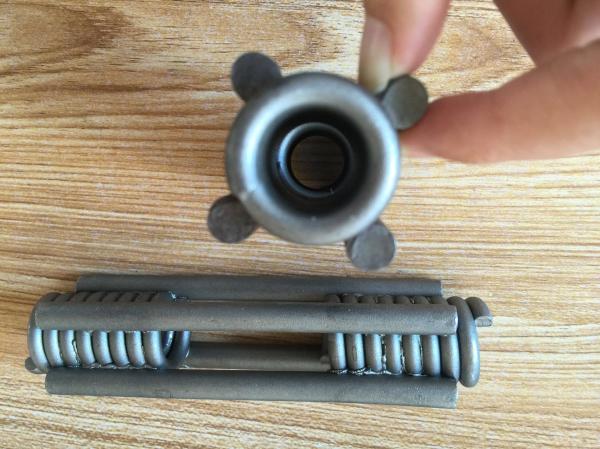

Here are the Pictures of coil ties:

F63 Coil Insert Construction Formwork Accessories / Four Strut Coil Ties
