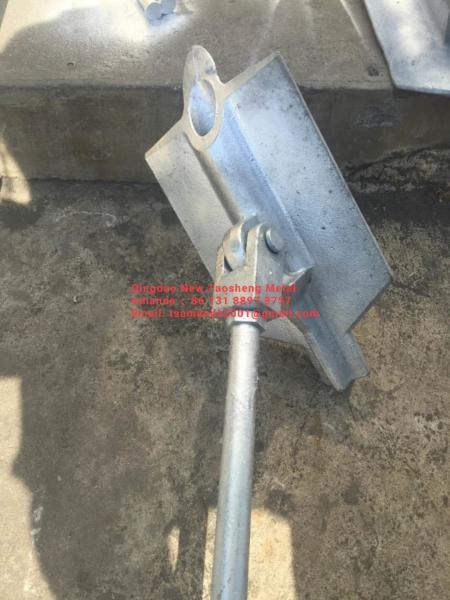

9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors
9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors
9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors
9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors
Specifications
Brand Name :
NTS
Model Number :
352
Certification :
ISO9001
Place of Origin :
China
MOQ :
5000pcs
Packaging Details :
in carton box
Material :
ductile iron or malleable iron
Loading :
70KN120KN210KN
Surface :
Hot dip galvanzed
Description

hot dip galvanized hulk earth anchors, ground earth anchors,foundation anchors ,earth drill anchors

Product Description

Anchor Model Information

HULK EARTH ANCHOR

9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors
Weight 5.25Kg
Material Ductile Iron
Mechanical
Properties		 Ultimate Strenght: 280kN
Yield Strength: 175kN
Soil Bearing
Surface Area		 298.96cm²
Typical Installation
Depth		 2.1m to 9m

Works like a toggle bolt in soil


Driven into the ground (with no holes, no digging and no concrete), providing a safe and environmentally sensitive installation

  • An upward pull on the anchor tendon rotates the Duckbill into a perpendicular "anchor lock" position in undisturbed soil
  • Results in superb holding capacities
  • A very effective, lightweight and economical solution to any anchoring application, large or small
  • A favorite for our arborist customers, great for anchoring and supporting trees
  • Working Load Limit (WLL) shown indicates holding power in normal soil
  • Breaking Strength shown indicates the maximum tensile strength of the included wire rope


* Capacities shown apply only to normal soil conditions.

Product Details

1. Material :Ductile Iron 65-45-12, ASTM A-536

2. Process:HDG, zinc plated

3. Length:9.75in

4. Weight:10.05Lb

5. Package:Pallet/Crate

6. Surface:HDG, TO MEET ASTM A153

Installation

9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors

9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors

Package:

Related Products

Our Factory:

9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors

Our packing:

9.75 Inch ASTM A-536 Ductile Iron Galvanized Ground Anchors

Our Services

1. How can I get a quotation from your company?

In order to quote you as soon as possible please provide us the following information:

1).Detail drawings (CAD/PDF/DWG/IGES/STEP)

2).Material

3).Quantity

4).Surface treatment

5).Any special packaging or other requirement

2. Do you provide sample for validation?

Yes, sample fee negotiate, with mass production we will provide free sample for validation before production.

3. How is your quality control ?

We have standard metrology equipment and seasoned inspector, all parts are practice in-process inspection and 100% final inspection to meet the requirements of the customer engineering drawings.

4. What is your payment?
