Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability
Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability
Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability
Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability
Specifications
Brand Name :
QZ RIDGE
Model Number :
RS-015
Certification :
CE,SGS
Place of Origin :
FUJIAN,CHINA
MOQ :
300 square meters
Price :
USD 55~68 square meters
Supply Ability :
20000 square meters per month
Delivery Time :
45days
Packaging Details :
naked
Product name :
quanzhou ridge steel structure warehouse
Usage :
Industrial warehouse
Design Style :
Modern
Structure :
Steel Structure Frame Welded
purlin :
C.Z Shape Steel Channel
Feature :
Easy Operation
Roof :
Sandwich Panel. Single Steel Sheet
Wall :
Sandwich Panel. Single Steel Sheet
Install :
On line guidance
Description

ADVANTAGES OF STEEL STRUCTURE WAREHOUSE:

(1) Free design and architectural drawings provided;

(2) Durability, easy maintenance, designed life span for 50 years;

(3) Fast and easy assemble, online installation guidance provided;

(4) Elaborate and strong design, high wind ressistance performance;

(5) Thermal and noise insulation, water proof and fire prevention.

PRODUCT APPLICATION
Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse
A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding!
An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework.
SPECIFICATION FOR STEEL STRUCTURE BUILDING
Main Steel Frame Steel Column & Beam 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel
2. Surface: Hot Dip Galvanized or Painted;
3. Connection: All Bolts Connection;
Supporting System Roof Purlin C or Z Section Steel, Q235B
Wall Purlin C or Z Section Steel, Q235B
Bracing Steel Rod, Q235B
Cross Support Steel Rod, Q235B
Column Support Angle Steel; Steel Rod; Q235B
Angle Brace Angle steel,Q235B
Tie Bar Steel Pipe,Q235B
Roof & Wall System 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm;
Accessories Door Sliding; Rolled Up Door (Manual/Auto)
Window Aluminum Alloy; PVC;
Downspout PVC pipe;
Gutter Galvanized Steel Sheet; Stainless Steel
Ventilator Stainless Steel Turbine Ventilator
Skylight Belt FRP or PC semi-transparent Skylight Belt
Flash Color Steel Sheet
Fittings Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc

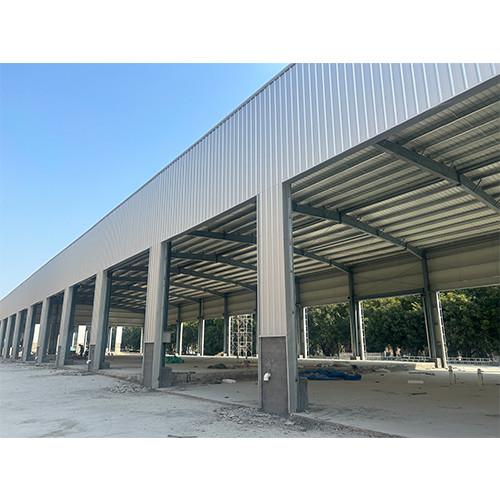

QUANZHOU RIDGE STEEL STRUCTURE COMPANY FINISHED PROJECTS

Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability

QUANZHOU RIDGE STEEL STRUCTURE COMPANY INTRODUCTION

Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability

RIDGE Steel structure Co. Ltd. was established in Quanzhou China, a professional manufacturer of steel structure with 20 years exporting experience, finished 1820 projects total 7600000 square meter.We have 2 modern factories with a total area of 21000 m2,20000 tons aunual produced capacity.

RIDGE Steel successfully completed projects covering America, Gemany,France, Australia,Canada,Kenya,Mozambique, swiden, Philipines , Maldives and Thailand etc.

RIDGE Steel provides one stop solutions including:

design, fabrication, erection and after-sales service of Pre-Engineered Building Steel Structure (PEBS).

The works that Ridge Steel Buildings undertakes including:

pre-engineered steel structure buildings for factory, warehouse, workshop, godown, mill, plant, showroom, farm shed, store, supermarket, sports centre, multi-storey building etc.

RIDGE Steel will take our full effort to supply you the best products and the best service, and hope to set up a long term business relationship with you!

PACKING & DELIVERY

Steel building structure should be carefully packed for full protection. Specifically, the main structural materials are generally installed in 40'OT containers, and accessories such as sky lights, fans, roof panels, and wall panels are shipped in 40'HC containers.

Modern Designed Workshop Drawing Steel Structure Warehouse With Graphic Project Solution Capability

If you have drawings, welcome to share drawings with us, quoation will be done based your drawings. Our excellent design team will design the steel structure workshop warehouse for you.

If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) which country? which city?
2 Size: Length*width* Eave height _____mm*_____mm*_____mm
3wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm, temperature range?
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high? or other?
7 thermal insulation If yes, EPS,fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity &size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max.Lifting height _____m
