Specifications
Brand Name :
LanJing
Model Number :
S01
Place of Origin :
China
MOQ :
100 Square Meters
Price :
US$60.00 100-4,999 Square Meters
Payment Terms :
L/C,T/T
Supply Ability :
2, 500t/M
Delivery Time :
Normally 30-45 Days After Shop Drawing Approved
Packaging Details :
Loaded into shipping container
Environment Protection :
Environmental Friendly Material
Project Solution Capability :
Graphic Design, 3D Model Design, Total Solution Fo
Software :
CAD, Tekla, Sketchup, Pkpm, Bim
Wall Color :
White, Blue, Optional Colors
Transport Package :
Loaded into shipping container
Specification :
Q355b. Q235b
Description

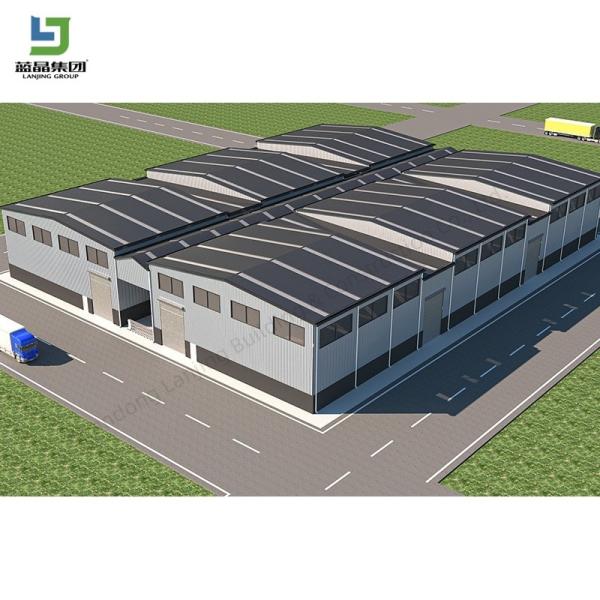

Cheap Green Prefab Light Steel Structure Warehouse Workshop

Steel structure building is one kind of product which can be design as per every proples' different need.

So, if you found that follows example pictures is not as same as your want, even it is very different.

do not worried,

No matter which kind of building you need,prefabricated houseswarehouse bigger, smaller or multi-storey,

Just tell me the data or drawing of building what you need.

We will make the exact design, quotation and rendering for you as soon as we can. (our group have more than 10 years experience on steel structure ).

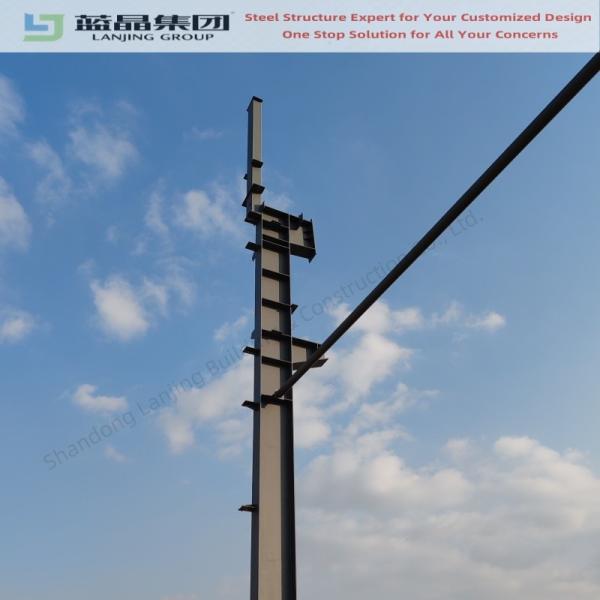

Main Structure Column/Beam Q235/Q355 Welded H Section Steel
Welding Automatic Submerged Arc Welding
Rust removing Shot blasting
Surface processing twice primer and twice finish Alkyd paint or hot dip galvanized
High strength bolt Grade 10.9

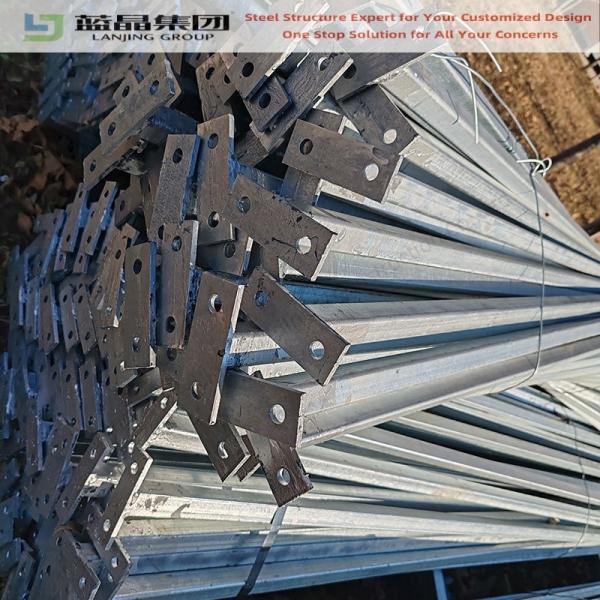

Substructure Angle brace steel Q235, process and painting
Cross bracing round bar, steel Q235 process and pre-galvanized
Tie bar round pipe, steel Q235 process and painting or pre-galvanized
Batter brace round bar, steel Q235 process and pre-galvanized
Ordinary bolt Galvanized bolt
Roof Purlin C channel or Z channel, steel Q235, galvanized
Roof panel (50mm~200mm) Sandwich panel , corrugated galvanized iron sheet
Transparent skylight FRP
Accessories Sealant, self-tapping screw
Edge cover Made of color steel sheet
Gutter Made of steel sheet with thickness 0.8mm, or PVC
Rainspout PVC pipe
Wall Purlin C channel or Z channel, steel Q235, galvanized
Wall panel (50~200mm) Sandwich panel , corrugated galvanized steel sheet
Accessories Sealant, self-tapping screw
Edge cover Made of color steel sheet
Ventilator Unpowered axial-flow ventilator or monitor roof
Door & Window Electric/manual rolling door/sliding door, PVC/ Aluminum alloy window
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
customized service and personalized design are welcomed!!

Cheap Green Prefab Light Steel Structure Warehouse WorkshopCheap Green Prefab Light Steel Structure Warehouse Workshop

  • Product Application

Steel is strong, versatile, and used in many types of buildings because it has many benefits.

Factory and Warehouse: Steel is commonly used for industrial buildings that need large open spaces.

Commerical Shop and Office: Steel structure building can be used in mall, supermarket, and office building because it supports large areas and tall structures.

Sports Stadiums and sport hall: Steel structure building can be used for stadium because it can span large areas without extra support. Bridge: Steel is used to build bridges because it is light and strong.

Airport and Train Station: Steel is used in these places because it provides large open spaces.

Home and Apartment: Steel structure can also used in residential buildings, especially high rise buildings.

In short, steel structures are adaptable and can serve multiple functions, including serving as warehouse, workshop, hangar, storage, shed, commercial buildings, hotel, office, hospital, school, stadium, exhibtion hall, steel structure sports hall, steel structure farm poultry chicken house for broiler or layer, barn for sheep, cow barn, garage, and various other uses.

Cheap Green Prefab Light Steel Structure Warehouse Workshop

  • Technical Support

Our Services:
1.Professional design and engineering team: Full solution for steel structure design.
2.Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality.
3.Site management & Installation supervision. If needed, We could send our engineers to help for the installation supervision.

Cheap Green Prefab Light Steel Structure Warehouse Workshop

Cheap Green Prefab Light Steel Structure Warehouse Workshop


  • Production Process

In the steel structure production process, we adhere to strict quality control at every stage, from the procurement of raw materials to the final product's delivery. Our technical team uses advanced production equipment and processes, aligning with international quality standards to ensure that every steel structure product possesses exceptional strength, durability, and stability. Through continuous quality monitoring and meticulous inspection procedures, we ensure that each project meets our clients' high standards, guaranteeing the safety and quality of the construction.

Cheap Green Prefab Light Steel Structure Warehouse Workshop

  • Packaging & Shipping

We considered the fragility, weight, and potential risks during transportation of different components when loading the products into the shipping containers, and took appropriate measures to ensure the safe and efficient unloading process for the customers.

Cheap Green Prefab Light Steel Structure Warehouse Workshop


  • Company Profile

Cheap Green Prefab Light Steel Structure Warehouse Workshop

Cheap Green Prefab Light Steel Structure Warehouse Workshop

Lanjing Group is a professional company specializing in steel structure buildings and prefabricated houses. Located in Shandong Province, China, the company covers an area of more than 12 hectares.

With over 10 years of production experience, we are a well-known steel structure manufacturer in China. Our products are sold nationwide and exported to more than 100 countries and regions.

We boast advanced steel structure production equipment and technology, as well as a team of professional designers. We provide tailored solutions based on your specific requirements, usage, and local climate.

Main Products

Steel structure Building

Prefabricated container house

Metal Sandwich Panels

Cheap Green Prefab Light Steel Structure Warehouse Workshop

  • FAQ

Q1: Is your company a factory or trading company?
A: We are manufacturer with foreign trade department, so you can get competitive price as well as professional service. And you are always welcomed to visit our factory at any time.

Q2: What are your main products?
A: We provide steel structure warehouse, workshop, plants,chicken house, prefabricated house, container type house, garage, aircraft hangar, sandwich panels and other construction materials. According to the requirements of different projects and clients, we will supply different designs and steel products.Customized design is available.

Q3: What's the quality assurance you provide and how do you make quality control?
A: Quality-first is our core value. LJ steel structure quality assurance team and quality control team have developed a rigorous quality inspection system based on ISO9001. Testing Laboratory guarantees qualified raw materials and high- standard product.

Q4: Do you provide installation instructions and on-site installation services?
A:Every project will provide the installation instructions, and if you need, we also would like to send our engineer to the local construction site for helping the installation work.

Q5: What should I provide to get a complete quotation?
A: Please provide information as follows:

1.Project location 5.Length (sidewall,m) 9.Window material, style,size
2.Snow load 6.Width (end wall, m) 10.Door material, style,size
3.Wind load 7.Wall Height (eave, m) 11.raining condition
4.Seismic magnitude 8.Middle column allowed or not 12.Crane needed or not
13.other information if necessary
