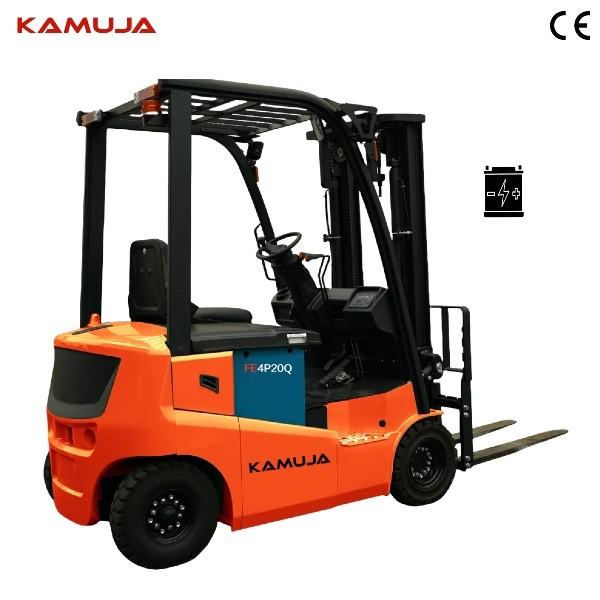

2000kg/2.0T Lead Acid Battery Forklift 48 Volt Battery Forklift 400A Or 460A
2000kg/2.0T Lead Acid Battery Forklift 48 Volt Battery Forklift 400A Or 460A
2000kg/2.0T Lead Acid Battery Forklift 48 Volt Battery Forklift 400A Or 460A
2000kg/2.0T Lead Acid Battery Forklift 48 Volt Battery Forklift 400A Or 460A
2000kg/2.0T Lead Acid Battery Forklift 48 Volt Battery Forklift 400A Or 460A
2000kg/2.0T Lead Acid Battery Forklift 48 Volt Battery Forklift 400A Or 460A
Specifications
Brand Name :
KAMUJA
Model Number :
FE4P20Q
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Packaging Details :
4 UNITS/20GP; 8UNITS/40GP & 40 HQ
Price :
USD 10K-12K/ UNIT
Condition :
New
Power souce :
AC Motor- Lead Acid Baterry
Max. lifting height :
standard 3m , options : 3.5M, 4M,4,5,5M in different costs
Fork length :
1070mm
Rated loading capacity :
2000kg
Warranty :
1 year or 2000 working hours which occurs first
Description

Express.Brochure.FE4P20Q.pdf

2000kg/2.0 Ton Electrical Lead Acid Baterry Forklift 48V 400A or 460A

INTRODUCTION

Q Series electric balance fork is combined others existing series respective advantages to meet the purpose of medium and light weight working conditions, while bringing comfortable and efficient driving experience. Batteries are available in two options, lead-acid batteries and smart lithium batteries. The same body can be freely chosen.

The whole center of gravity is lowered, and the height of the top guard is lowered, which facilitates the operation of the vehicle in the environment of limited height.

FEATURES

① DRIVE AC MAINTENANCE-FREE

Drive motor adopts AC motor, maintenance-free, strong power; Conventional DC motors require frequent carbon brush replacement, while KAMUJA all-AC motors do not require carbon brush replacement; With speed sensing and temperature sensing, the protection function is complete, and the reliability and life are greatly improved.

② SIDE EXIT BATTERY DESIGN

The battery can be replaced with another forklift, allowing for easy 24 hour continuous operation.

③ LOW CENTER OF GRAVITY DESIGN

The traditional system uses a transverse fan-shaped drive axle, parallel arrangement and large transmission ratio. The battery is sunk at the bottom of the frame, the vehicle height is 2080mm, and the stability is good.

④ LOW NOISE, GROUND VIBRATION DESIGN

The hydraulic system adopts low noise gear pump and full hydraulic power steering. Low noise and comfortable operation.

Steering bridge shock absorption design: flexible connection is adopted to effectively protect the vehicle system and extend the service life of the vehicle.

⑤ ELECTROMAGNETIC BRAKING MAKES DRIVING AND PARKING SAFER AND EASIER

The vehicle adopts the car control mode, electromagnetic braking, so that the driver's operation is more comfortable.

SPECIFICATIONS

Characteristic 1.1 Brand KAMUJA
1.2 Model FE4P20Q
1.3 Drive mode:electric (battery or power

supply),diesel,gasoline,gas,manual		 Motor
1.4 Operation mode:manual,walking,standing,

riding,picking		 Mount type
1.5 Rated load capacity Q(kg) 1500 2000
1.6 Load center distance C(mm) 500
Weight 2.1 Implicit battery (see 6.5)when self-weight kg 3180
Chassis 3.1 Tires:Solid rubber,super-elastomer,air tire,

polyurethane tire		 Solid/pneumatic

tire
3.2 Front wheel specification 18X7-8
3.3 Rear wheel specification 5.00-8-10PR
3.4 Number of wheels,front/rear wheels (X=

drive wheels)		 2×/2
3.5 Front wheel tread b10(mm) 980
3.6 The rear wheel base b11(mm) 920
Basic size 4.1 Gantry/fork tilt Angle,forward/back tilt a/β(°) 6/10
4.2 Gantry retracting height h1(mm) 1985
4.3 Free lifting height h2(mm) 130
4.4 Lifting height h3(mm) 3000
4.5 Gantry development height h4(mm) 3990
4.6 Top guard height h6(mm) 2075
4.7 Seat height h7(mm) 1065
4.8 Traction pin height h10(mm) 530
4.9 Overall length l1(mm) 3200
4.10 Body length (without fork) 12(mm 2130
4.11 Total width b1(mm) 1150
4.12 Fork size s/e/l(mm) 40/120/1070
4.13 Width of fork rack b3(mm) 1040
4.14 Ground clearance under the gantry m1(mm) 98
4.15 Ground clearance under the gantry m2(mm) 100
4.16 Working channel width,1000X1200 pallets

(1200 cross-fork placement)		 Ast(mm) 3576
4.17 Working channel width,800X1200 pallets

(1200 placed along the fork)		 Ast(mm) 3776
4.18 Radius of turning circle Wa(mm) 1990
Performance

parameter		 5.1 Travel speed,full/empty Km/h 11/13
5.2 ncrease speed,full/empty m/s 0.25/0.35
5.3 Descent speed,full/empty m/s 0.52/0.42
5.4 Maximum climb,S25 minutes full/no load % 12/15
5.5 Service brake Electromagnetic

brake
Electrical

Parameter		 6.1 Drive motor power S25 min KW 7
6.2 Increase motor power S3 by 15% KW 8.6
6.3 Battery standard DIN
6.4 Battery voltage/rated capacity K5 Volts/amps

per hour		 Lead

Acid:48/360(48/4

00,48/460)
Others 7.1 Drive control type AC
7.2 Work stress Mpa 14.5
7.3 The amount of oil L/min 30
7.4 Driver's ear noise level according to EN 12

053		 Decibe 72
