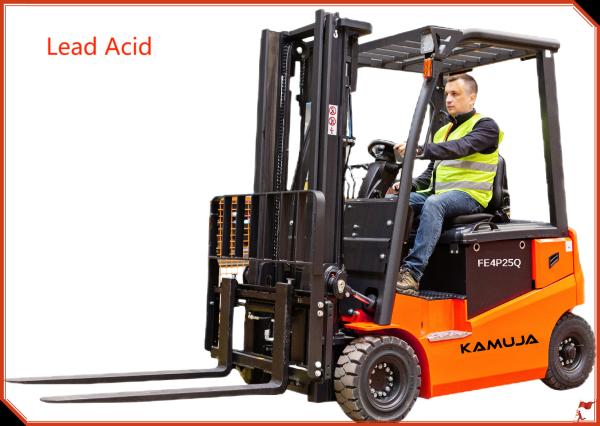

2.5 Ton Lead Acid Battery Forklift 80V/400A 2500kg Forklift
2.5 Ton Lead Acid Battery Forklift 80V/400A 2500kg Forklift
2.5 Ton Lead Acid Battery Forklift 80V/400A 2500kg Forklift
2.5 Ton Lead Acid Battery Forklift 80V/400A 2500kg Forklift
2.5 Ton Lead Acid Battery Forklift 80V/400A 2500kg Forklift
2.5 Ton Lead Acid Battery Forklift 80V/400A 2500kg Forklift
Specifications
Brand Name :
KAMUJA
Model Number :
FE4P25Q
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Packaging Details :
2 UNITS/20GP; 4-6 UNITS/40GP & 40 HQ
Price :
USD 12K-14K/ UNIT
Condition :
New
Power souce :
AC Motor- Lead Acid Baterry
Max. lifting height :
standard 3m , options : Free II & III Mast- 3.5~6.5M in different costs
Fork length :
1070mm
Rated loading capacity :
2500kg
Warranty :
1 Year or 2000 Working Hours
Description

Express.Brochure.FE4P25Q.pdf

2500kg/2.5 Ton Electrical - Lead Acid Baterry Forklift 80V/400A

INTRODUCTION

Q Series electric balance fork is combined others existing series respective advantages to meet the purpose of medium and light weight working conditions, while bringing comfortable and efficient driving experience. Batteries are available in two options, lead-acid batteries and smart lithium batteries. The same body can be freely chosen.

The whole center of gravity is lowered, and the height of the top guard is lowered, which facilitates the operation of the vehicle in the environment of limited height.

FEATURES

① DRIVE AC MAINTENANCE-FREE

Drive motor adopts AC motor, maintenance-free, strong power; Conventional DC motors require frequent carbon brush replacement, while KAMUJA all-AC motors do not require carbon brush replacement; With speed sensing and temperature sensing, the protection function is complete, and the reliability and life are greatly improved.

② SIDE EXIT BATTERY DESIGN

The battery can be replaced with another forklift, allowing for easy 24 hour continuous operation.

③ LOW CENTER OF GRAVITY DESIGN

The traditional system uses a transverse fan-shaped drive axle, parallel arrangement and large transmission ratio. The battery is sunk at the bottom of the frame, the vehicle height is 2080mm, and the stability is good.

④ LOW NOISE, GROUND VIBRATION DESIGN

The hydraulic system adopts low noise gear pump and full hydraulic power steering. Low noise and comfortable operation.

Steering bridge shock absorption design: flexible connection is adopted to effectively protect the vehicle system and extend the service life of the vehicle.

⑤ ELECTROMAGNETIC BRAKING MAKES DRIVING AND PARKING SAFER AND EASIER

The vehicle adopts the car control mode, electromagnetic braking, so that the driver's operation is more comfortable.


SPECIFICATIONS

Characteristic 1.1 Brand KAMUJA
1.2 Model FE4P25Q
1.3 Drive mode:electric (battery or power

supply),diesel,gasoline,gas,manual		 Moto
1.4 Operation mode:manual,walking,standing,

riding,picking		 Mount type
1.5 Rated load capacity Q(kg) 2500
1.6 Load center distance C(mm) 500
1.7 Front overhang X(mm) 478
1.8 Wheel base Y(mm) 1620
Weight 2.1 Implicit battery (see 6.5)when self-weight kg 3600
2.2 Bridge load at full load,front/rear kg 5500/600
2.3 Bridge load when unloaded,front/back kg 1540/2060
Chassis 3.1 Tires:Solid rubber,super-elastomer,air tire,

polyurethane tire		 Solid/pneumatic

tire
3.2 Front wheel specification 7.00-12-12PR
3.3 Rear wheel specification 6.00-9-10PR
3.4 Number of wheels,front/rear wheels (x=drive

wheels)		 2x/2
3.5 Front wheel tread b10(mm) 973
3.6 The rear wheel base b11(mm) 982
Basic size 4.1 Gantry/fork tilt Angle,forward/back tilt α/β() 6/10
4.2 Gantry retracting height h1(mm) 2070
4.3 Free lifting height h2(mm) 135
4.4 Lifting height h3(mm) 3000
4.5 Gantry development height h4(mm) 3974
4.6 Top guard height h6(mm) 2150
4.7 Seat height h7(mm) 1130
4.8 Traction pin height h10(mm) 580
4.9 Overall length l1(mm) 3568
4.10 Body length (without fork) l2(mm) 2498
4.11 Total width b1(mm) 1150
4.12 Fork size s/e/l(mm) 40/120/1070
4.13 Width of fork rack b3(mm) 1100
4.14 Ground clearance under the gantry m1(mm) 135
4.15 Ground clearance under the gantry m2(mm) 150
4.16 Working channel width,1000X1200 pallets (1200

cross-fork placement)		 Ast(mm) 3849
4.17 Working channel width,800X1200 pallets (1200

placed along the fork)		 Ast(mm) 3997
4.18 Radius of turning circle Wa(mm) 2230
Performance

Parameter		 5.1 Travel speed,full/empty Km/h 12/13
5.2 Increase speed,full/empty m/s 0.26/0.34
5.3 Descent speed,full/empty m/s <0.6
5.4 Traction,full/empty S260 minutes 3100/2100
5.5 Maximum climb,S25 minutes full/no load % 15/15
5.6 Service brake Electromagnetic

brake
Electrical

Parameter		 6.1 Drive motor power S25 min KW 10
6.2 Increase motor power S3 by 15% KW 12
6.3 Battery standard DIN
6.4 Battery voltage/rated capacity K5 Volts/amps

per hour		 Lead A cid:80/400
6.5 Battery weight kg 200
6.6 Battery size,length/width/height mm 770/600/680
Others 7.1 Drive control type AC
7.2 Work stress Mpa 17.5
7.3 The amount of oil L/min 36
7.4 Driver's ear noise level according to EN 12053 Decibel 74
