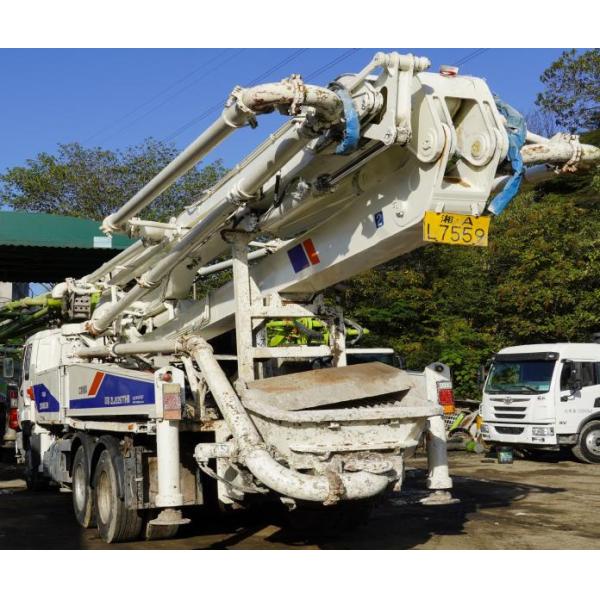

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
Specifications
Brand Name :
Zoomlion
Model Number :
ZLJ5230THBTE 38X-5RZ
Certification :
/
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD 40K - 200K
Payment Terms :
T/T
Supply Ability :
TBD
Delivery Time :
30 DAYS
Packaging Details :
export package
Max. Theor. output: :
140/90m3/h
Rated working pressure: :
35MPa
Hopper capacity: :
550L
Concrete cylinder dia.×stroke: :
Φ230×2100
Max. aggregate dimension: :
40mm
Placing depth: :
38m
Outriggers span (front×rear×side): :
6190×8345×7045mm
Chassis model: :
ISUZU CYZ51Q 6×4
Emission: :
Euro III
Engine power: :
265/1800 kW/(r/min)
Overall dimensions: :
11980×2500×3910mm
Status: :
READY FOR WORK
Model :
ZLJ5230THBTE 37X-5RZ
Description

PART I. INTRODUCTION OF KAMUJA

USTED TRUCK-MOUNTED CONCRETE PUMP 38M & REFURBISH SERIVE ZLJ5230THBTE 38X-5RZ

Hunan Kamuja Machinery & Equipment Co.,Ltd is founded by a group of passionate professionals who have an average of more than 10 years working experience in the construction machinery industry and established close relationship with numerous clients from all over the world.

We are a compnay that is committed to inspiring to create value through our products and service to customer and providing thorough solutions for both brandnew and used machines in the Construction, also Industrial logistics sectors.

We offer comprehensive service for the used construction machineries, such as Pre- Order Inspection, all kinds of reburbishing services that meet different customer’s requirements, Pre-Delivery Inspection, Spare Parts, On-line Traning & Instruction

Service, Optional On-site Service.

With the commitment to provide quality and reliable new machines, KAMUJA carefully select the vendors and work closely with those who have international background and reputation. KAMUJA brand new forklift and generators are flexible for customization according to our partners and customers requests.

We are an authorized ventor of one of the leading Chinese tower crane manufacturers who started the first tower crane production since 1958, and enjoyed worldwide reputation. Together with our advanced factory, KAMUJA team will provide strong supports to the customers to achieve safe and

cost-effective construction for their projects.

Qualification

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

PART II. CONCRETE MACHINERY EXPERTISE

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

★ KAMUJA has a specialized team and warehouse to refurbish China Made Concrete Machinery, among the

most famous brand, Zoomlion and Sany. We normally have in stock under own property various models with different year of manufacturing, ready for sale as origin all statues or furnished.

★ Most Commercial Models and Configurations:

- 37m/38m Zoomlion w/. ISUZU, Sinotruk Chassis, EURO III

- 40m Zoomlion w/. FAW Chasis, EURO V

- 43m/47m Zoomlion w/. FAW, ISUZU, Mercedez Benz Chasis, EURO III, V.

- 49m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO V

- 52m Zoomlion w/. Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 56m Zoomlion w/. Scania, Merdedez Benz Chasis, Sany w/. own brand chassis, EURO III, V

- 62m/63m Zoomlion and Sany w/. Scania, Mercedez Benz chassis, EURO III,IV

★Year of manufacturer: 2011-2021

★ Refurbish Class: Premium, Medium, Standard.

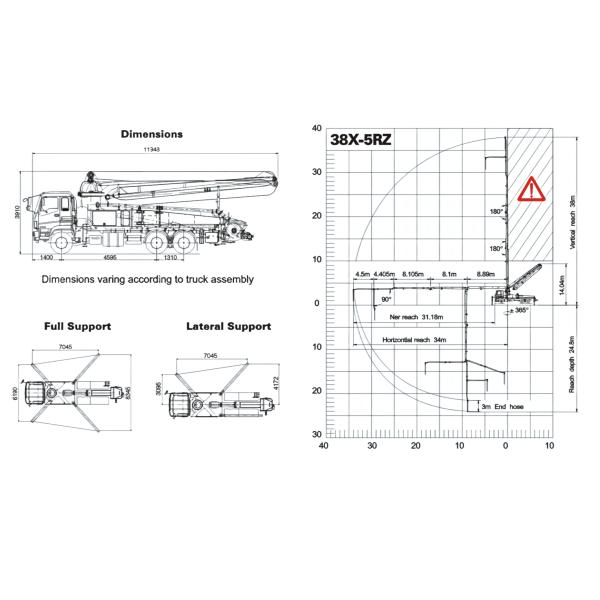

PART IV. SPECIFICATIONS

Model ZLJ5230THBTE 38X-5RZ
Pumping system Max. Theor. output m3/h 100/60
Max. Theor. concrete output Pressure MPa 8/15
Rated working pressure MPa 35
Pumping frequency min- 1 25/14
Hopper capacity L 550
Filling height 1540
Hydraulic system type Open loop
Distribution valve S valve
Oil cylinder dia. ×stroke mm Φ150×1650
Concrete cylinder dia. ×stroke mm Φ230×1650
Hydraulic oil cooling Air cooling
Recommended concrete slump cm 12~23
Max. aggregate dimension mm 40
Placing boom Structure type 37X-5RZ
Placing depth m 36.5
Horizontal distance m 32.15
Placing depth m 24.95
Slewing angle ±270 °
Boom number 5
The length of boom section mm 7280/5920/5670/6880/6750
Sections folding angle 90°/180°/180°/240°/195°
Pipe diameter mm 125
End hose length mm 3000
Min. height of opening placing boom mm 7790
Outriggers span (front×rear×side) mm 6190mm×7740mm×6780mm
Chassis and the whole machine Chassis model ZZ5231N521GE1
Wheelbase mm 5200
Engine type MC07.31-50
Engine power kW/(r/min) 228/2300
Engine moment N.m/(r/min) 1230 /(1200～1800)
Maximum displacement cc 6870
Oil tank cubage L 300
Tail gas exhaust standard Euro. V
Total weight kg 23000
Overall dimensions mm 9840×2530×3905
Others Lubrication mode Automatic lubrication
Oil tank volume L 630
Control mode Manual+remote control
Maximum water pressure MPa 6
Water tank volume L 350
Pipe cleaning mode Water cleaning/dry cleaning

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

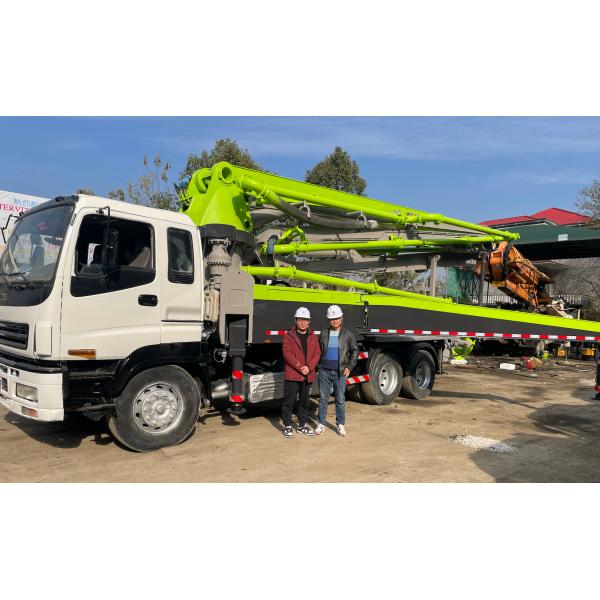

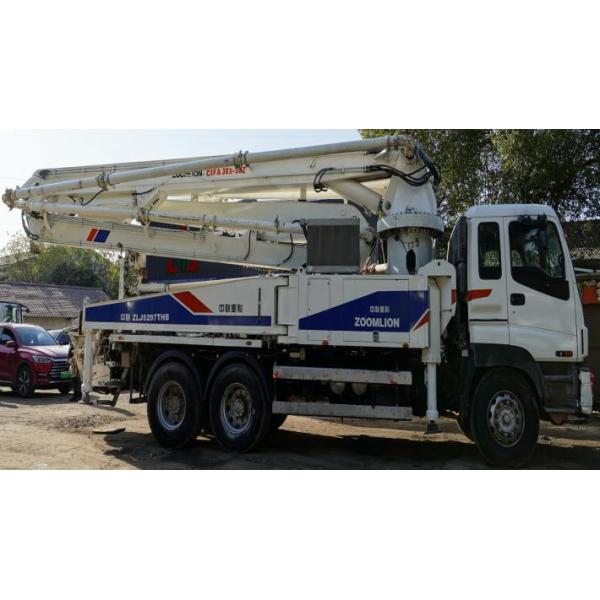

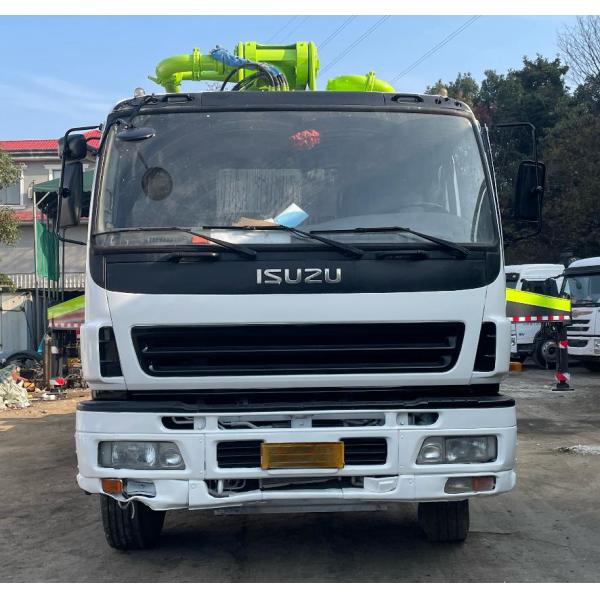

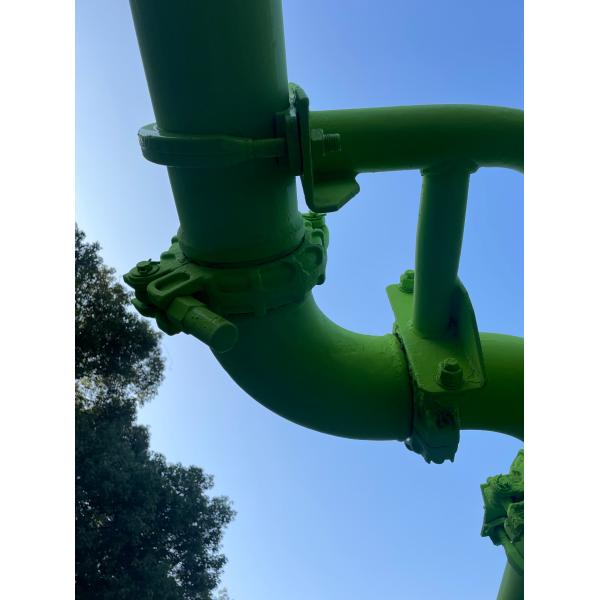

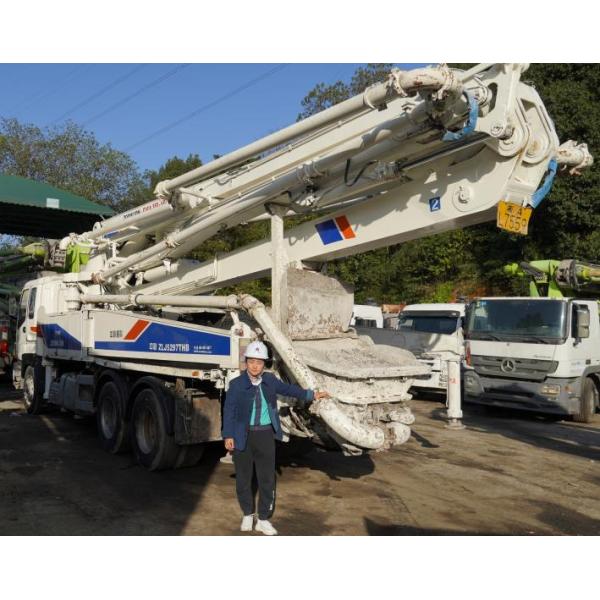

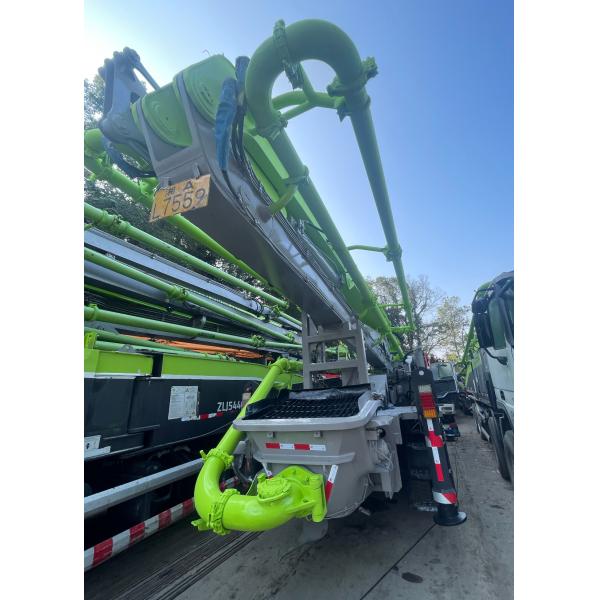

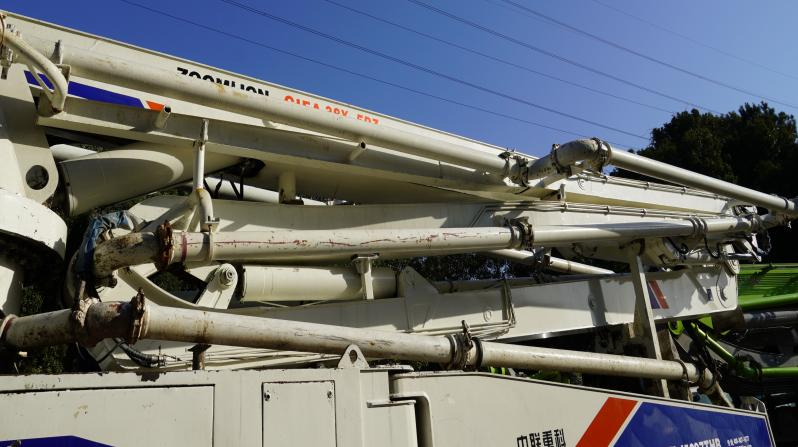

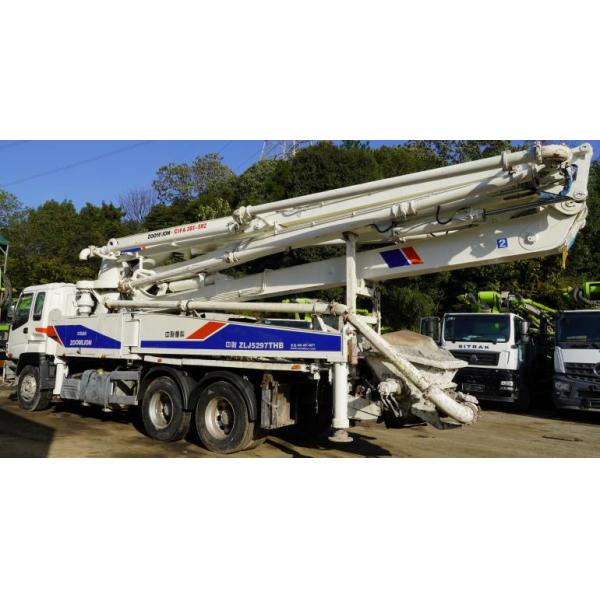

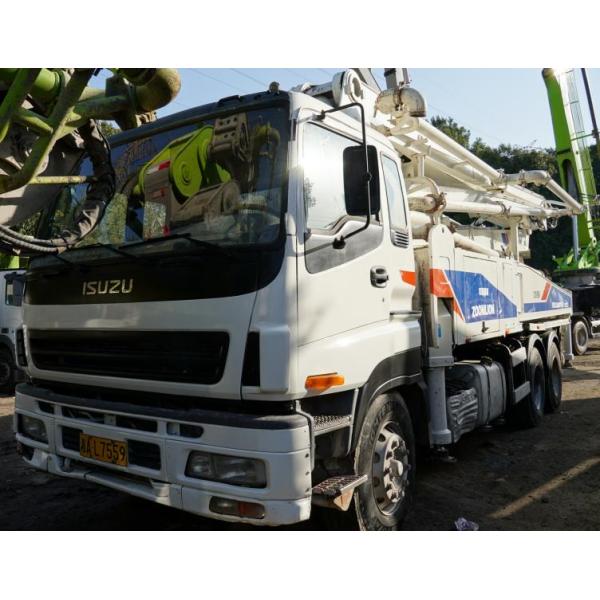

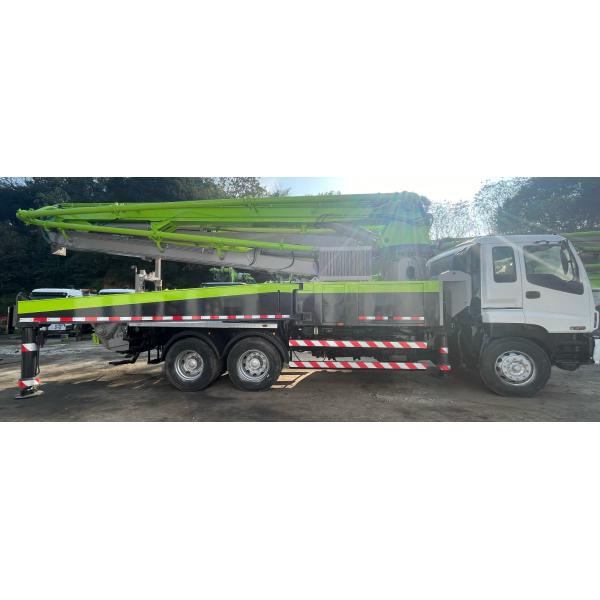

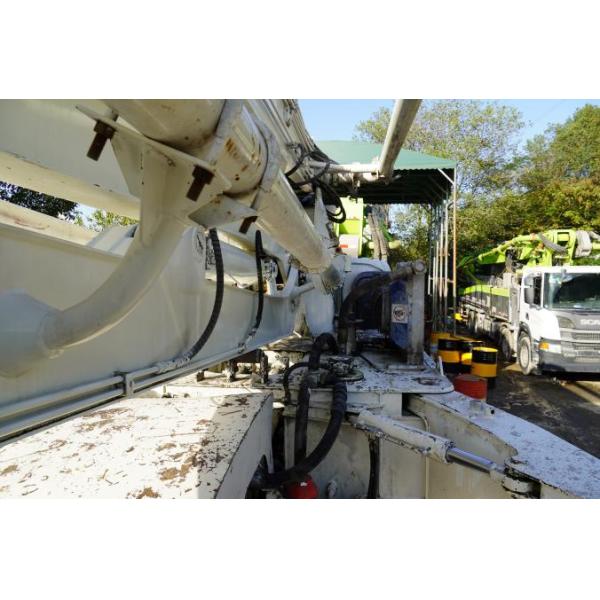

PART V. REAL PHOTOS

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

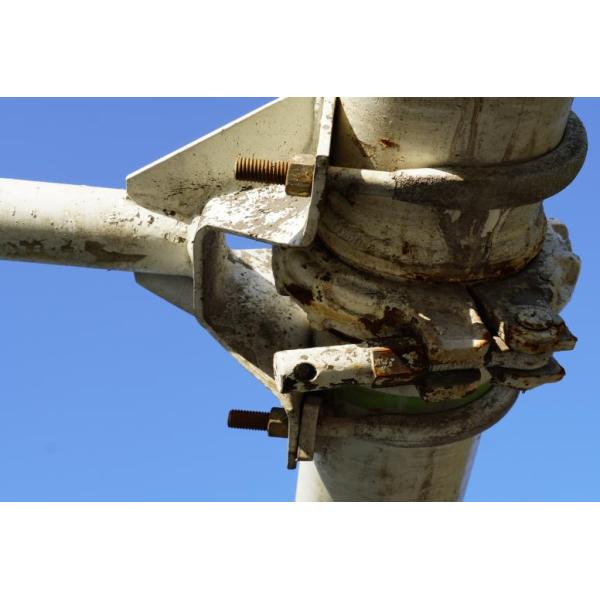

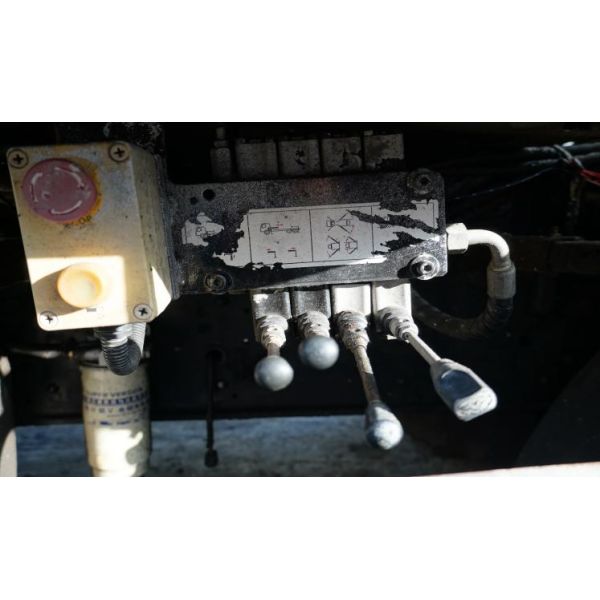

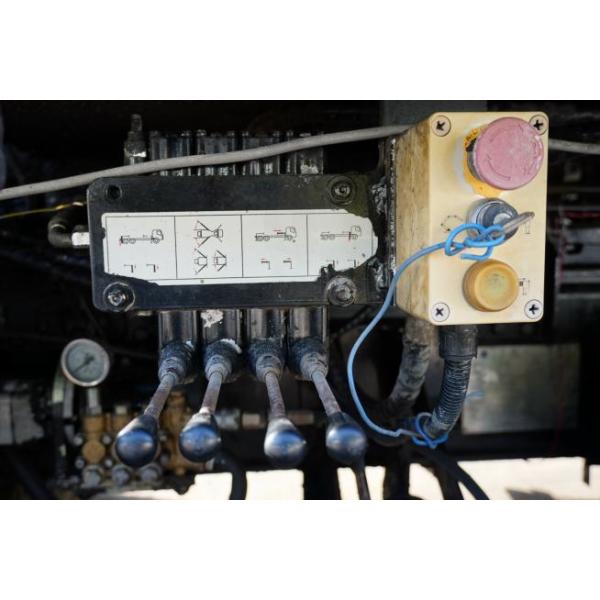

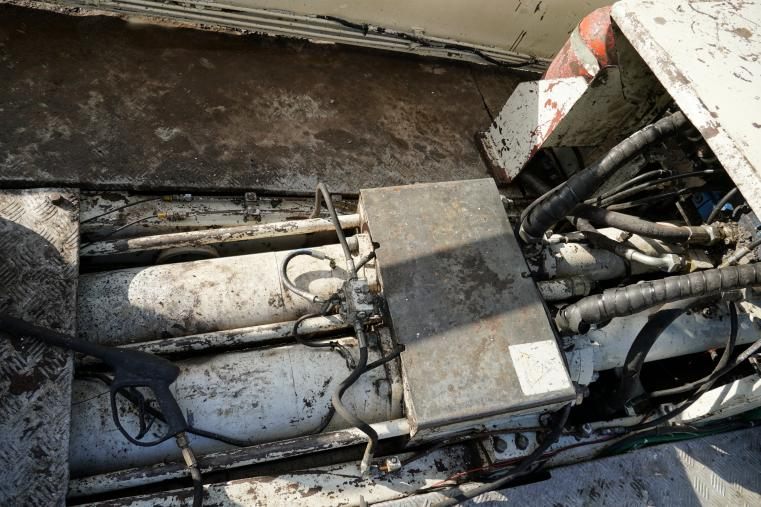

PART VI. VEHICLE MAINTENANCE TRACKING PHOTOS

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M WhiteZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White

ZLJ5230THBTE 38X-5RZ Used Truck Concrete Pump 38M White
