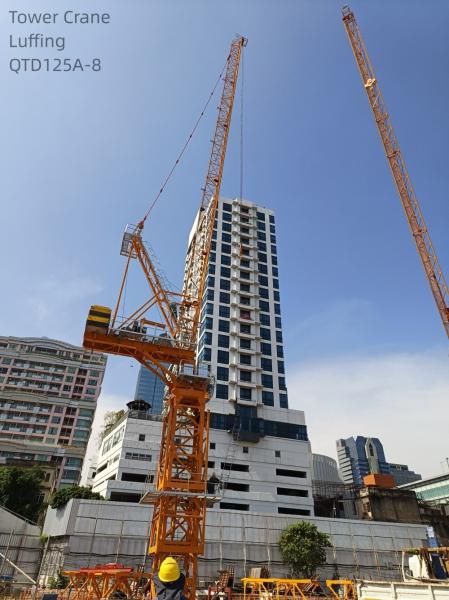

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8
Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8
Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8
Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8
Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8
Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8
Specifications
Brand Name :
NTP
Model Number :
QTD125A-8
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Price :
TBD(USD)
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Packaging Details :
Export Package
Model :
QTD125A-8
Max. Radium :
50m
Maximum Hoisting Capacity :
8t
Tip Load :
1.5t
Mast Section :
L46(1.6*1.6*3m)
Rated Hoisting Moment :
1,250 kN·m
Description

Luffing Tower Crane QTD125-8 Max. Capacity Load 8 ton

FACTORY INTRODUCTION

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

The manufacture is founded in 1958, is an industry-leading enterprise integrating the R&D, manufacturing, installation, transformation and maintenance of construction hoisting machinery, and also one of the first four manufacturers in China to obtain the manufacture license o construction machinery.

Two production bases in south of China, covering an area of 360,000 square meters and equipped with more than 1,200 sets of advanced processing equipment, with an annual output of over RMB 3 billion.

TYPES

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

Outer cage type tower crane:

The standard sections ofthe tower body can be installed and removed as a whole, making such a tower crane easy to connection and rellable in operation, quick in lifting up and down.

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

Internal climbing type tower crane:

The tower crane is installed inside a building and climbs upward with the help ofthe building structure without any independent foundation, additional attachment devices or standard sections. Such a tower crane features a low cost, a wider construction coverage area and higher work efficiency Furthermore, can be transformed into an attached tower crane at a low cost.

QTD125A-8 Luffing Tower Cranes

Drawing of Tower Crane Structure:

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

Tower:

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

Load Diagram

Outer Cage Luffing Crane 8T Luffing Boom Tower Crane QTD125-8

Main Technical Parameters

Hoisting
performance		 Rated hoisting moment 1250kN.m
Maximum hoisting capacity 8 t
Mechanism
performance		 2Falls 3Falls 4Falls Motor
t m/min t m/min t m/min
Lifting 4 0~40 6 0~26.5 8 0~20 30Kw
1 0~98 1.5 0~65 2 0~49
Trolleying 15° ~ 85° ≤2.8min 30Kw
Slewing 0~0.7 r/min 2*5.5Kw

※ The technical information may vary by the update policy, the changes will be without prior notice.

Download brochure:

Express.Brochure.QTD125A-8.pdf
