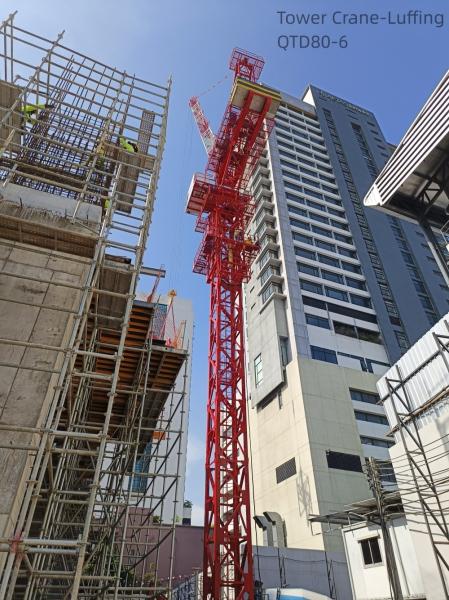

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers
Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers
Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers
Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers
Specifications
Brand Name :
NTP
Model Number :
QTD80-6
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Price :
TBD(USD)
Packaging Details :
Export Package
Model :
QTD80-6
Max. Radium :
45m
Maximum Hoisting Capacity :
6t
Tip Load :
1.2t
Mast Section :
L46(1.6*1.6*3m)
Rated Hoisting Moment :
800kN·m
Description

Luffing Tower Crane QTD80-6 Max. Capacity Load 6 ton

FACTORYINTRODUCTION

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building SkyscrapersMax. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers

The manufacture is founded in 1958, is an industry-leading enterprise integrating the R&D, manufacturing, installation, transformation and maintenance of construction hoisting machinery, and also one of the first four manufacturers in China to obtain the manufacture license o construction machinery.

Two production bases in south of China, covering an area of 360,000 square meters and equipped with more than 1,200 sets of advanced processing equipment, with an annual output of over RMB 3 billion.

TYPES

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers

Outer cage type tower crane:

The standard sections ofthe tower body can be installed and removed as a whole, making such a tower crane easy to connection and rellable in operation, quick in lifting up and down.

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers

Internal climbing type tower crane:

The tower crane is installed inside a building and climbs upward with the help ofthe building structure without any independent foundation, additional attachment devices or standard sections. Such a tower crane features a low cost, a wider construction coverage area and higher work efficiency Furthermore, can be transformed into an attached tower crane at a low cost.

QTD80-6 Luffing Tower Cranes

Drawing of Tower Crane Structure:

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers

Tower:

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building SkyscrapersMax. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers

Sectional dimensions of tower
section(m×m×m)		 Reinforced
section		 Standard section FSH(m) Max. Height
1.6* 1.6*3.0(outer cage) 0 9 36.56 159.56*

Load Diagram

Max. Load 6 Ton Luffing Tower QTD80-6 Cranes Building Skyscrapers

Main Technical Parameters

Hoisting
performance		 Rated hoisting moment 800kN.m
Maximum hoisting capacity 6 t
Mechanism
performance		 2Fall 4Fall Motor
t m/min t m/min
Lifting 3 0~38 6 0~ 19 22Kw
1.5 0~76 3 0~38
Trolleying 15 .~85 . 2.4 min 22Kw
Slewing 0~0.6r/min 95N.m

※ The technical information may vary by the update policy, the changes will be without prior notice.

Download brochure:

Express.Brochure.QTD80-6.pdf
