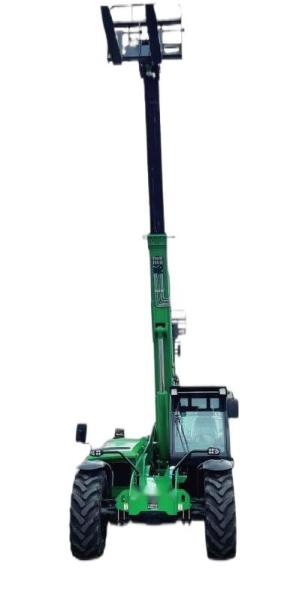

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck
Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck
Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck
Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck
Specifications
Brand Name :
KAMUJA
Model Number :
HNT4017-4Z
Certification :
CNAS, IAF
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
TBD(USD)
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Packaging Details :
export package
Type :
DIESEL FORKLIFT
Max. lifting height :
17000mm
Rated loading capacity :
4000kg
Engine :
Cummins
Warranty :
1 Year
Fork size :
1000*50*150 mm
Description

Multi-purpose Off-road Telescopic Forklift load 4t Lifting height17m

INTRODUCTION

HNT 4017-4Z/HNT 7017-4Z multi-purpose off-road telescopic forklift is widely used in various industries such as construction,agriculture,mining,port logistics,municipal fire protection,etc.

FEATURES

  • Equipping with Cummins China National Ill Standard turbocharged diesel engine and high-pres sure common rail fuel system,which has strong power.energy saving and environmental protection,and meets the requirements efficient operation.

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

  • The power system is equipped with an air-to-air cooling radiator to reduce the intake temperature of the engine,increase the intake air volume,and increase the power of the engine.

  • Adjustable steering wheel,aviation OPS seat, ergonomics,more comfortable sitting

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

  • Multi-functional LCD monitor comprehensively monitor the working status of the engine,such as speed,oil pres sure,oil temperature, water temperature,liquid level,etc.

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

  • Equipped with a HD reversing camera system,mare handy in complex operating environments Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

  • The shape of the whole machine is grand,elegant and smooth;the luxurious wide-view cab with sunroof is convenient for the driver to observe around,with low noise and good sealing.

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

  • The operating device adopts a large -section,high-strength box-shaped structure, and the precise control of lifting, telescopic, and tilting movements is realized through the pilot. Two or more box-shaped telescopic working arms are selected according to different lifting heights

The static hydrostatic pilot control system is adopted,and equipped with hydraulic Lifting balance feature.It has good automatic adaptability and maneuverability; the closed plunger pump,electronically controlled muti-way valve,hydraulic motor,hydraulic cylinder,and electronically controlled pilot control valve all adopt well-known brands.

Equipped with Cascade high-strength forks,which are stronger and more wear-resistant,and can double the service life.

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

Equipped with off-road herringbone pattern tires,and the front and rear axles can swing around the center,which has good traction performance,passing performance and off-road performance.

Off Road Telescopic Forklift 4t 17m Height Telescopic Fork Truck

Tolerance HNT4017-4Z
Basic parameters Rated load kg 4000
Load center mm 500
Load capacity @max.Forward reach kg



一		 400
Max.Lifting height mm 1.50% 16510(with outrigger)
mm 1.50% 16625(without outrigger)
Max.Horizontal reach(without fork) mm 1.50% 11265
Min.Ground clearance mm 1.50% 410
Min.Turning radius (outer tire center) mm 1.50% 5750
Angle Boom frame upward angle ° ±1 78
Boom frame downwardangle
°		 ±1 -2
Operating weight kg 5% 15000
Dimension Length (without fork) mm 2% 6200
Width mm 2% 2500
Height mm 2% 2560
Wheel base mm 2% 3070
Front wheeltread mm 2% 2090
Rear wheel tread mm 2% 2090
Fork size L*W*T mm - 1000*50*150
Engine DF Cummins QSB3.9-C125-30 - - OSB3.9-C125
Rated power kw/rpm - 9312200
Transmission type Hydraulic static transmission
Driving system Max.Travelling speed (unloaded) km/h 10% 25
Gradeability % - 25
Tier Front2 pcsFront Wheel - - -16/70-24-24PR
Rear 2 pcsRear Wheel - - -16/70-24-24PR
Overall width(with outrigger mm 10% 3790
Frame leveling ° 5% +-8
Capacity Hydraulic oil tank L - 220
Fuel tank L - 130

Load Charts
Max.Lifting height(with outrigger) 17000mm
Rated load capacity 4000kg
Rated load at Max.Lifting height(with outrigger) 2000kg
Rated load at Max.Lifting height(without outrigger) 1500kg
Rated load at Max.Horizontal reach(without outrigger) 800kg
Rated load at Max.Horizontal reach(with outrigger) 400kg
