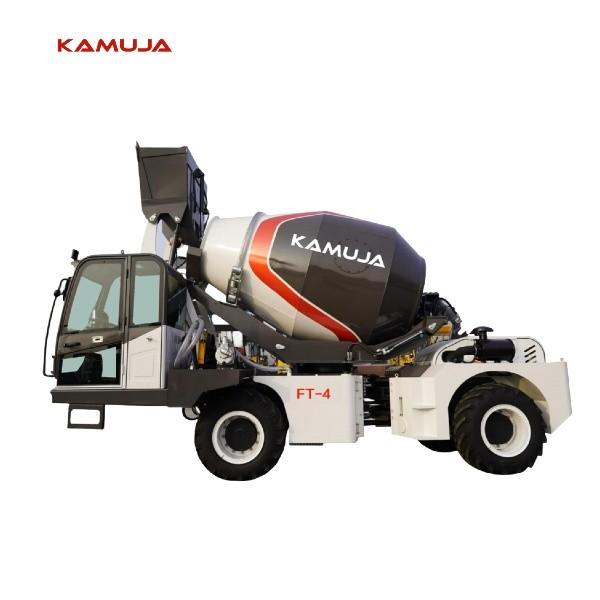

4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer
4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer
4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer
4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer
4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer
4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer
Specifications
Brand Name :
KAMUJA
Model Number :
FT-4
Certification :
CNAS, IAF
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
25K-26K
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
10-15 DAYS
Packaging Details :
1 UNITS/ 40 HQ
Capacity :
4 cubic meters/5800L
Chassis Type :
Truck mounted
Control System :
Fully automatic
Discharge Method :
Hydraulic, electrical
Power Source :
Diesel
Warranty :
1 year
Water Supply System :
Automatic
Cool System :
Water-cooling,dry air filter
Description

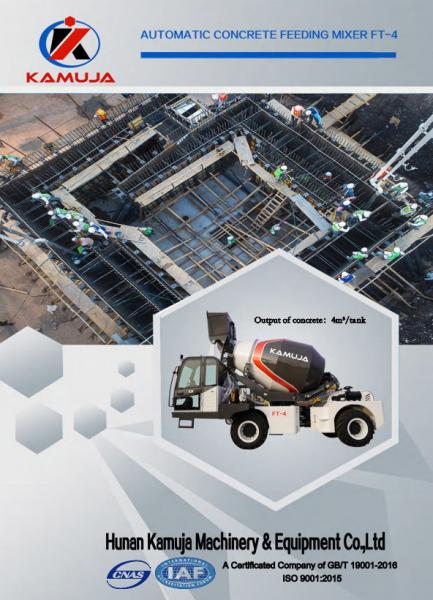

Express.Brochure.FT-4.pdf

Automatic Concrete Feeding Mixer-Output of concrete:4m³/tank

OVERALL

4m3 Automatic Concrete Mixer Machine 5800L Trailer Mounted Volumetric Concrete Mixer

SPECIFICATIONS

Item Specification Unit FT-4
Diesel Engine Type YCD4J22T-130
Total displacement cylinders 4580cc,4-in-line
Injection Direct injection and mechanical control
Cooling system Water-cooling,dry air filter
Maximum power Kw 95
Maximum torque N-m/r/min 495/1800
Electric System Generator 28v-1260W 45A
Battery 2*12V-60AH(272A)
Speed The first high speed/second high speed Km/h 0-17/0-33
The first low speed/second low speed Km/h 0-6/0-12
Axle and Tyre Rear axle oscillating ± 10°
Tyre 18/70-20
Mixing and Unloading The geometrical volume of drum L 5800
The rotation speed of drum r/min 25
Equipment Hydraulic System Maximum flow rate ml/r 40/80
Maximum pressure Map 20
Loading Capacity ㎥ 0.56
Times 8
Maintenance and Oil filling Fuel tank L 158
Total hydraulic system capacity L 158
Engine L 16
Weight Operating weight kg 7760
Max Weight kg 17760
Load-carrying capacity kg 10000
Steering Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering.
4*4 Four-Wheel Drive Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Brakes External disc brake and emergency brake acting on four wheels, independent dual circuit brake and hand-control to braking.
Water system

Hydraulic centrifugal self suction pump injection, the capacity is 14-16m³/h,

Inside : it is 150L/min.

The total capacity of two connected water tanks positioned opposite is 540L

Visual flowmeter, the water intake of the roller by hand-control.
Cab Closed cab with heating system,tilting front window, humanized seat flexible suspension and height adjustment are provided.
