360 Degree Spider Placing Boom Kamuja 17m 21m Radius Spider Concrete Placer

Specifications

Brand Name :

KAMUJA

Model Number :

HG17B-3R-II/HG21B-3R

Certification :

CNAS, IAF

Place of Origin :

CHINA

MOQ :

1 UNIT

Price :

TBD(USD)

Payment Terms :

T/T

Supply Ability :

No limited

Delivery Time :

30 DAYS

Packaging Details :

export package

Power :

Electronic

Power supply :

380v 50Hz

Application :

Construction Industry Placing (concrete)

Max. load :

1520kg, 5850kg

Description

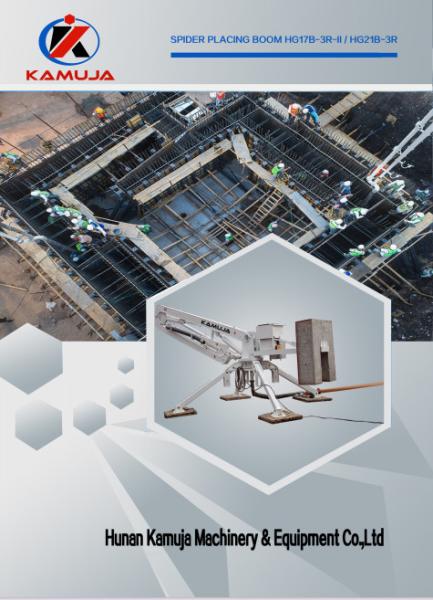

Express.Brochure.SpiderPlacingBoom.pdf

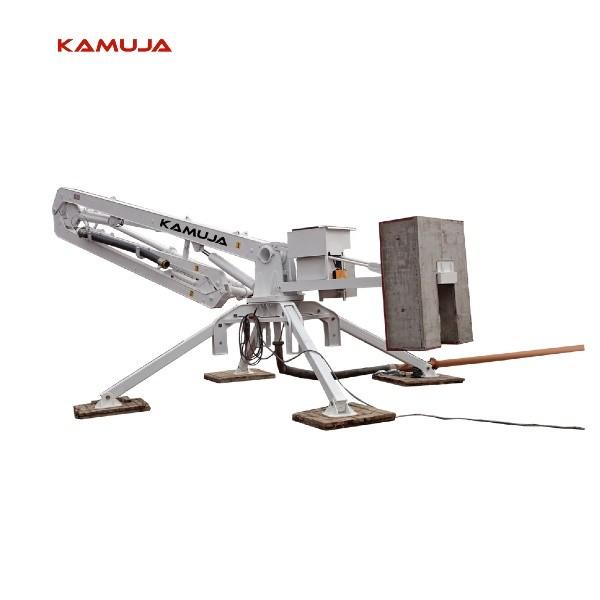

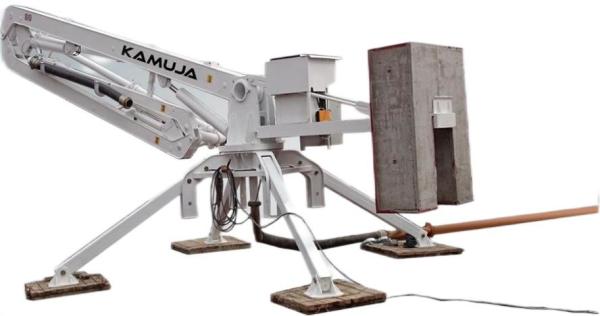

Kamuja Spider Placing Boom 360° Slewing Range, Placing Radius 17m ,21m

FEATURES

① Three arms design'*R" folding, The machine is fully driven by hydraulic, and can slew flexibly with wide working range

② Two modes of operation: radio remote control and cable remote control, easy to operate.

③ The total weight is light, customer can lifting it easily on the job site.

④ The bottom frame is inclined outrigger structure, the working state is table and fixed.

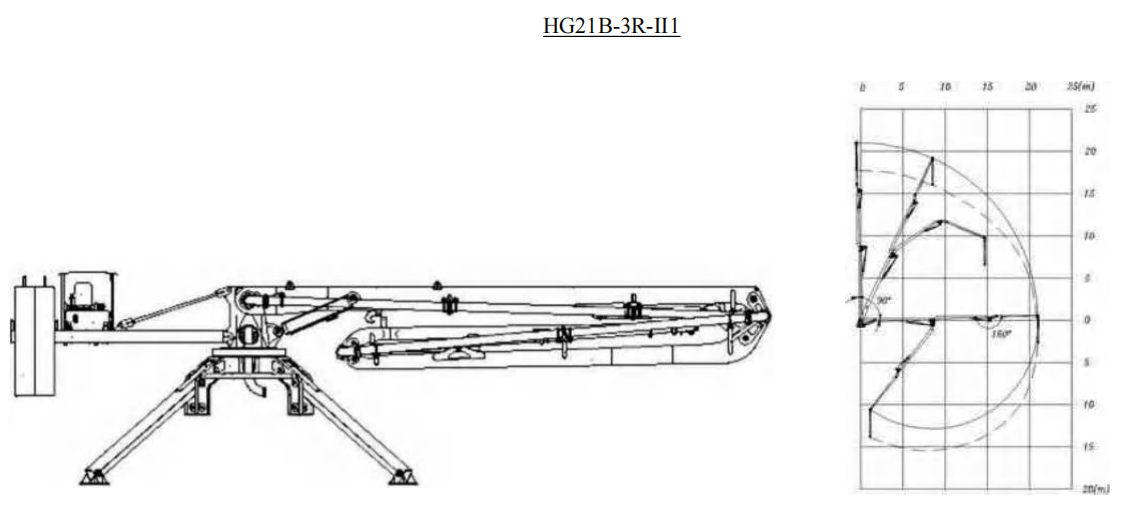

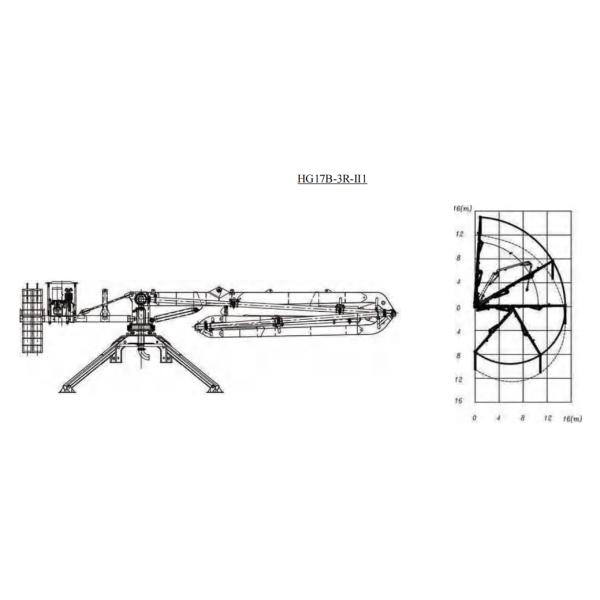

STRUCTURE AND SCOPE OF WORK

SPECIFICATIONS

ITEMS			UNITS	HG17B-3R-II	HG21B-3R
Performance	Max Radius of Placing Boom		m	17	21
	Free standing Height		m	2.7	3
	Slewing Range		/	360°	360°
	Circumstance Temperature		°C	-20-55	-20-55
	Power(subject to Customer)		/	380V/50HZ	380V/50HZ
	Delivery Pipeline Diameter		mmxmm	0133x4.5	0)133x4.5
	Delivery Hose Diameter		"xmm	5" x 3000	5"x3000
Boom	1 st Section	Length	m	7.1	8.4
		Articulation	/	0〜86°	0〜90
	2nd Section	Length	m	5.5	6.9
		Articulation	/	0~180°	0~180.
	3rd Section	Length	m	4.5	5.7
		Articulation	/	0°~180°	0.~180.
Type of Hydraulic Oil	Circumstance Temperature 5°C-55°C		°C	Hm46 Anti-wear hydraulic oil
	Circumstance Temperature -20°C-5°C		°C	Hm32 Anti-wear hydraulic oil
Motor	Power		kW	5.5	7.5
Hydraulic Pressure			MPa	25	28
Mode of Slewing			/	Turbo Worm Drive	Gear Slewing
Application scenario			/	Mobile
Total Weight			kg	6500	9150
Max Lifting Unit			kg	1520	5850
