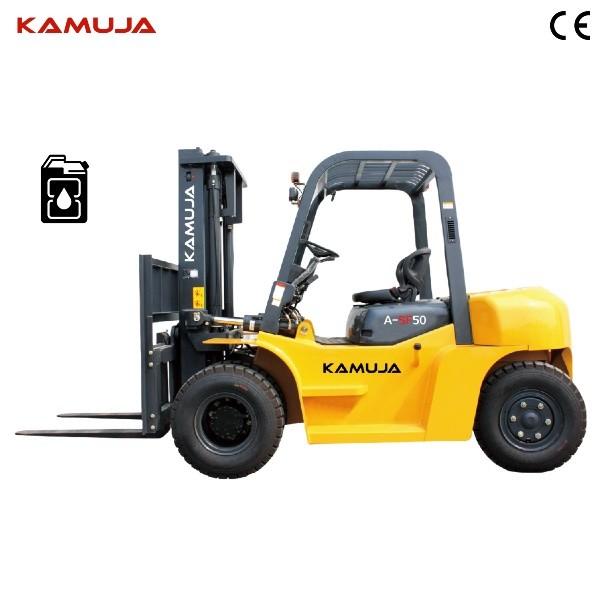

ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height
ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height
ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height
ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height
ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height
ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height
Specifications
Brand Name :
KAMUJA
Model Number :
A-SF50
Certification :
CE
Place of Origin :
China
MOQ :
1 UNIT
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Price :
USD 25K-40K/ UNIT
Packaging Details :
3 UNITS/40 HQ
Condition :
New
Power souce :
Diesel Engine
Engine :
ISUZU 6BG1
Max. lifting height :
standard 3m , options : Free II & III Mast- 3.5~8M in different costs
Fork length :
1220 mm or 1070mm
Rated loading capacity :
50000kg
Warranty :
1 year or 2000 working hours which occurs first
Description

Express.Brochure.A-SF50.pdf

5000kg/5.0 Ton Diesel , ISUZU Engine With Options for Mast A-SF50

INTRODUCTION

Inherited the high quality characteristics of KAMUJA series products.

The machine has the advantages of compact and reasonable structure, strong lifting capacity, low failure rate and good maintainability. Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment.

FEATURES

① ENGINE SYSTEM

The engine works stably and reliably, with low fuel consumption and strong power.

② HYDRAULIC SYSTEM

The dual pump design allows separate operation of the power steering and lifting units, and the hydraulic joint designed specifically for KAMUJA provides high reliability and effectively reduces the oil leakage rate.Full hydraulic load free induction steering system, easy to operate; It can ensure that the speed of goods is increased under idle conditions, so that the vehicle is more stable and reliable.

③ TRANSMISSION SYSTEM

Adopt the domestic first-class manufacturer's gearbox, transmission power is strong.

④ ELECTRICAL SYSTEM

Using the latest technology of wiring harness and waterproof plug-in, multi-channel fuse layout, safe and reliable.

⑤ CAB & CONSOLE

The cabin is spacious with premium seats for a comfortable driving experience, and the configuration's edge design can be seen from the driver's seat for optimal visibility when reversing to determine the distance.

⑥ DOOR FRAME TYPE IS AVAILABLE

Wide field of view/Level 2 Full freedom/Level 3 Full freedom

⑦ACCESSORIES ARE OPTIONGAL FOR THE JOB

Side shifter/pitch fork/roll clip/soft clip, etc

⑧APPLICABLE CONDITIONS/ENVIRONMENT

Widely used in stations, ports, airports, factories, warehouses and other occasions, is mechanized loading and unloading and short-distance transportation of efficient equipment

⑨FUEL CONSUMPTION/GREEN ENVIRONMENTAL PERFORMANCE INTRODUCTION

The vehicle has been optimized to the maximum extent, improving the operation efficiency, effectively reducing fuel consumption, energy saving and environmental protection.

⑩REPAIR AND EASE REPAIR

Special maintenance space is reserved for the car body, making subsequent maintenance more convenient. KAMUJA's perfect service network, timely and thoughtful service, is your peace of mind to use the equipment intimate guarantee


OVERALL

ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height

CAPACITY CHART

ISUZU 6BG1 Diesel Engine Forklift A-SF50 3m Lifting Height

SPECIFICATIONS

General Model A-SF50
Load capacity 5000 kg
Load center 600 m m
Power type Diesel
Dimensions Lit heighi H 3000 m m
Free ifting height H3 200 m m
Fork size 1070×125×45

1220×125×45		 m m
Mast tilt angle a/β 6/12 deg
Fort overhang K 590 m m
Overall dimensions Length to face of fork L1 4660 m m
Overall width 1995 m m
Overall height fork lowered H1 2500 m m
Overall height fork raised H2 4400 m m
Overall guard height H4 2450 m m
Tuming radius 3250 m m
Min.right angle aisle width 3000 m m
Performance Travel speed (Full/No

load)		 Walking speed 26/28 km/h
Lifting speed 500/530 km/h
Max.gradeability (Full/No load) 20/15 %
Self weight 7980 kg
Chassis Tires Front/Rear 8.25-15-14PR
Tire distance Front 1470 m m
Rear 1700 m m
Wheelbase 2250 m m
Ground clearance Rack 200 m m
Drive units

&control		 Engine Model ISUZU 6BG1
Rated output 82.4/2000 km/rpm
Rated torque 416.8/1500 N.m/rpm
No.of cylinder 6
Borexstroke 105×125 m m
Displacement 5.785 L
Torque Converter of

transmission box		 l ype Hydraulic
Shift Front and back 2/2
Working pressure 20 Mpa

※ The technical information may vary by the update policy, the changes will be without prior notice.
