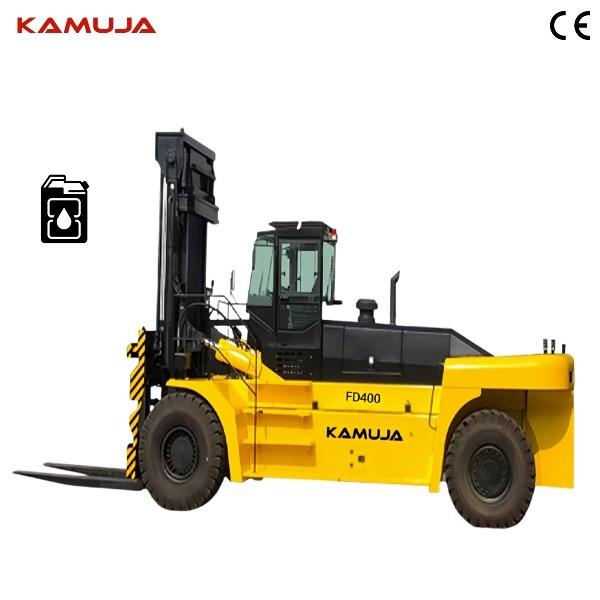

40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow
40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow
40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow
40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow
Specifications
Brand Name :
KAMUJA
Model Number :
FD400
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD 220K-300K/ UNIT
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
30 DAYS
Packaging Details :
TBD
Condition :
New
Type :
DIESEL FORKLIFT
Max. lifting height :
4m & options
Rated loading capacity :
40000kg
Warranty :
1 Year or 1000 working hours
Fork size :
2600*300*130(LxWxT)
Description


Express.Brochure.FD400.pdf
40T Heavy Duty Diesel Forklift : FD400
INTRODUCTION

Heavy duty forklift series FD, with many years of design and manufacturing experience, advanced technology. Products are widely used in logistics, stone processing, ports and terminals, and exported to foreign countries.

FEATURES

① The engine adopts a turbocharged engine with low fuel consumption,which has good power performance and large torque reserve.
② The braking system adopts the mature products of the manufacture.
The brake is a disc brake,with fast heat dissipation, light weight ,simple structure and convenient adjustment.It has good high temperature resistance performance under high load and stable braking effect.
③ The gearbox adopts domestic brand gearbox,which has good driving performance and traction performance. It is easy to maintain, economical and applicable, the accessories havegood versatility.
④ The operating system adopts the pilot valve to control the working system. Simple, convenient and comfortable operation. While reducing the labor intensity of the driver, the work efficiency is improved.
⑤Hydraulic system, double pump confluence,small system flow, low power consumption, stable performance.
⑥ The electrical system is equipped with maintenance-free batteries. Flame retardant wire and sheath, electrical components.
⑦The cab es luxurious with shock absorption, equipped with sunroof, heating and cooling air conditioner, wide field of vision and comfortable seat. With explosion-proof film, explosion-proof, heat insulation. Anti-glare, sound insulation.
⑧The fork adopts high-strength, mature products of the manufacturer, which can double the service life.
⑨Tire rim, no spoke steel rim, bear heavy load. Puncture-resistant high-strength tires.
⑩Reinforced drive axle, high-strength heavy-duty planetary wheel-side reduction drive axle.The axle housing has higher strength and greater bearing capacity.With the stability and stability.
Special Equipment for Mast
 Wide view full free Stage II Mast
 Wide field of view full free Stage III Mast
 Special fork

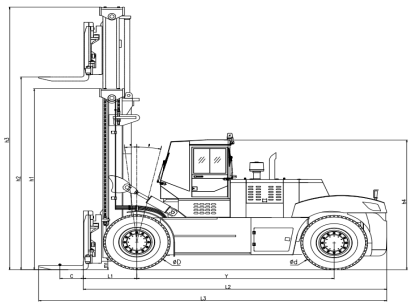

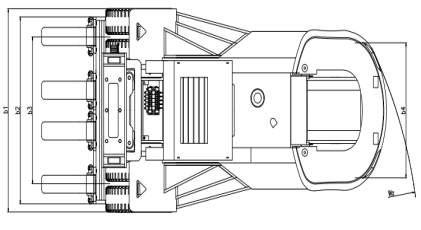

OVERALL
40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow

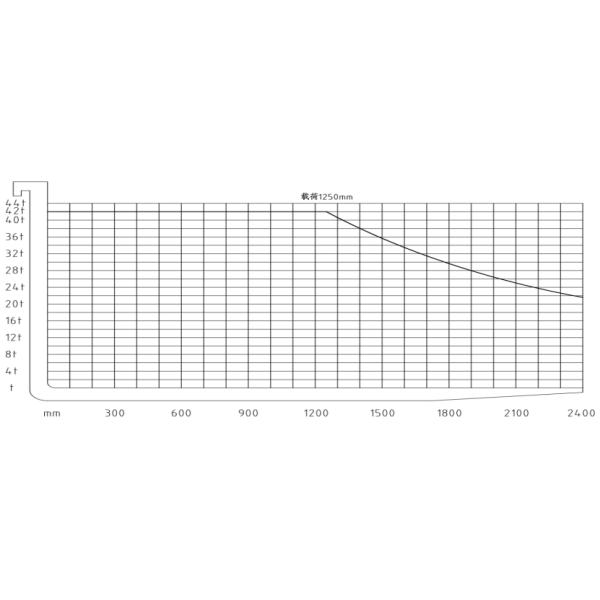

CAPACITY CHART
40T Heavy Duty Diesel Forklift FD400 Warehouse Forklift Yellow
SPECIFICATION
Item Specification Unit FD400
General Rated Load kg 40000
Load center mm 1250
Dimensions Lift Height mm 4000
Fork Size(LxWxT) mm 2600*300*130
Fork Spread(outside)(Min/Max) mm 910/2830
Mast Tilt Angle(F/R) deg 6ʺ/12ʺ
Fork Overhang mm 1180
Lenght without forks mm 8170
Overall width mm 3600
Mast Lowered Height mm 5040
Overhead Guard Height mm 3820
Outer Tuming Radius mm 7730
Performance Speed(Unload/Load) Travel Km/h 30/26
Lifting Mm/s 300
Max gradeability(Load) % 20
Max drawbar pull(Load) KN 240
Setvice Weight kg 51000
Wheels&Tires Tire Front 4*18.00-25-28PR
Rear 2*16.00-25-28PR
Tread Front mm 2495
Rear mm 2880
Wheelbase mm 5500
Ground Clearance(Under mast) mm 400

Power&Transmission

Engine

 Battery Voltage Capacity(5HR) VA/h 2*12/150
Engine Model WP12G375E350
Manufacture WeiChai
Rated Output Kw 276
Rated Torque N.m 1550
No Of Cyinder 6
Broe*Stroke mm 126*155
Dispiacement L 11.6
Transmissions Manufacture ZL80
StageFWD/RVS April 4th
Operating Pressute Mpa 21
