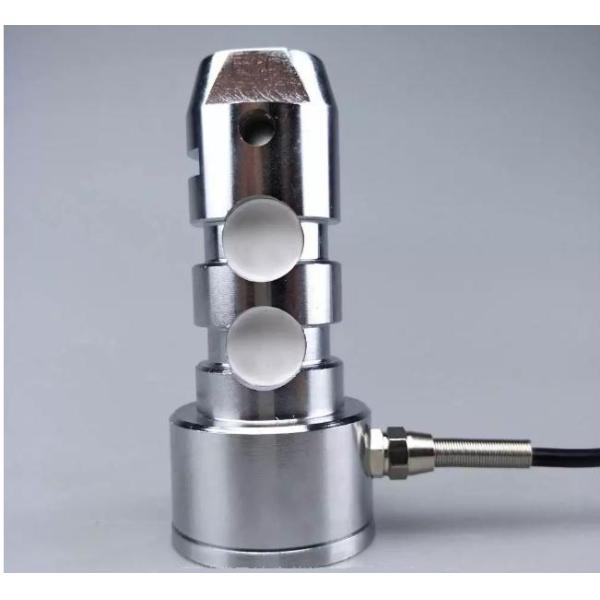

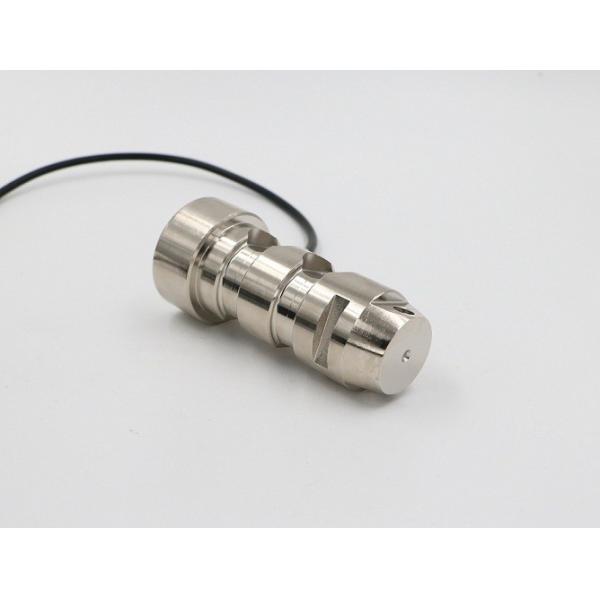

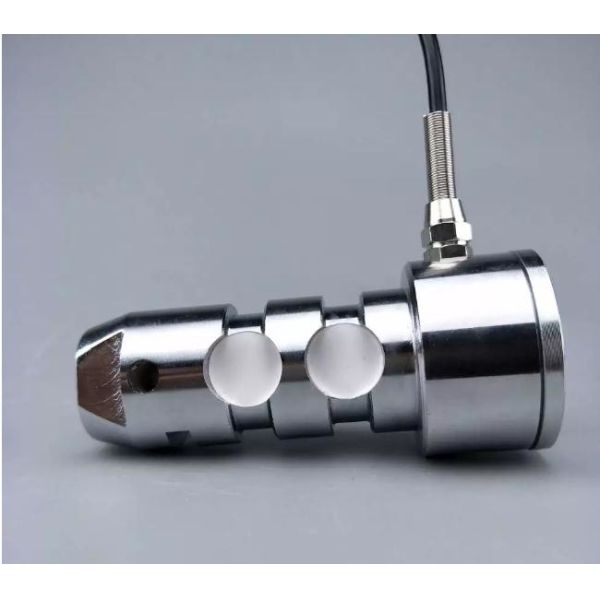

Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
Specifications
Brand Name :
TW-TECHWAY
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 Units Per Month
Delivery Time :
20 Days after advance payment
Packaging Details :
Paper Box
Cover Material :
High Strength Nylon
Voltage :
AC110V/ AC220V
Working Range :
300m and above
Frequency Channel :
250Hz/740Hz/800Hz
Description

Sensor pin/ overload protect pin/ building hoist Transducer/building hoist overload monitor

Features:

The device is light and convenient, mini shape, can be directly fixed to the sensor, can also be used as the ground operation synchronous display, the use of imported chip, the full button set convenient operation, built-in anti-interference single path, stable operation, with a password protection, automatic overload recording black box and other functions.

Stable performance, is a new generation of intelligent control instrument, is outdoor control instrument.

1 Scope of application: 0.5T ~ 5T various specifications of electric hoist single beam crane;

2 System error: less than ±3%(F•S);

3 Alarm mode: sound and light alarm;

(1) Pre-alarm point: when the lifting weight reaches 90% of the rated lifting weight, intermittent alarm sound (short sound) will be issued to show the weight of the heavy object;

(2) Rating alarm: when the lifting weight reaches the rated lifting weight, an intermittent alarm sound (long sound) will be sent out, and the yellow indicator light will light up to show the weight of the heavy weight;

(3) immediate alarm: when the lifting weight reaches 110% of the rated lifting weight, the continuous alarm sound will be sent out, the red indicator light will be on, and the delay of 2 seconds will automatically cut off the power supply of the crane lifting contactor, showing the weight of the heavy object;

4 Static strength of the sensor: the static strength of the sensor is 1.5 times of the rated load

Specifications:

Working temperature -20℃ ~ 60℃
Working temperature 45% ~ 95%
Power supply voltage AC380V, 50HZ or according to user's requirement
Relay contact capacity relay contact capacity is AC380V, 2A
Voltage withstand of the controller 2000V
Others Display mode: four LED(red) digital display weight, decimal point automatic switch

Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts

Case Show:

Intelligent Control AC110V 300m Load Pin Sensor Hoist Spare PartsIntelligent Control AC110V 300m Load Pin Sensor Hoist Spare PartsIntelligent Control AC110V 300m Load Pin Sensor Hoist Spare PartsIntelligent Control AC110V 300m Load Pin Sensor Hoist Spare Parts
