Specifications
Brand Name :
TW-TECHWAY
Model Number :
SC200
Place of Origin :
China
MOQ :
1Unit
Price :
18,800USD~80,000 USD per Unit
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
60 Days after advance payment
Packaging Details :
Nude in Container, 40'HQ
Certification :
CE
Steel Pipe :
Q345B High Strength Steel
Rated Load :
2000kg
Rated Speed :
30m/min
Max. Installation Hight :
250m
Max. Passenger No. :
30
Treatment :
Hot Dip Galvanization+Painting
Wall Panel :
Punched Aluminium Panel
Description

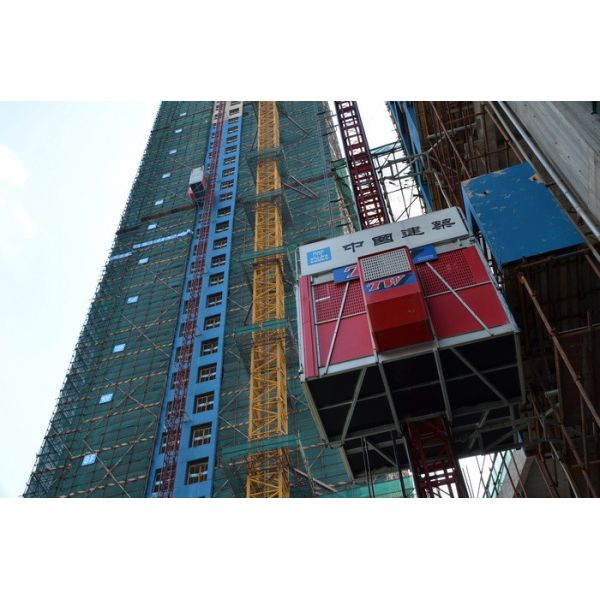

SC hoist is vertical transport machinery for building materials and personnel, driving with pinion and rack, applies to engineering of high rise. SC hoist is equipped with reliable electrical and mechanical safety device. It is an efficient and safety vertical transporting equipment.

The hoist can be installed and disassembled very easily and can also be heightened with the constant increase of building, According to customers' requirements, the cage can be single or double. The single cage building hoist can become a double cage building hoist by adding one cage and other components. The payload can be doubled if equipped with counterweight to meet different customers' requirements. The product has following features:

1. High Efficiency Buidling Hoist for People & Materials for high rise buildings

2. Fully hot dip galvanized cage frame & spare parts

3. Full Set of Safety Devices

4. Cost saving

5. Free easy wearing parts Plus One Year Warranty

Specifications:

Model SC200
Loading capacity0 2000KG
Rated speed 30m/min fixed speed
Motor & Gear Box 2x11kw Bevel Heicial Gearbox
Inverter 37kw
Mast section size 650*650*1508mm ( paiting / hot galvanized)
Cage size 3.2x1.5x2.1m
Safety device SAJ40-1.2
Hot galvanize parts Mast section/trolley
Counter weight no

Case Show:
