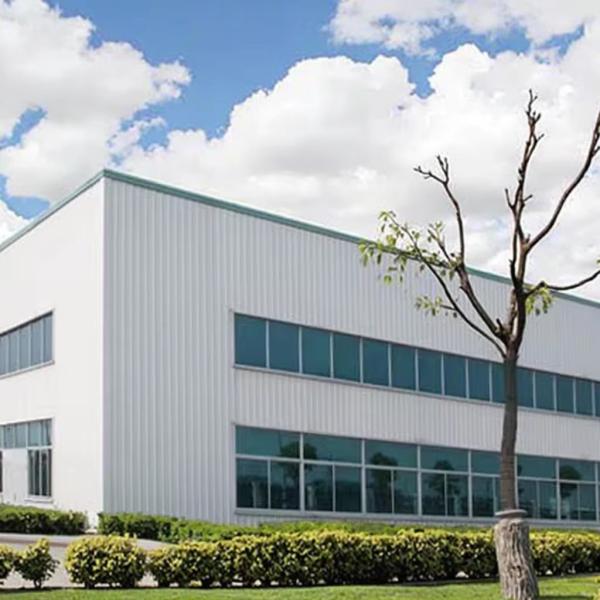

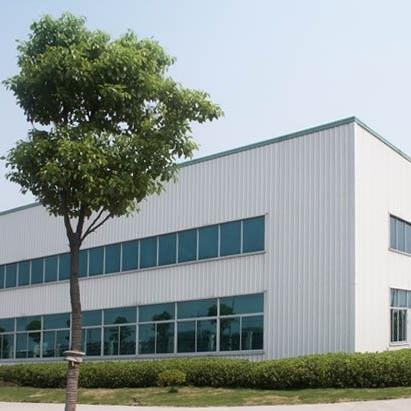

Hurricane Proof Prefabricated Metal Warehouse , Modern Steel Construction Factory Building

Specifications

Brand Name :

Lanjing

Model Number :

LANJING-1

Certification :

ICR Polska/VC/HS221231

Place of Origin :

China

MOQ :

1000sqm

Price :

1000-1500 Square Meters $45-50；1500-2000 Square Meters $42-45；2000-3000 Square Meters $40-42；

Payment Terms :

Supply Ability :

30000T/year

Delivery Time :

30-45 days

Building :

Prefabricated Steel Structure

Secondary Frame :

Hot Dipped Galvanized Purlin

Processing Service :

Bending, Welding

Surface Treatment :

Painted/Galvanized

Roof Cladding :

Corrugated Steel Sheet/Sandwich Panel

Sail Finishing :

PVDF/PTFE, Pvc Coated

Certifications :

ISO 9001, CE

Frame :

Weld steel structure frame

Description

Product Details

Specification

 In contrast to traditional buildings, steel structure buildings offer a modern design where the entire framework is constructed from steel. The structure mainly consists of steel beams, columns, trusses, and other components made from structural steel and steel plates. These parts are joined together using welding, bolts, or rivets. Steel structures, with their lightweight and efficient design, are commonly used in large factories, stadiums, skyscrapers, and other applications. The main types of steel building structures include portal rigid frames, frame structures, truss structures, and grid systems.Characteristics and Uses of Common Steel Building Structures:Portal Frame Structure: This design features a straightforward load distribution and a clear path for force transfer, allowing for faster construction. It is widely utilized in industrial, commercial, cultural, and recreational buildings, as well as public facilities.Steel Frame Structures: Steel frames offer versatility and the ability to create larger open spaces. They are frequently employed in multi-story and high-rise buildings, such as office complexes, shopping malls, convention centers, and similar structures.Steel Truss Structures: These structures use small-section tubes to form larger components, ideal for buildingsrequiring large spans or height. Steel trusses are commonly used in applications like large-span roofs, bridges, towers, and offshore oil platforms.Steel Grid Structures: A highly complex, statically indeterminate system made of interconnected rods, these structures have low stress, lightweight properties, and high rigidity. They also offer strong seismic resistance and are used in large-span roofs, such as those found in sports arenas, exhibition halls, fuel stations, and hangars.

Material Description

Main Structure	Including Column & Beam, Made of welded H section Steel, Steel Grade Q355B/Q235B
	Column & Beam Connection: High Strength Bolt
	Column & Foundation Connection: Pre-embedded Anchor Bolt
Secondary Structure	Roof Purlin & Wall Purlin: C-shape or Z-shape Steel
	Knee Brace: Angle Steel
	Brace: Steel Rod
	Tie Bar: Steel Pipe

Types of wall panels and roof panels	Applicable Regions and Scenarios
Color Steel Sheet	Areas without winter, preferred for processing workshops and warehouses
Color Steel Sheet & Fiberglass Roll Insulation	Areas with winter but with low requirements of temperature , preferred for warehouses and workshops
Insulated Sandwich Panel	Workshops and warehouses with temperature requirements
PU Insulated Sandwich Panel	Workshops, warehouses and public facilities with high requirements of temperature for the working environment

Product packaging

FAQ

1. What kind of customer service do you provide?
We offer comprehensive customer service, including basic design,supporting facilities procurement, and the option to dispatch installation guidance.

2. How about the customer reviews of your company?
We are proud to have received consistently high five-star reviews from our customers, which stand as a testament to our commitment to quality and service.

3. What is your quality inspection process like?
Our strict quality inspection process ensures that every product meets the highest standards of excellence. From raw materials to finished goods, each stage is meticulously inspected to guarantee superior quality.

4. Can you send engineers or a whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as an installation director or a team upon request.

5. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

6. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial buildings like office mansions, super markets, auto dealer shops, shipping malls, 5-star hotels.

7. What is the delivery time?
Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 40 days after
receiving the deposit.

8. How can I get a quotation for my projects?
You can contact us by email, phone, Alibaba Trade manager and so on 24*7 and you will get a reply within 8 hours.

9. What certifications has your company passed?
Our company has passed professional certifications such as IOS9000, CE, and SGS, ensuring that our products and services meet international standards.
