Specifications
Brand Name :
SPDAR , HONGFA
Model Number :
5000smq/ set
Place of Origin :
DONGGUAN, GUANGDONG, CHINA
MOQ :
20tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 metric ton/month
Delivery Time :
15~45days
Packaging Details :
Packed in a iron holder and then by a container, normally 15tons ~25tons per 40HQ container, loading quantity according to member's shape and length
Certification :
ISO
Steel material standard :
Q235B/Q345B;
Main Structure Parts :
Welded 6mm~25mm thickness H beams & Round pipes
Bracing Parts :
2.5mm thickness Galvanized C purlins & Steel Angles
Surface Treatment :
Red primer + Grey paint Surface
Clading Systerm :
Colored Steel Sheet and FRP Lighting Tiles
Drainage System :
Galvanized water gutter & PVC Down Pipe
Accessories :
High Strength Bolt & Self-tapping Screw
Loading :
By 40 HQ Contianer
Usage :
Storage & Workshop
Type :
Portal Frame
Description

Q345B Light Steel Structure Fruit Storage / Grey Paint / Poultry Farm Structure

1. General Description

Poultry Farm Structure /Q345B Light Steel Structure Fruit Storage use pre-fabricated steel H beams to build the main steel frames and use galvanized C & Z beams as the roof and wall purlin, cladding systerm can do the glass curtain wall , or aluminum curtain wall or use colored steel wall and roof , or can use FRP light tiles.
Quick to fabricate,Easy to assemble,
Long using time over 50 years,
Low cost and maintenance,
Environment friendly,
Recyclable,
Lighter weight,
Excellent anti-shock and anti-impact ability.

2. Material Specification Datas for reference

Farm Buildings And Structures For Supermarket -Vegetable And Fruit


3.Process method

CNC Steel plate cutting---- H Shape Forming ------ Welding By ARC Soldering Machine---- Straight/ Shape Fixing --- Joint Steel plate weld by manual--- Sand-blasting---- Paint Treatment Step----Loading Packing

4.Loading & Installation for reference

Loaidng in factory


Farm Buildings And Structures For Supermarket -Vegetable And Fruit





















Loading at the project site


Farm Buildings And Structures For Supermarket -Vegetable And Fruit

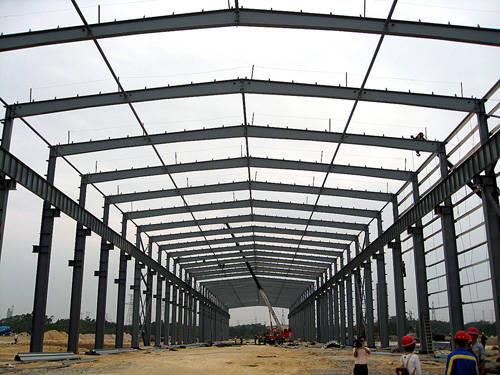

Installation at job site

Farm Buildings And Structures For Supermarket -Vegetable And Fruit





5. Before sales service

We have professional engineer teams to make the structural drawing and building drawing according to customer's requirements.
If you are planing to build a Garage Steel Frame Building, please send your requirements to me, and then we can give you the best solution.

We will give you professional technical solution if you can fill this for and contact with us by e-mail, fax or tel which listed at the bottom of this form.

Compay Name:
Client 　 Tel/Fax: 　 E-mail: 　
Building Basic Information
Project: 　 Project No.: 　
Location 　 Building Usage 　 　 Total area 　
Length
(m)		 　 Width
(m)		 　 Eave Height
(m)		 　
Roof material 　
Wall material 　
Design Load and Meteorological Conditions
Wind load
(kn/m2)		 　 Wind speed
(m/sec)		 　 Snow load
(kn/m2)		 　
Rainfall
Capacity		 　 Earthquake Grade 　
Please fill out the below information if your building has the mezzine
Height of Mezzanine(m) 　 Usage of mezzanine 　
Live load on mezzanine(kn/m2) 　
Please fill out the below information if your building has the crane
Capacity
(t)		 　 Span
(m)		 　 Quantity 　
Hoisting height (m) 　 Other information about crane 　
Building sketch


6. After- Sales

We can offer you the whole set installation drawings for assembly conduction.

Also we have professional installation teams, if you need , we can offer the installation engineers to help you to conduct the whole buildings installation.
