High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
High Strength H Section Garage Steel Frame Galvanized C Purlins
Specifications
Brand Name :
SPDAR
Model Number :
84x(12+24)m x 7.0m =3024sqm
Place of Origin :
DONGGUAN, GUANGDONG, CHINA
MOQ :
20tons
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 metric ton/month
Delivery Time :
15~45days
Packaging Details :
Packed in a iron holder and then by a container, normally 15tons ~25tons per 40HQ container, loading quantity according to member's shape and length
Certification :
ISO, BS, ASTM
Steel material standard :
Q235B/Q345B;
Main Structure Parts :
Welded 6mm~25mm thickness H beams & Round pipes
Bracing Parts :
2.5mm thickness Galvanized C purlins & Steel Angles
Surface Treatment :
Grey Paint
Clading Systerm :
Colored Steel Sheet and FRP Lighting Tiles
Drainage System :
Galvanized water gutter & PVC Down Pipe
Accessories :
High Strength Bolt & Self-tapping Screw
Loading :
By 40 HQ Contianer
Project Site :
Philippines
Steel Quantity :
160 metric tons
Description

High Strength H Section Garage Steel Frame Galvanized C Purlins

Part details As following:

Main Steel Frame Column Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section
Beam Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section
Secondary Frame Purlin Q235/Q345/ G450 C and Z purlin
Knee brace Q235B Angle Steel
Tie Rod Q235B Circular Steel Pipe
Brace Q235B Round Bar
Vertical and Horizontal Support Q235B Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 120kg/Sq.m (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Finishing Options Vast array of colors and textures available
Paint Options Zinc rich epoxy painting, one primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

1. General Description

Garage Steel Frame /Steel Structure Shop and warehouse use pre-fabricated steel H beams to build the main steel frames and use galvanized C & Z beams as the roof and wall purlin, cladding systerm can do the glass curtain wall , or aluminum curtain wall or use colored steel wall and roof , or can use FRP light tiles.


Quick to fabricate,Easy to assemble,


Long using time over 50 years,


Low cost and maintenance,

Environment friendly,


Recyclable,


Lighter weight,


Excellent anti-shock and anti-impact ability.

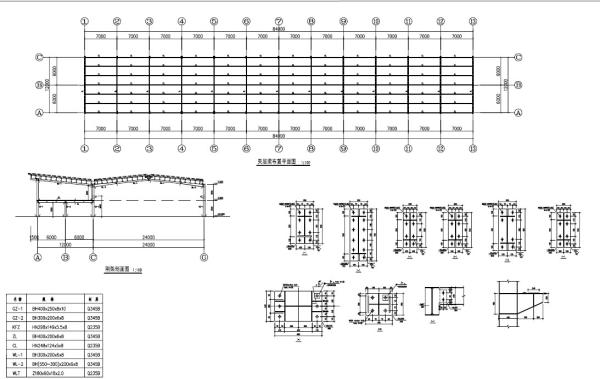

2. Material Specification Datas for reference

High Strength H Section Garage Steel Frame Galvanized C Purlins


3. Process method

CNC Steel plate cutting---- H Shape Forming ------ Welding By ARC Soldering Machine---- Straight/ Shape Fixing --- Joint Steel plate weld by manual--- Sand-blasting---- Paint Treatment Step----Loading Packing

4.Loading & Installation for reference

Loaidng in factory
High Strength H Section Garage Steel Frame Galvanized C Purlins
Loading at the project site


High Strength H Section Garage Steel Frame Galvanized C Purlins
Installation at job site

High Strength H Section Garage Steel Frame Galvanized C Purlins
5. Before sales service

We have professional engineer teams to make the structural drawing and building drawing according to customer's requirements.
If you are planing to build a Garage Steel Frame Building, please send your requirements to me, and then we can give you the best solution.

BUILDING INFORMATION FORM
We will give you professional technical solution if you can fill this for and contact with us by e-mail, fax or tel which listed at the bottom of this form.
Compay Name:
Client 　 Tel/Fax: 　 E-mail: 　
Building Basic Information
Project: 　 Project No.: 　
Location 　 Building Usage 　 　 Total area 　
Length
(m)		 　 Width
(m)		 　 Eave Height
(m)		 　
Roof material 　
Wall material 　
Design Load and Meteorological Conditions
Wind load
(kn/m2)		 　 Wind speed
(m/sec)		 　 Snow load
(kn/m2)		 　
Rainfall
Capacity		 　 Earthquake Grade 　
Please fill out the below information if your building has the mezzanine
Height of Mezzanine(m) 　 Usage of mezzanine 　
Live load on mezzanine(kn/m2) 　
Please fill out the below information if your building has the crane
Capacity
(t)		 　 Span
(m)		 　 Quantity 　
Hoisting height (m) 　 Other information about crane 　
Building sketch 　 　 　 　 　 　 　


6. After- Sales

We can offer you the whole set installation drawings for assembly conduction.

Also we have professional installation teams, if you need , we can offer the installation engineers to help you to conduct the whole buildings installation.
